  Cebek Electronic Kits
Cebek Home Alarm Centre


Cebek Home Alarm Centre

Specifications:
Reference AL-1

Entry Time 10 - 30sec
Exit Time 15sec
Alarm ON Time 3min
Relay Output SPCO 2A
Consumption (Max) 60mA
Power Supply 12VDC
Dimensions 105 X 45 X 30mm
Weight g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7566 >

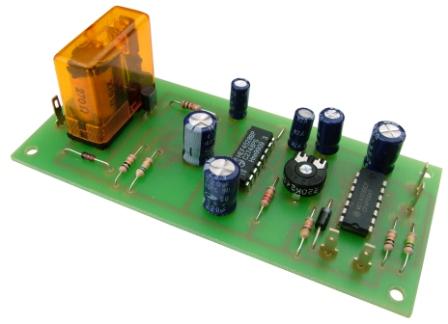

Cebek AL-1 is a simple alarm module for use in a vehicle or building. It has one zone, which requires the circuit to be broken to activate relay. The output will stay active for 3 minutes after the alarm has been "set off". The exit time is set at 15 seconds but the entry time can be adjusted between 10 and 30 seconds.

Related Products::
Power Supply FE-2



Order Code   Each
AL-1 Cebek Home Alarm Centre 14.08
