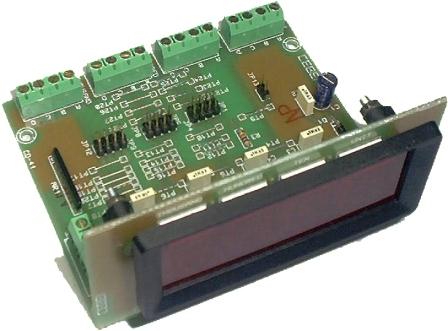

Cebek Screen with 4 Displays for BCD Modules


Cebek Screen with 4 Displays for BCD Modules
Specifications:
Reference CD-41
Range 0 -9999
Consumption 100mA
Power Supply 12VDC
Dimensions 100 x 97 x 55mm
Weight 136g
Technical Information > Download the Handbook for full specifications and applications
The Cebek CD-41 module is a BCD display module with outputs to drive Cebek BCD display modules. The input is displayed on the 4-digit 7-segment display and decoded BCD outputs appear at the rear connections. After these connections, on the Latch input, (multiplexed), each time you place one of these inputs on the positive, the BCD value registered at the input will be displayed on the corresponding display. Therefore, you could direct the BCD input to the display (or displays) that you wish.. The CD-41 accept the control from the CD-14, CD-16 and CD-17 modules.
This Display can be controlled by the following Control modules
Up/Down Counter CD-12
Up/Down Counter CD-14
Control Keyboard CD-17


Related Products::
Power Supply FE-103


Order Code   Each
CD-41 Cebek Screen with 4 Displays for BCD Modules 29.36
