Cebek Symmetrical 5VDC Power Supply 500mA



Cebek Symmetrical 5VDC Power Supply 500mA

Specifications:
Reference FE-8

Output ±5VDC@500mA
Ripple 10mV
Power Supply 230VAC
Dimensions
PCB 93 x 56 x 25mm
Transformer
Weight 82g
Technical Information > Download the Handbook for full specifications and applications

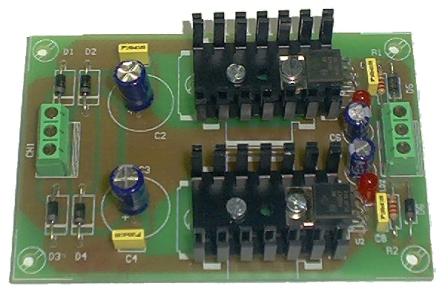

The Cebek FE-8 module is a dual rail 5VDC stabilized power supply. Offering one 5V+ positive rail and one 5V- negative rail. It can deliver a maximum of 500mA, they are fully regulated and short circuit protected. The FE-8 module includes connection terminals to facilitate assembly and LED'S to indicate its operating. The transformer is also supplied and included with this module.

Related Products::




Order Code   each
FE-8 Cebek Symmetrical 5VDC Power Supply 500mA 19.31
