Multiturn Cermet Presets

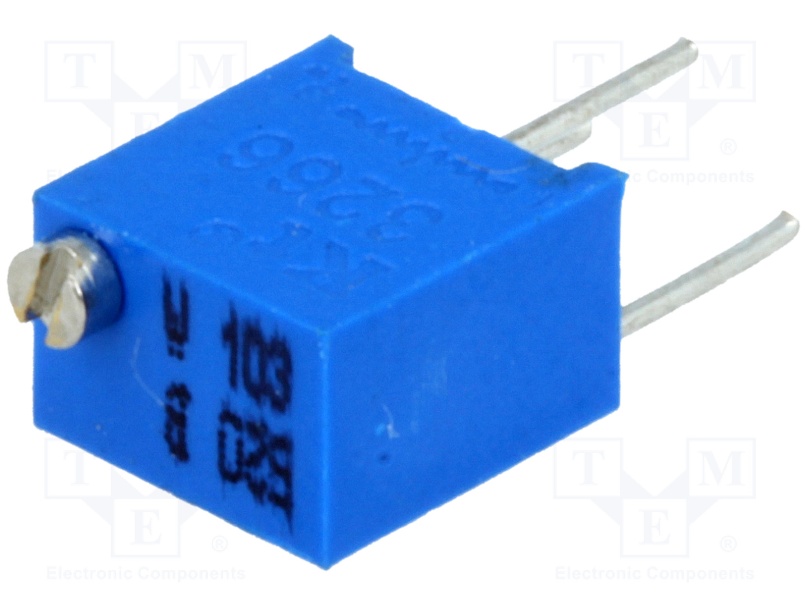

¼" Square - Top Adjust
Miniature multiturn cermet presets
Specifications:

Resistance Range

100Ω to 100k
Tolerance ±10%

Operating Temperature Range

-55ºC to 125ºC
Power Dissipation 0.25W @85ºC
Working Voltage 200Vdc
Number of Turns 15
End Resistance 2Ω Max

Miniature multiturn cermet presets housed in a sealed moulded case. Precious metal multi-finger contact for reliable and stable performance. Top adjustment screw.
Order Code   1 25+ 50+ 100+
971-110 100R (While Stocks Last) 1.09 - - -
971-120 200R 1.11 0.89 0.801 0.712
971-150 500R 1.11 0.89 0.801 0.712
971-210 1k0 1.11 0.89 0.801 0.712
971-220 2k0 1.11 0.89 0.801 0.712
971-250 5k0 1.11 0.89 0.801 0.712
971-310 10k 0.85 0.7063 0.5650 0.5085
971-320 20k 1.11 0.89 0.801 0.712
971-350 50k 1.11 0.89 0.801 0.712
971-410 100k 0.76 0.6046 0.5441 0.4837



⅜" Square - Side Adjust
Side Adjust Multiturn Preset
Specifications:

Resistance Range

200Ω to 1M
Tolerance ±10%

Operating Temperature Range

-55ºC to 125ºC
Power Dissipation 0.5W @85ºC
Working Voltage 200Vdc
Number of Turns 20
End Resistance 2Ω Max

Multiturn cermet presets housed in a sealed moulded case. Precious metal multi-finger contact for reliable and stable performance. Side adjustment screw.
Order Code   1 25+ 50+ 100+
972-120 200R 0.98 0.78 0.702 0.624
972-150 500R 0.98 0.78 0.702 0.624
972-210 1k0 0.98 0.78 0.702 0.624
972-220 2k0 0.98 0.78 0.702 0.624
972-250 5k0 0.98 0.78 0.702 0.624
972-310 10k 0.98 0.78 0.702 0.624
972-320 20k 0.98 0.78 0.702 0.624
972-350 50k 0.98 0.78 0.702 0.624
972-410 100k 0.98 0.78 0.702 0.624
972-420 200k 0.98 0.78 0.702 0.624
972-450 500k 0.98 0.78 0.702 0.624
972-510 1M0 0.98 0.78 0.702 0.624



⅜" Square - Top Adjust
Top Adjust Multiturn Preset
Specifications:

Resistance Range

100Ω to 1M
Tolerance ±10%

Operating Temperature Range

-55ºC to 125ºC
Power Dissipation 0.5W @85ºC
Working Voltage 200Vdc
Number of Turns 20
End Resistance 2Ω Max

Multiturn cermet presets housed in a sealed moulded case. Precious metal multi-finger contact for reliable and stable performance. Top adjustment screw.
Order Code   1 25+ 50+ 100+
973-110 100R 0.8117 0.6957 0.5798 0.4638
973-120 200R 0.89 0.71 0.62 0.497
973-150 500R 0.89 0.71 0.62 0.497
973-210 1k0 0.8117 0.6957 0.5798 0.4638
973-220 2k0 0.89 0.71 0.62 0.497
973-250 5k0 0.8117 0.6957 0.5798 0.4638
973-310 10k 0.8865 0.591 0.5319 0.4728
973-320 20k 0.89 0.71 0.62 0.497
973-350 50k 0.89 0.71 0.62 0.497
973-410 100k 0.89 0.71 0.62 0.497
973-420 200k 0.89 0.71 0.62 0.497
973-450 500k 0.89 0.71 0.62 0.497
973-510 1M0 0.89 0.71 0.62 0.497



¾" Rectangular - End Adjust
20 Turn Preset Potentiometer
Specifications:

Resistance Range

50Ω to 1M
Tolerance ±10%

Operating Temperature Range

-55ºC to 125ºC
Power Dissipation 0.75W @85ºC
Working Voltage 200Vdc
Number of Turns 20
End Resistance 2Ω Max

Multiturn cermet presets housed in a sealed moulded case. Precious metal multi-finger contact for reliable and stable performance. End adjustment screw.
Order Code   1 25+ 50+ 100+
974-050 50R 0.6208 0.4966 0.4469 0.3973
974-110 100R 0.6174 0.5145 0.4116 0.3293
974-120 200R 0.549 0.4575 0.366 0.2928
974-150 500R 0.57 0.456 0.4104 0.3648
974-210 1k0 0.5451 0.4543 0.3634 0.2907
974-220 2k0 0.5451 0.4543 0.3634 0.2907
974-250 5k0 0.605 0.4804 0.4324 0.3843
974-310 10k 0.6688 0.535 0.4815 0.428
974-320 20k 0.5649 0.458 0.3766 0.3013
974-350 50k 0.5979 0.4983 0.3986 0.3189
974-410 100k 0.5649 0.4708 0.3766 0.3389
974-420 200k 0.6158 0.4926 0.4433 0.3941
974-450 500k 0.5853 0.4878 0.3902 0.3122
974-510 1M0 0.549 0.4575 0.366 0.2928
