Aerial Amplifiers

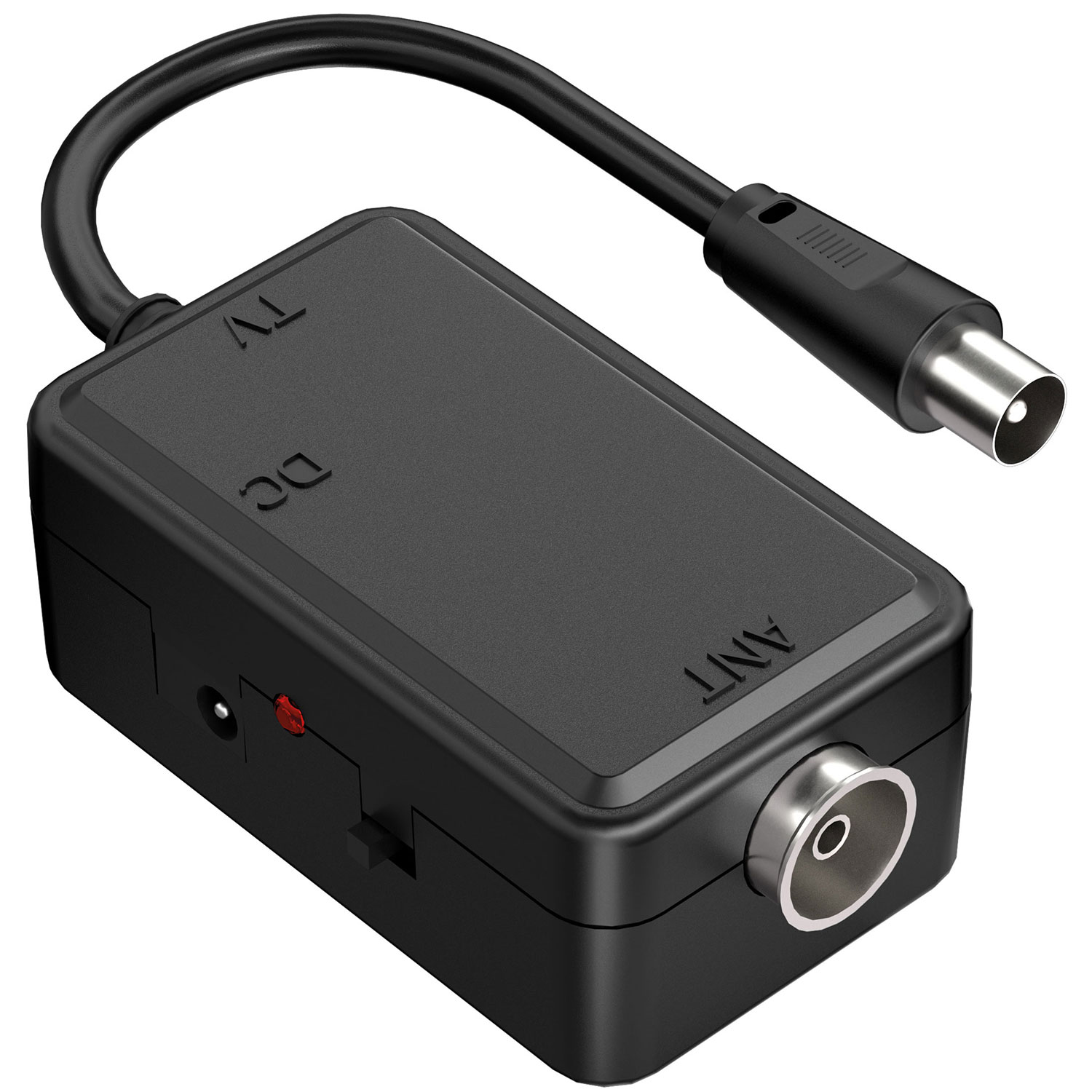

TV Aerial Amplifier
Specifications:
Frequency Range

VHF/FM/DAB 47-230MHz

UHF 47-862MHz

Gain 1-20dB variable gain
Noise Figure <5db

Dimensions mm
Weight g
Aerial amplifier designed to boost UHF or FM Radio signals to a single TV or FM/DAB tuner. Amplifier has variable gain signal boost control and uses coaxial sockets for input and output connections.
Order Code   Each
449-510 SLx 1-Way TV Aerial Amplifier 11.76

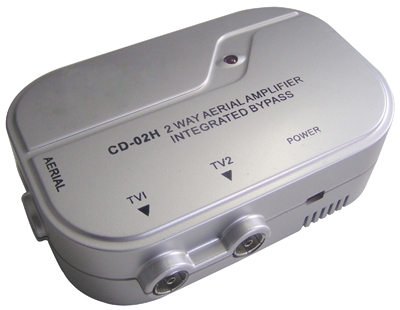

2-Way TV Aerial Amplifier
Specifications:
Frequency Range

VHF/FM/DAB 47-230MHz

UHF 47-862MHz


Gain 1-18dB variable gain
Noise Figure <3.5db

Dimensions mm
Weight g
Aerial amplifier designed to boost UHF or FM Radio signals. Separate FM and UHF inputs, 2 combined FM/UHF outlets  Amplifier has variable gain signal boost control and uses coaxial sockets for input and output connections. Also available with built in DC bypass, for use with SKY satellite receiver infra red magic eye.
Order Code   Each
449-522 SLx 2-Way TV Aerial Amplifier 10.20
449-532 SLx 2-Way TV Aerial Amplifier (IR Bypass) 12.25

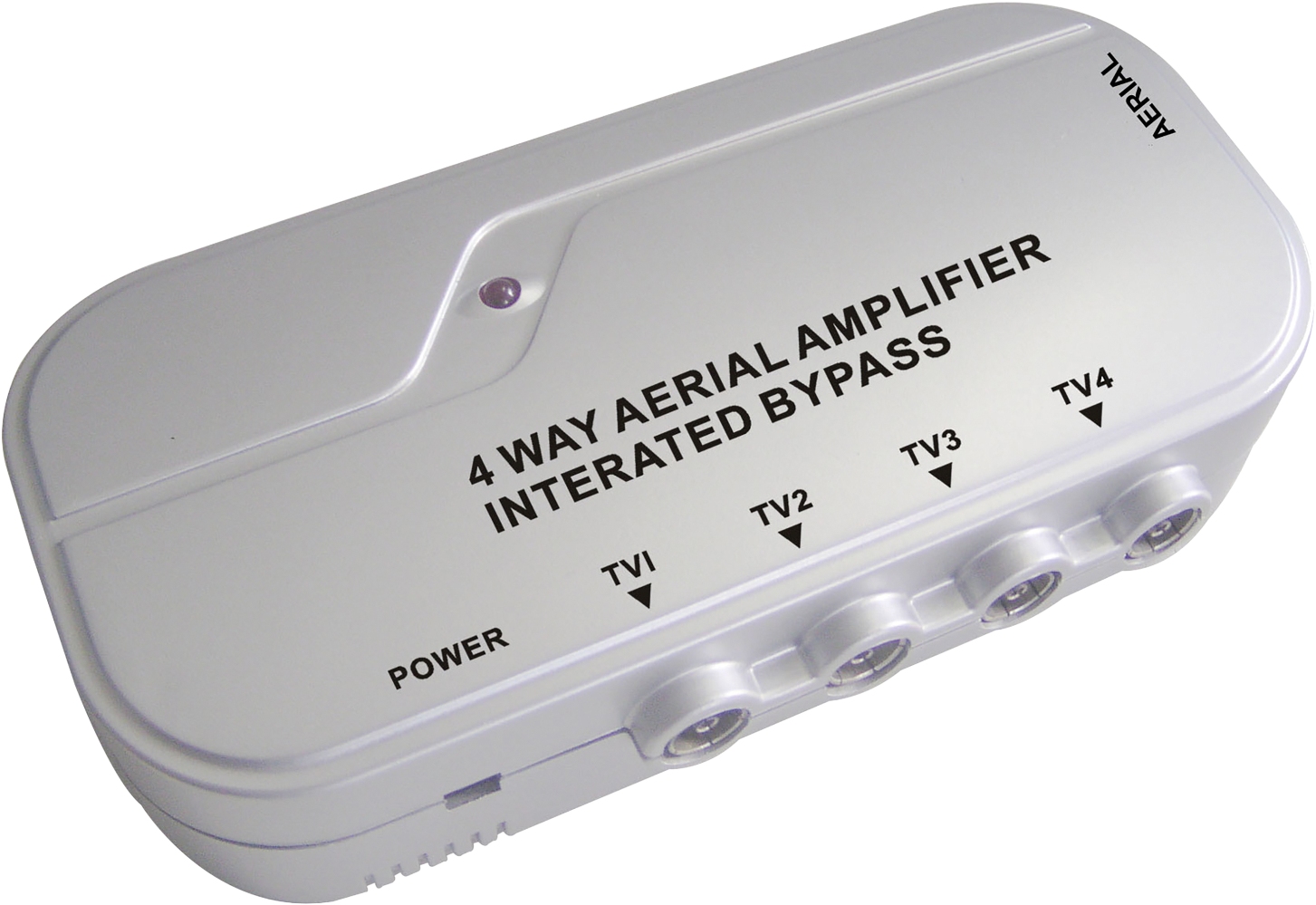

4-Way TV Aerial Amplifier
Specifications:
Frequency Range

VHF/FM/DAB 47-230MHz

UHF 47-862MHz

Gain 12dB(UHF), 9dB(VHF) gain on each port
Noise Figure <5db

Dimensions mm
Weight g
Aerial amplifier designed to boost UHF or FM Radio signals. Separate FM and UHF inputs, 4 combined FM/UHF outlets. Tuner can be connected to either of the booster outputs, uses coaxial sockets for input and output connections. Also available with built in DC bypass, for use with SKY satellite receiver infra red magic eye.
Order Code   Each
449-524 SLx 4-Way TV Aerial Amplifier 16.58
449-534 SLx 4-Way TV Aerial Amplifier (Bypass) 17.05



6-Way TV Aerial Amplifier
Specifications:
Frequency Range

VHF/FM/DAB 47-230MHz

UHF 47-862MHz

Gain 12dB(UHF), 10dB(VHF) gain on each port
Noise Figure <4db

Dimensions mm
Weight g
Aerial amplifier designed to boost UHF or FM Radio signals. Separate FM and UHF inputs, 6 combined FM/UHF outlets. Tuner can be connected to either of the booster outputs, uses coaxial sockets for input and output connections. Also available with built in DC bypass, for use with SKY satellite receiver infra red magic eye.
Order Code   each
449-526 SLx 6-Way TV Aerial Amplifier 20.98
449-536 SLx 6-Way TV Aerial Amplifier (IR Bypass) 20.25



8-Way TV Aerial Amplifier
Specifications:
Frequency Range

VHF/FM/DAB 47-230MHz

UHF 47-862MHz

Gain 12db
Noise Figure <4db

Dimensions 260 x 85 x 46mm
Weight 726g
Aerial amplifier designed to boost UHF or FM Radio signals. Separate FM and UHF inputs, 8 combined FM/UHF outlets and one full output with 18db gain. Tuner can be connected to either of the booster outputs, uses coaxial sockets for input and output connections. Also available with built in DC bypass, for use with SKY satellite receiver infra red magic eye.
Order Code   each
449-528 SLx 8-Way TV Aerial Amplifier 21.83
449-538 SLx 8-Way TV Aerial Amplifier (IR Bypass) 22.50
