Cable - Screened Audio

Small diameter single core round screened cable suitable for audio signals, ideal cable for 3.5mm jack plugs and phono (RCA) plugs. Flexible PVC sheath with copper conductors and lap screen. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-110

0.05mm²

7/0.1mm

32/0.1mm

3.0mmØ

Black

058-130

0.05mm²

7/0.1mm

32/0.1mm

4.0mmØ

Black

Order Code		Metre	Reel
058-110	Round Single Core Screened Cable 3.0mmØ	0.20	4.64
058-130	Round Single Core Screened Cable 4.0mmØ	0.24	6.75

Higher quality microphone/instrument cable with tinned conductors and lapped screen and durable PVC sheath. This cable is more suited for permanent installations, churches, clubs, factories and schools etc. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-120

0.22mm²

7/0.2mm

33/0.15mm

3.0mmØ

Black

058-128

0.22mm²

7/0.2mm

33/0.15mm

3.0mmØ

Grey

Order Code		Metre	Reel
058-120	1-Core Screened Black Signal Cable 3.0mmØ	0.29	9.50
058-128	1-Core Screened Grey Signal Cable 3.0mmØ	0.29	9.50

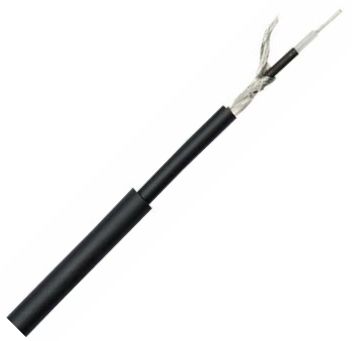

Dap Audio LC-126 is a high quality single core round screened cable suitable for all unbalanced applications. Highly flexible PVC sheath with oxygen free copper conductors, conductive plastic and copper screen. Suitable for guitar leads and instrument cables (100m reel)

Order Code	Ref	Capacity Inner Conductor	Strands	Screen	Size	Jacket Colour
058-140	LC-126	65pf/m	7/0.2mm	50/0.14mm	6.0mmØ	Black
058-142	LC-126	65pf/m	7/0.2mm	50/0.14mm	6.0mmØ	Red
058-146	LC-126	65pf/m	7/0.2mm	50/0.14mm	6.0mmØ	Blue

Order Code		Metre	Reel
058-140	Dap Audio LC-126 Black Signal Cable 6.0mmØ	0.79	42.65
058-142	Dap Audio LC-126 Red Signal Cable 6.0mmØ	0.79	42.65
058-146	Dap Audio LC-126 Signal Cable 6.0mmØ	0.79	42.65

Very small 2 core individual screened cable in "figure of 8" format. Stranded copper conductors, lap copper screens and overall PVC sheath. General purpose audio cable ideal for stereo 3.5mm jack plugs - RCA plugs. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-210

0.05mm²

10/0.1mm

32/0.1mm

3.8 x 1.9mm

Black

Order Code		Metre	Reel
058-210	Black Figure 8 Screened Audio Cable 3.8 x 1.9mm	0.32	11.54

Standard 2 core individual screened cable in "figure of 8" format. Stranded copper conductors, lap copper screens and overall PVC sheath. General purpose audio cable. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-220

0.1mm²

13/0.1mm

32/0.1mm

5.4 x 2.7mm

Black

Order Code		Metre	Reel
058-220	Black Figure 8 Screened Audio Cable 5.4 x 2.7mm	0.39	12.60

High quality fig-8 screened cable with tinned conductors and lap screen, with a durable PVC sheath. Suitable for many audio applications, can also be used for fixed installations where the cable is usually permanently installed.

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-230

0.22mm²

7/0.2mm

32/0.15mm

6.0 x 2.8mm

Black

058-238

0.22mm²

7/0.2mm

32/0.15mm

6.0 x 2.8mm

Grey

Order Code		Metre	Reel
058-230	Black Screened Fig 8 Signal Cable 6.0 x 2.8mm	0.46	21.35
058-238	Grey Screened Fig 8 Signal Cable 6.0 x 2.8mm	0.46	21.35

Dap Audio AV-8. High quality fig-8 screened cable with oxygen free copper conductors and lap screen, with a durable Blue PVC sheath. Suitable for many audio and video applications, can also be used for fixed installations where the cable is usually permanently installed

Order Code	Ref	Capacitance	Strands	Screen	Size	Jacket Colour
058-240	AV-8	160pf/m	20/0.12mm	32/0.12mm	4.0 x 2.0mm	Blue

Order Code		Metre	Reel
058-240	Dap Audio AV-8 Screened Cable 4.0 x 2.0mm	0.90	37.76

Highly flexible Figure 8 screened cable manufactured with Oxygen Free Copper OFC and has a braided copper screen with aluminium foil screen. Suitable for making high quality audio/video interconnects with metal bodied RCA plugs and sockets.

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-260

0.31mm²

40/0.1mm

112/0.1mm

12.0 x 6.0mm

Black

Order Code		Metre	Reel
058-260	Black Screened Fig 8 Signal Cable 12.0 x 6.0mm	0.99	43.14

High quality two core round screened cable suitable for microphones and instruments, fits stereo 3.5mm jack plugs and sockets. Highly flexible PVC sheath, copper conductors and lap screen. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-305

0.05mm²

7/0.1mm

50/0.1mm

4.0mmØ

Black

Order Code		Metre	Reel
058-305	Round 2-Core Black Screened Cable 4.0mmØ	0.37	11.50

Standard 2 core screened cable suitable for low impedance balanced microphone applications. Stranded copper conductors with coded insulation. Foil screen overlaid with a lap copper screen and PVC sheath (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-320

0.22mm²

7/0.2mm

Lap

5.0mmØ

Black

Order Code		Metre	Reel
058-320	Round 2 core black screened cable 5.0mmØ	0.45	19.70

High quality two core round screened cable suitable for all balanced signal requirements, microphones and instruments etc. Highly flexible PVC sheath with oxygen free copper conductors and lap screen. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-340

0.16mm²

20/0.1mm

51/0.1mm

6.5mmØ

Black

Order Code		Metre	Reel
058-340	Screened Black Signal Cable 6.5mmØ	0.59	21.32

High quality microphone/instrument cable with tinned conductors and lapped screen plus cotton infill and durable PVC sheath. This is ideal cable for any permanent installation in churches, clubs, factories and schools etc. (100m reel)

2-Core Round Installation Screened Cable

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-310

0.22mm²

7/0.2mm

62/0.15mm

5.0mmØ

Black

058-318

0.22mm²

7/0.2mm

62/0.15mm

5.0mmØ

Grey

Order Code		Metre	Reel
058-310	Black 2-Core Screened Signal Cable 5.0mmØ	0.55	21.24
058-318	Grey 2-Core Screened Signal Cable 5.0mmØ	0.55	22.25

High quality twin core round microphone or instrument cable, tinned conductors and braided screen plus cotton infill with a durable PVC sheath. This is ideal cable for any permanent installation in industrial environments, factories, offices and shops. (100m reel)

Order Code

Ref

Cross Sectional

Area

Strands

Screen

Size

Jacket Colour

058-338

0.5mm²

16/0.2mm

112/0.12mm

6.3mmØ

Grey

Order Code		Metre	Reel
058-338	Grey 2-Core Braided Screened Signal Cable 6.3mmØ	0.77	34.00

IMG Stage Line MLC-52 screened signal cable. High quality very flexible, round 2-core oxygen free copper cable with braided screen. The cable has three cotton fillers to help maintain the circular shape even under the most arduous stage conditions, ideal for microphone leads. This cable is only available on 50m coils

Order Code	Ref	Cross Sectional Area	Capacitance	Screen	Size	Jacket Colour
058-360	MLC-52	0.22mm²	110pf/m	Braid	6.5mmØ	Black
058-362	MLC-52	0.22mm²	110pf/m	Braid	6.5mmØ	Red
058-366	MLC-52	0.22mm²	110pf/m	Braid	6.5mmØ	Blue

Order Code		Coil
058-360	IMG Stage Line MLC-52 Black 2-Core Flexible Screened Cable	29.12
058-362	IMG Stage Line MLC-52 Red 2-Core Flexible Screened Cable	29.12
058-366	IMG Stage Line MLC-52 Blue 2-Core Flexible Screened Cable	29.12

Dap Audio MC-216 high quality 2-Core screened cable with spiral wound screen and cotton fillers to maintain cable shape and strength. Manufactured from a rubbery like PVC which gives it a high degree of flexibility. Suitable for use with all jack and XLR connectors, this cable is our most popular cable used by theatres, musicians and production companies. (100m reel

DAP Audio Black Screened Cable

DAP Audio Red Screened Cable DAP Audio Yellow Screened Cable

DAP Audio Green Screened Cable DAP Audio Blue Screened Cable

Order Code	Ref	Capacity Inner Conductor	Strands	Screen	Size	Jacket Colour
058-370	MC-216	60pf/m	28/0.1mm	83/0.12mm	6.0mmØ	Black
058-372	MC-216	60pf/m	28/0.1mm	83/0.12mm	6.0mmØ	Red
058-374	MC-216	60pf/m	28/0.1mm	83/0.12mm	6.0mmØ	Yellow
058-375	MC-216	60pf/m	28/0.1mm	83/0.12mm	6.0mmØ	Green
058-376	MC-216	60pf/m	28/0.1mm	83/0.12mm	6.0mmØ	Blue

Order Code		Metre	Reel
058-370	Dap Audio MC-216 Black 2-Core Flexible Screened Cable	0.89	43.32
058-372	Dap Audio MC-216 Red 2-Core Flexible Screened Cable	0.89	43.32
058-374	Dap Audio MC-216 Yellow 2-Core Flexible Screened Cable	0.89	43.32
058-375	Dap Audio MC-216 Green 2-Core Flexible Screened Cable	0.89	43.32
058-376	Dap Audio MC-216 Blue 2-Core Flexible Screened Cable	0.89	43.32

IMG Stage Line MLC-122 is a very high quality 2-Core oxygen free copper screened cable. The cable has a dual screening, inner screen is conductive plastic, the main screen is braided tinned copper with an aluminium foil. This is the cable which is used in our prefabricated Neutrik audio leads.
