Video Switch

VAS4 Automatic 4-Channel Switcher
Specifications:
Model VAS4
Video gain 0.8Vpp to 1.4Vpp
Video bandwidth 20MHz, ± 3dB
Crosstalk > 40dB
Auto Dwell Time 1 to 45 sec
Video Input 4 x BNC Sockets 1.0Vpp, 75 ohms
Video Output 2 x BNC Socket 1.0Vpp, 75 ohms
Power Supply 12Vdc 500mA (Not Included)
Dimensions 218 x 44 x 200mm
Weight 1.5kg
Technical Information > Download the Handbook for full specifications and applications
This video switcher has the facility to connect up to four video cameras and the unit automatically sequences from one to the next. The user selects a dwell time of between 1 and 45sec. between each camera image. The automatic sequence can be interrupted or bypassed at any time by the manual selection of one particular camera. To video outputs are provided for the connection of monitor and recorder. Suitable power supply 460-140 is available for this automatic switcher.
Order Code   each
661-895 VAS4 Automatic 4-Channel Switcher 44.60



VAS8A Automatic 8-Channel Switcher (with Audio)
Specifications:
Model VAS8A
Video gain 0.8Vpp to 1.6Vpp
Video bandwidth 20MHz, ± 3dB
Crosstalk > 50dB
Auto Dwell Time 1 to 15 sec
Video Input 8 x BNC Sockets 1.0Vpp, 75 ohms
Audio Input 8 x RCA Sockets
Video Output 2 x BNC Socket 1.0Vpp, 75 ohms
Audio Output 2 x RCA Sockets
Power Supply 12Vdc 300mA (Not Included)
Dimensions 212 x 218 x 45mm
Weight 1.4kg
Technical Information > Download the Handbook for full specifications and applications
This video switcher has the facility to connect up to eight video cameras with microphones The unit will automatically sequence from one to the next. Every camera position has an LED to indicate to the operator which image is on the monitor. The user can select a dwell time of between 1 and 15sec. between each camera image. Unused channels can be bypassed without changing the sequence or the dwell time The automatic sequence can be interrupted or bypassed at any time by the manual selection of one particular camera. Suitable power supply 460-140 is available for this switcher unit.
VAS8A Automatic 8-Channel Switcher (Rear)
Order Code   each
661-905 VAS8A Automatic 8-Channel Switcher (with Audio) 69.08



 Composite Video Switcher
Specifications:
Model SB-5440
Video crosstalk >60dB
Video distortion <0.5dB
Video bandwidth >20MHz (±0.5dB
Video Input 1 x BNC Sockets 0.8 - 1.2Vpp, 75 ohms
Video Output 8 x BNC Sockets 1.0Vpp, 75 ohms
S/N ratio 6dB
Power Supply 12Vdc 660mA (Included)
Dimensions 175 x 102 x 26mm
Weight 540g
Technical Information > Download the Handbook for full specifications and applications
The SB-5440 is a video switcher which enables 8 composite video devices to be routed to a single TV, plasma screen, video projector, etc. The Video source can be selected by push button front facia or using the IR remote.
SB-5440 (Rear)
Order Code   each
448-497 SB-5440 8:1 Composite Video Switcher with Remote Control 114.00



Specifications:
Model VD4C
Video gain 6dB
Video bandwidth 1Hz to 15Mhz, ± 3dB
Frequency Response 10Hz to 15Mhz ± 0.3dB
Video Input 4 x BNC Sockets 1.0Vpp, 75 ohms
Video Output 4 x 3 (12) BNC Sockets 1.0Vpp, 75 ohms
Power Supply DC 12V 350mA
Dimensions 212 x 218 x 45mm
Weight 1.25kg
Technical Information > Download the Handbook for full specifications and applications



Connect one or two monitors and watch 4 remote video cameras with the VAS4. The device automatically follows the switching sequence. The user selects a dwell time between 1 and 35sec. for each camera. The automatic sequence is interrupted through manual selection of 1 particular camera picture with the HOME switch. Suitable power supply 460-140 is available for this switcher unit.
Order Code   each
661-930 VD4C 4-Channel Video Distributor/Amplifier 98.55

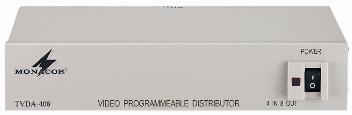

TVDA-408 Video Distributor
Specifications:
Model TVDA-408
Video Input 4 x BNC Sockets 1.0Vpp, 75 ohms
Video Output 8 BNC Sockets 1.0Vpp, 75 ohms
Power Supply 230V 50Hz 4.5VA
Dimensions 225 x 45 x 115mm
Weight 950g
A 4-Channel Video Distributor, any of the four inputs can be assignment as desired to one or all the outputs via DIP switches on the rear panel.
TVDA-408 Video Distributor (Rear)
Order Code   each
TVDA-408 4-Channel Video Distributor 53.70



 VAS4A 4-Channel Video Amplifier
Specifications:
Model VAS4A
Video gain 6dB
Video bandwidth 10Hz - 10MHz
Video Input 4 x BNC Sockets 0.8 - 1.2Vpp, 75 ohms
Video Output 4 x BNC Sockets 1.0Vpp, 75 ohms
Power Supply 12Vdc 220mA (Included)
Dimensions 138 x 84 x 28mm
Weight 240g
Technical Information > Download the Handbook for full specifications and applications
A 4-Channel Video Amplifier consisting of four separate amplifiers each with one BNC input and one BNC output. It is used for long-range video transmission (up to 1000m) over standard RG-59 coaxial cable.
Order Code   each
661-900 VAS4A 4-Channel Video Amplifier 95.32
