4mm Chassis Socket - Black 4mm Chassis Socket - Red
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder Tag
Panel Cut out 8mmØ

Subject to technical modifications.
Good quality insulated sockets suitable for use with any 4mm plug.
Order Code   1 10+ 25+
070-110 4mm Chassis Socket - Black 0.15 0.12 0.10
070-112 4mm Chassis Socket - Red 0.15 0.12 0.10



4mm Chassis Socket 10A 125Vac - Black 4mm Chassis Socket 10A 125Vac - Red
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Rating 10A 125Vac
Panel Cut out 8.2mmØ
Subject to technical modifications.
Good quality fully enclosed plastic 4mm sockets. Available in six colours.
Order Code   1 10+ 25+
070-120 4mm Chassis Socket 10A 125Vac - Black 0.21 0.18 0.14
070-122 4mm Chassis Socket 10A 125Vac - Red 0.21 0.18 0.14
070-124 4mm Chassis Socket 10A 125Vac - Yellow 0.21 0.18 0.14
070-125 4mm Chassis Socket 10A 125Vac - Green 0.21 0.18 0.14
070-126 4mm Chassis Socket 10A 125Vac - Blue 0.21 0.18 0.14
070-129 4mm Chassis Socket 10A 125Vac - White 0.21 0.18 0.14



4mm Shrouded Chassis Socket 25A - Black 4mm Shrouded Chassis Socket 25A - Red
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Rating 25A 1000Vac
Panel Cut out 12mmØ
Subject to technical modifications.
Professional quality 4mm sockets specifically for use with shrouded plugs but will accept any 4mm plug. These sockets comply with IEC1010 safety standards, available in a choice of colours.
Order Code   1 10+ 25+
070-160 4mm Shrouded Chassis Socket - Black 0.81 0.72 0.65
070-162 4mm Shrouded Chassis Socket - Red 0.81 0.72 0.65
070-164 4mm Shrouded Chassis Socket - Yellow 0.81 0.72 0.65
070-165 4mm Shrouded Chassis Socket - Green 0.81 0.72 0.65
070-166 4mm Shrouded Chassis Socket - Blue 0.81 0.72 0.65
070-169 4mm Shrouded Chassis Socket - White 0.81 0.72 0.65



4mm Low Cost PCB Socket
Specifications:
Contacts Tin Plated
Connection Solder
Rating 5A
Hole Required 5mmØ

Subject to technical modifications.
A low cost simple 4mm socket suitable for mounting directly on to a PCB.
Order Code   1 50+ 100+
070-190 4mm Low Cost PCB Socket 0.08 0.06 0.04



4mm Low Cost Terminal Post - Black 4mm Low Cost Terminal Post - Red
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Panel Cut out 8mmØ

Subject to technical modifications.
Economic 4mm binding post ideal for education or industrial applications, can be used with any 4mm plug. Available in black or red.
Order Code   1 10+ 25+
070-210 4mm Low Cost Terminal Post - Black 0.38 0.34 0.31
070-212 4mm Low Cost Terminal Post - Red 0.38 0.34 0.31



4mm High Quality Terminal Post - Black 4mm High Quality Terminal Post - Red
Specifications:
Contacts Nickel-plated
Body Metal/Plastic
Connection Solder Tag
Rating 10A
Panel Cut out 7mmØ
Subject to technical modifications.
High quality terminal post with a 2mmØ cross hole, will accept all 4mm banana plugs. Available in six colours.
Order Code   1 10+ 25+
070-220 4mm High Quality Terminal Post - Black 0.64 0.58 0.54
070-222 4mm High Quality Terminal Post - Red 0.64 0.58 0.54
070-224 4mm High Quality Terminal Post - Yellow 0.64 0.58 0.54
070-225 4mm High Quality Terminal Post - Green 0.64 0.58 0.54
070-226 4mm High Quality Terminal Post - Blue 0.64 0.58 0.54
070-229 4mm High Quality Terminal Post - White 0.64 0.58 0.54



4mm High Quality Red Terminal Post - Single washer kit - Red mounting Cup 4mm High Quality Red and Black Terminal Posts - Dual washer kit - Red/Black mounting Cups
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Rating 30A
Panel Cut out 7.2mmØ
Subject to technical modifications.
Heavy duty binding posts with a 4mm cross and top hole. Accessories available include single and dual washer kits, 4mm blanking plugs and  mounting cups. Available in black and red.
Order Code   1 10+ 25+
070-240 4mm High Quality Terminal Post only - Black 1.56 1.40 1.25
070-242 4mm High Quality Terminal Post only - Red 1.56 1.40 1.25
070-244 Single Washer Kit for Terminal Post 0.26 0.23 0.21
070-245 Dual Washer Kit for Terminal Posts 0.36 0.32 0.29
070-246 Blanking Plug for Terminal Post - Black 0.14 0.12 0.11
070-247 Blanking Plug for Terminal Post - Red 0.14 0.12 0.11
070-248 Mounting Cup for Terminal Post - Black 0.24 0.22 0.19

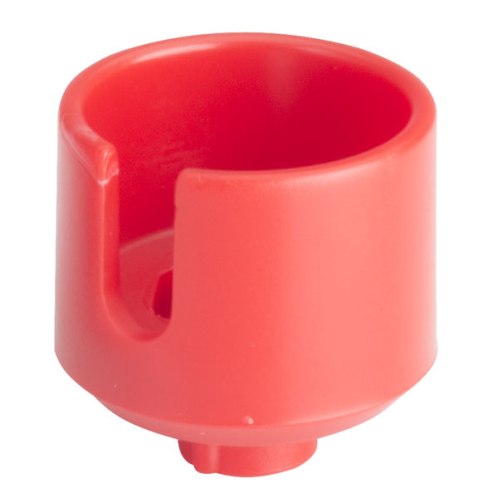

070-249 Mounting Cup for Terminal Post - Red 0.24 0.22 0.19
