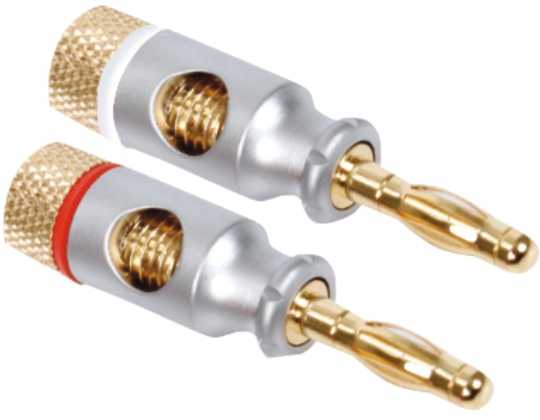

Gold Plated 4mm Connectors

Specifications:
Contacts Gold-plated
Body Metal
Connection Screw
Rating 10A
Cable Size 7mmØ
Subject to technical modifications.
High quality 4mm, with spliced contact, gold-plated high-end version, cross hole for accepting heavy duty oxygen free speaker cable. The cable setscrew has a mounting hole of Ø 4mm for accepting a further banana plug. (Supplied as a Pair)
Order Code   1 10+
071-177 Gold plated 4mm Plugs - (1 each Red/Black) 4.29 3.86

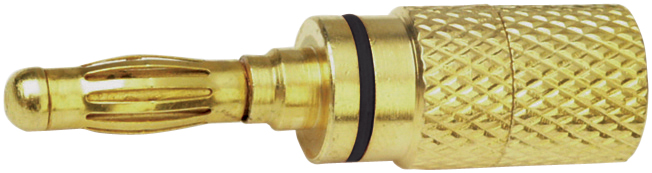

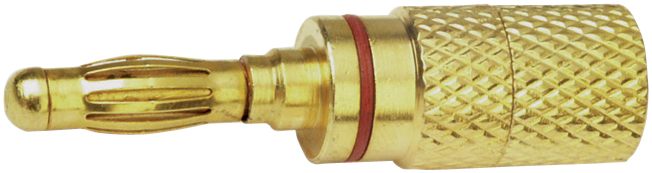

4mm Gold plated Terminal Post - Black 4mm Gold plated Terminal Post - Red
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder Tag
Fixing M6 x 15mm
Panel Cut out 6mmØ
Subject to technical modifications.
Heavy duty, gold plated insulated binding posts with solder terminal and coloured ID bands.
Order Code   1 10+
070-250 4mm Gold plated Terminal Post - Black 1.10 0.98
070-252 4mm Gold plated Terminal Post - Red 1.10 0.98

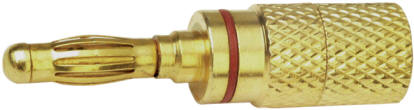

4mm Gold plated Slim line Terminal Post - Black 4mm Gold plated Slim line Terminal Post - Red
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder Tag
Fixing M6 x 26mm
Panel Cut out 6mmØ
Subject to technical modifications.
High quality 4mm binding posts, with 26mm threaded connection. 7mmØ cross hole for cable entry. Supplied with two nylon insulating bushes.
Order Code   1 10+
070-258 4mm Gold plated Slim line Terminal Post - Black 2.33 2.09
070-259 4mm Gold plated Slim line Terminal Post - Red 2.33 2.09
