Multi Pole (Plastic Body)

2 Way Plug and Socket
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry and radio controlled model battery power packs. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-682 2 Way Plug and Socket 1.28 1.07 .86



3 Way Plug and Socket
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-683 3 Way Plug and Socket 1.13 0.94 0.75



4 Way Plug and Socket (1 x 4)
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-684 4 Way Plug and Socket (1 x 4) 1.26 1.05 0.84



4 Way Plug and Socket (2 x 2)
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-685 4 Way Plug and Socket (2 x 2) 1.22 1.01 0.81

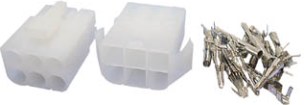

6 Way Plug and Socket (2 x 3)
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-686 6 Way Plug and Socket (2 x 3) 1.52 1.26 1.01



9 Way Plug and Socket (3 x 3)
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-688 9 Way Plug and Socket (3 x 3) 1.82 1.52 1.21



12 Way Plug and Socket (3 x 4)
Specifications:
Contacts Phosphor bronze (tin-plated)
Connection Crimp/Solder
Body Nylon UL 94V-0
Pitch 6.2mm
Current Rating 8~13A
Voltage 300VAC
Subject to technical modifications.
Multi-Pole connectors with integral latching mechanism for direct connection on to wires, ideal for cable harness wiring applications in the automotive industry. Supplied as a pair (1 female and 1 male housing) including all terminals. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-689 12 Way Plug and Socket (3 x 4) 2.47 2.05 1.64



Disk Drive Housing
Specifications:
Contacts Nickel-plated
Rating 10A
Connection Crimp/Solder
Body Plastic

Subject to technical modifications.
4-way male and female power connectors as used inside computers for disk drive power connections. (Crimp pins sold separately)
Order Code   1 25+ 50+
103-695 4 Way Female Housing - Disk Drive Connector 0.11 0.08 0.07
103-696 4 Way Male Housing - Disk Drive Connector 0.11 0.8 0.07



Male/Female crimp terminals
Specifications:
Contacts Nickel-plated
Rating 10A
Connection Crimp/Solder
Body Plastic

Subject to technical modifications.
Female and male crimp pins for disk drive power connectors. (Suitable crimping pliers 259-585)
Order Code   1 25+ 50+
103-693 Female crimp terminal - Disk Drive Connector 0.06 0.05 0.04
103-690 Male crimp terminal - Disk Drive Connector 0.06 0.05 0.04
