34 Way IDC Cable socket
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection IDC


Subject to technical modifications.

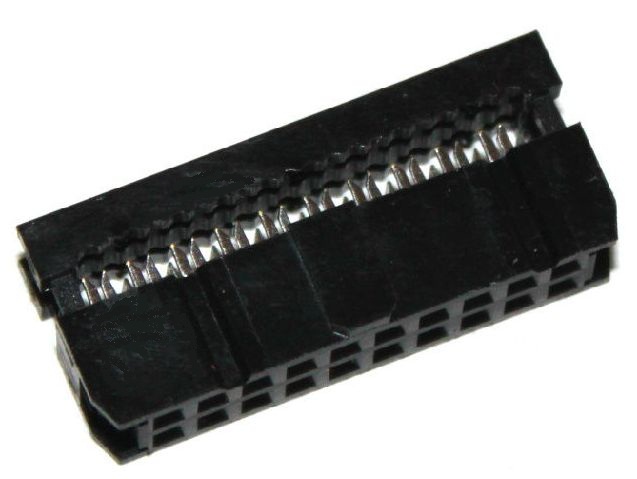

Industry standard multi-pole ribbon cable connectors. Cable mounting IDC sockets, which mate with our box and latch headers. Suitable PCB Headers are also available.
Order Code   1 25+ 50+
102-110 10 Way IDC Cable socket 0.21 0.16 0.13
102-115 14 Way IDC Cable socket 0.25 0.18 0.14
102-120 16 Way IDC Cable socket 0.31 0.27 0.20
102-125 20 Way IDC Cable socket 0.29 0.21 0.17
102-130 26 Way IDC Cable socket 0.34 0.25 0.21
102-140 34 Way IDC Cable socket 0.39 0.30 0.20
102-145 40 Way IDC Cable socket 0.51 0.39 0.26
102-150 50 Way IDC Cable socket 0.64 0.48 0.32



20 Way IDC Cable Plug
Specifications:
Contacts Gold-Plated
Body Plastic
Connection IDC


Subject to technical modifications.
Industry standard multi-pole ribbon cable connectors. Cable mounting IDC plugs.
Order Code   1 25+ 50+
102-010 10 Way IDC Cable Plug 0.52 0.47 0.42
102-015 14 Way IDC Cable Plug 0.58 0.52 0.46
102-020 16 Way IDC Cable Plug 0.63 0.50 0.45
102-025 20 Way IDC Cable Plug 0.68 0.54 0.49
102-030 26 Way IDC Cable Plug 0.70 0.63 0.56
102-040 40 Way IDC Cable Plug 0.95 0.83 0.74
102-045 50 Way IDC Cable Plug 1.12 1.01 0.90

24 Way DIL IDC Header 0.6"
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection IDC


Subject to technical modifications.
IDC Dual in Line Header (DIL). A Ribbon cable mounting header suited to inserting into an IC socket or soldering directly on to a printed circuit board.
Order Code   1 25+ 50+
101-114 14 Way DIL IDC Header 0.3" 0.51 0.34 0.31
101-116 16 Way DIL IDC Header 0.3" 0.53 0.36 0.32
101-124 24 Way DIL IDC Header 0.6" 0.90 0.60 0.54
101-140 40 Way DIL IDC Header 0.6" 1.37 0.92 0.82



34 Way Transition IDC Header
Specifications:
Contacts Gold-plated
Body Metal
Connection IDC


Subject to technical modifications.
Ribbon cable mounting 2-row connector suitable for direct connection to printed circuit board.
Order Code   1 25+ 50+
101-210 10 Way Transition IDC Header 0.42 0.34 0.30
101-214 14 Way Transition IDC Header 0.42 0.34 0.30
101-216 16 Way Transition IDC Header 0.48 0.39 0.35
101-220 20 Way Transition IDC Header 0.48 0.39 0.35
101-226 26 Way Transition IDC Header 0.39 0.31 0.28
101-234 34 Way Transition IDC Header 0.56 0.45 0.40
101-240 40 Way Transition IDC Header 0.63 0.50 0.45
101-250 50 Way Transition IDC Header 0.84 0.68 0.61



36 Way IEEE-488 (Centronics) IDC Plug
Specifications:
Contacts Gold-plated
Body Plastic
Connection IDC


Subject to technical modifications.
36-way IEEE-488 data connectors. Cable mounting plug and socket, has retaining clips. Typically used for computer and SCSI equipment.
Order Code   1 10+ 25+
105-012 36 Way IEEE-488 (Centronics) IDC Plug 1.53 1.22 1.10
105-014 36 Way IEEE-488 (Centronics) IDC Socket 2.20 1.76 1.58

36 Way IEEE-488 (Centronics) PCB Socket - R/Angled
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
PCB mounting 36-way IEEE-488 data socket.
Order Code   1 10+ 25+
105-046 36 Way IEEE-488 (Centronics) PCB Socket - R/Angled 1.10 0.99 0.88
