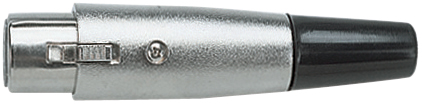

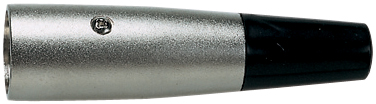

3 Way Metal XLR Line Plug 3 Way Metal XLR Line Socket
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal
Maximum Cable 8mmØ

Subject to technical modifications.
3-pin XLR connectors in standard metal version with strain relief and flexible rubber cable protector.
Order Code   1 10+ 25+
100-113 3 Way Metal XLR Line Plug 0.75 0.50 0.45
100-123 3 Way Metal XLR Line Socket 1.13 0.75 0.68

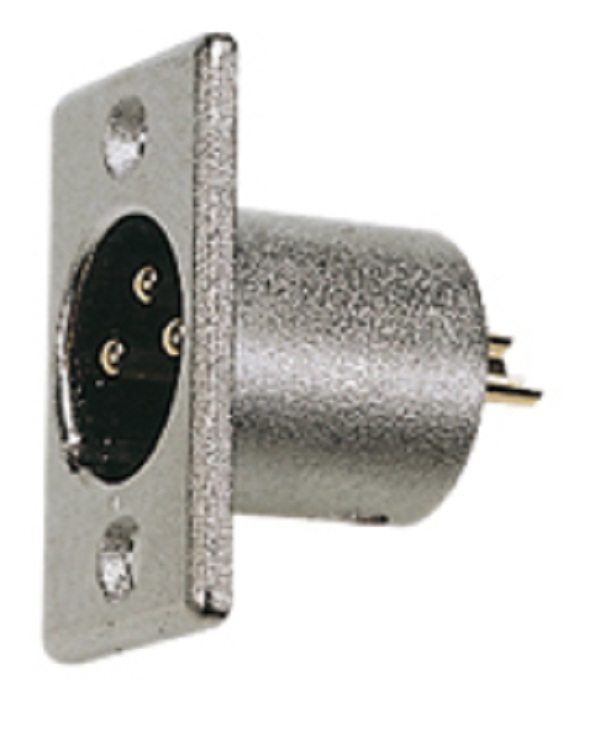

3 Way XLR Chassis Plug Metal 3 Way XLR Chassis Socket Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out
Plug 18mmØ
Socket 24mmØ
Subject to technical modifications.
3 pole XLR Chassis Plug and Socket. Type 'P' with two hole fixing.
Order Code   1 10+ 25+
100-133 3 Way XLR Chassis Plug Metal 0.96 0.80 0.64

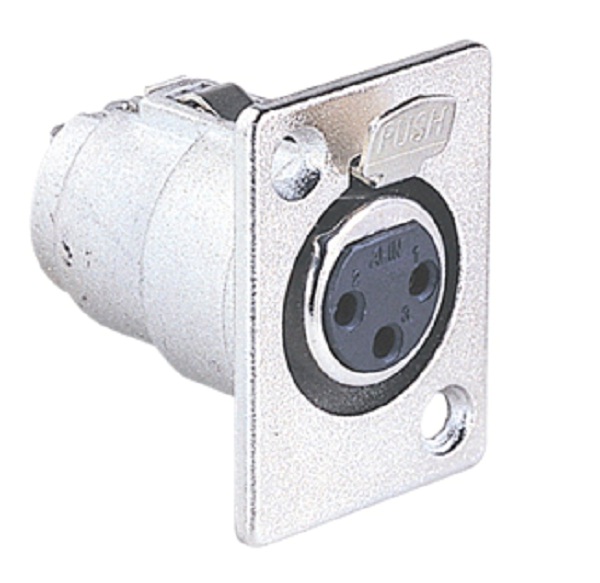

100-143 3 Way XLR Chassis Socket Metal 1.11 0.93 0.74

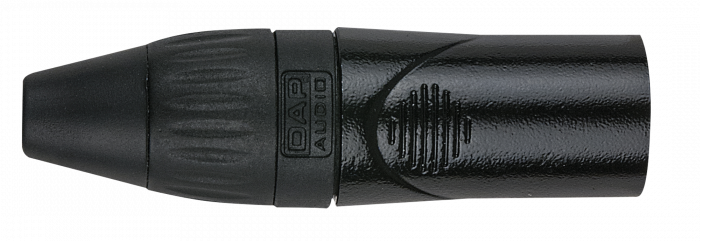

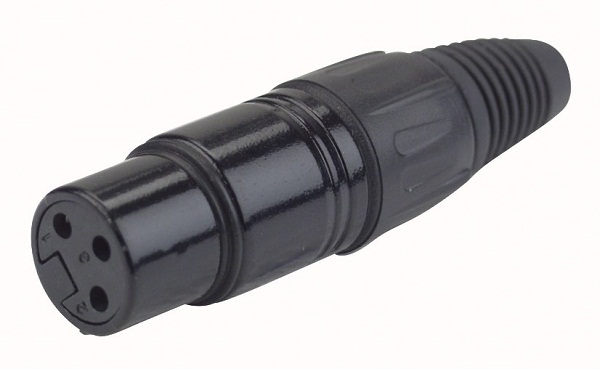

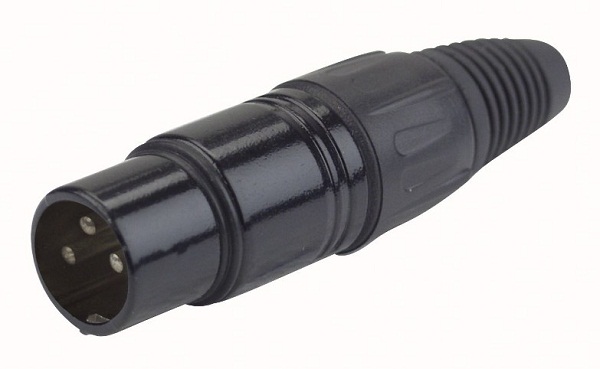

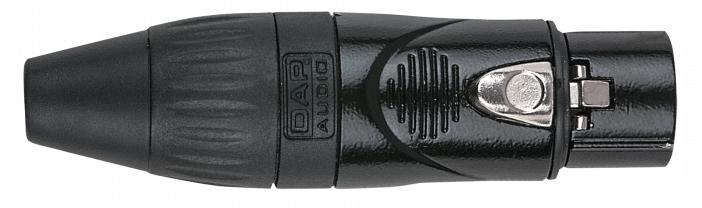

3 Pin XLR Line Plug Black Metal 3 Pin XLR Line Socket Black Metal
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal
Maximum Cable 8mmØ

Subject to technical modifications.

Dap Audio 3 pole XLR Plug and Socket with collet cable grip and soft black plastic boot.
Order Code   1 10+ 25+
100-210 3 Pin XLR Line Plug Black Metal 1.55 1.24 1.12

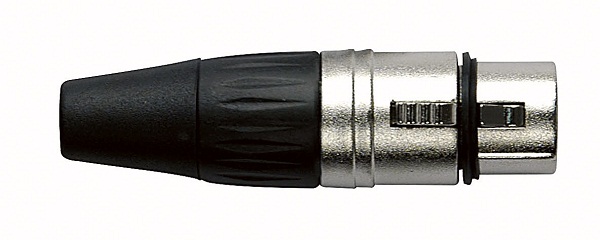

100-220 3 Pin XLR Line Socket Black Metal 1.60 1.28 1.15

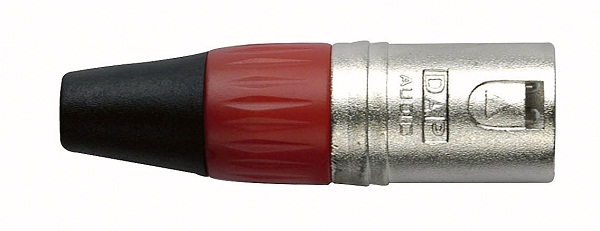

3 Pin XLR Line Plug Red Metal 3 Pin XLR Line Socket Red Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 7mmØ

Subject to technical modifications.

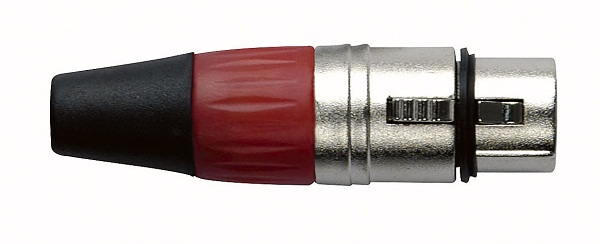

Dap Audio 3 pole XLR Plug and Socket with collet cable grip, red identity ring and soft black plastic boot.
Order Code   1 10+ 25+
100-212 3 Pin XLR Line Plug Red Metal 1.55 1.24 1.12
100-222 3 Pin XLR Line Socket Red Metal 1.70 1.36 1.22

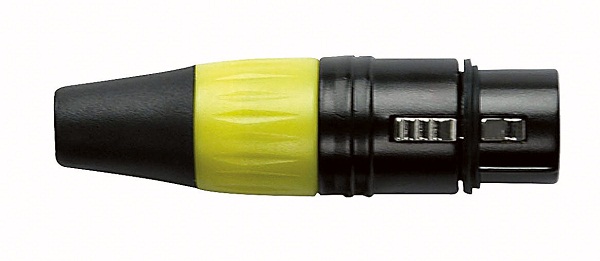

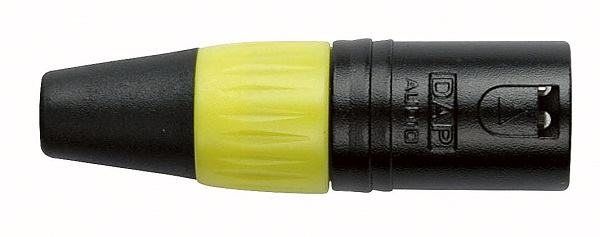

3 Pin XLR Line Plug Yellow Metal 3 Pin XLR Line Socket Yellow Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 7mmØ

Subject to technical modifications.

Dap Audio 3 pole XLR Plug and Socket with collet cable grip, yellow identity ring and soft black plastic boot.
Order Code   1 10+ 25+

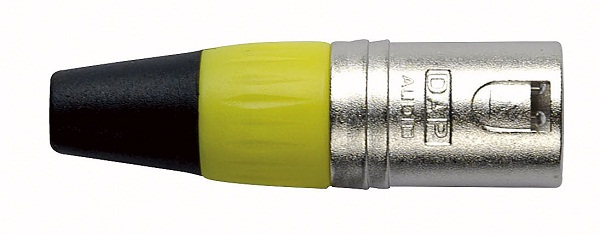

100-214 3 Pin XLR Line Plug Yellow Metal 1.55 1.24 1.12

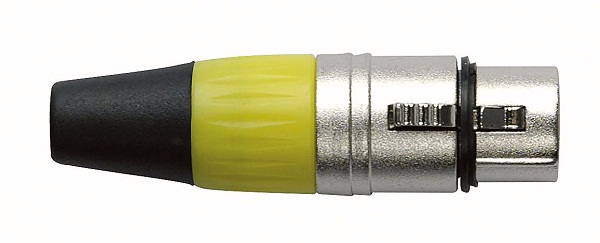

100-224 3 Pin XLR Line Socket Yellow Metal 1.70 1.36 1.22

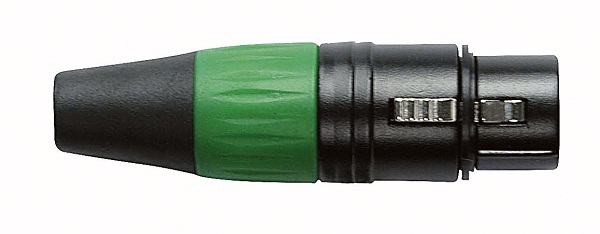

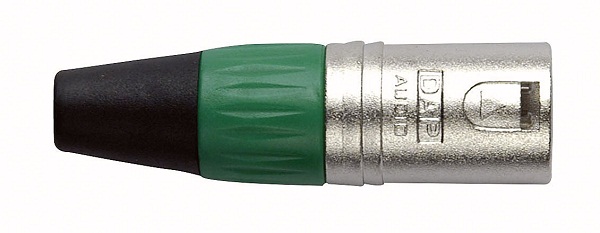

3 Pin XLR Line Plug Green Metal 3 Pin XLR Line Socket Green Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 7mmØ

Subject to technical modifications.

Dap Audio 3 pole XLR Plug and Socket with collet cable grip, green identity ring and soft black plastic boot.
Order Code   1 10+ 25+
100-215 3 Pin XLR Line Plug Green Metal 1.55 1.24 1.12
100-225 3 Pin XLR Line Socket Green Metal 1.70 1.36 1.22

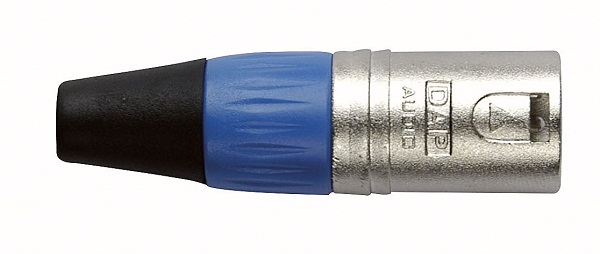

3 Pin XLR Line Plug Blue Metal 3 Pin XLR Line Socket Blue Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 7mmØ

Subject to technical modifications.

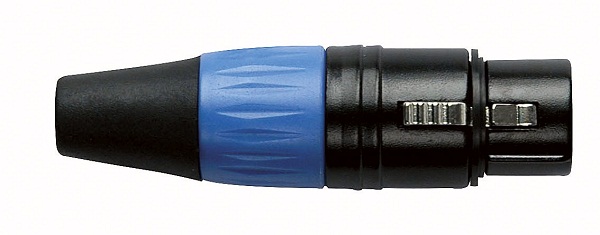

Dap Audio 3 pole XLR Plug and Socket with collet cable grip, blue identity ring and soft black plastic boot.
Order Code   1 10+ 25+
100-216 3 Pin XLR Line Plug Blue Metal 1.55 1.24 1.12
100-226 3 Pin XLR Line Socket Blue Metal 1.70 1.36 1.22

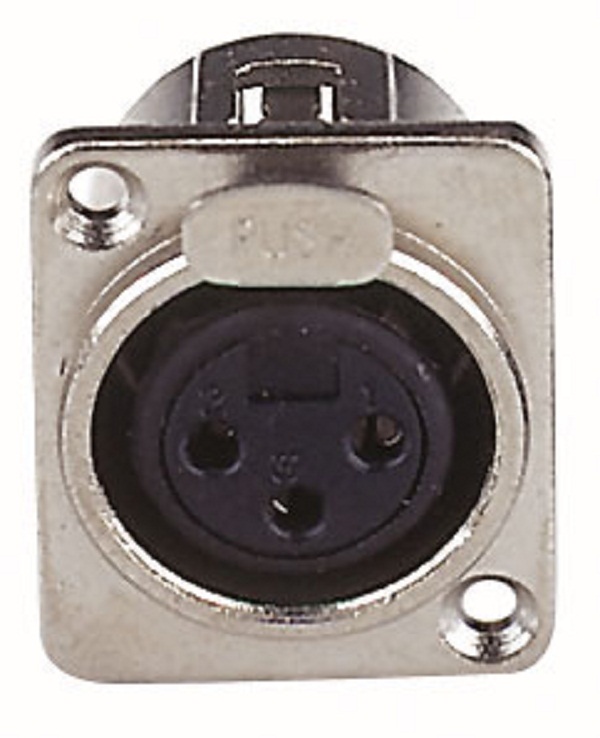

3 Pin XLR Chassis Plug Metal 3 Pin XLR Chassis Socket Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out 23mmØ
Subject to technical modifications.

Dap Audio 3 pole 'D' Type XLR Chassis Plug and Socket.
Order Code   1 10+ 25+

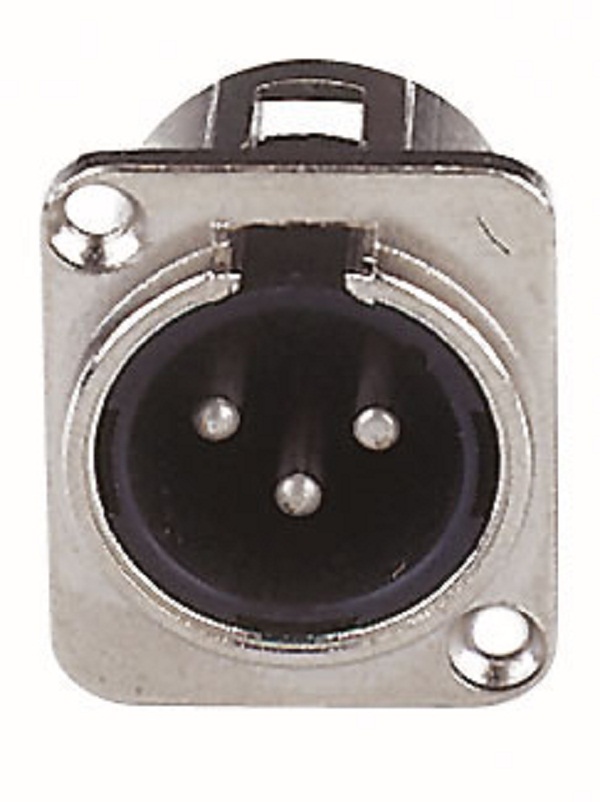

100-233 3 Pin XLR Chassis Plug Metal 1.40 1.26 1.12
100-243 3 Pin XLR Chassis Socket Metal 1.90 1.71 1.52



Chassis XLR Plug - XLR Socket Chassis XLR Socket - XLR Plug
Specifications:
Contacts Nickel-plated
Connection
Body Plastic
Panel Cut-out 23mmØ
Subject to technical modifications.
Bulkhead XLR couplers available with either Male or Female connectors. Ideal for use with our range of pre-drilled rack panels. 'D' Type XLR fitting Chassis Plug and Socket.
Order Code   1
100-235 3 Pin XLR Bulkhead Chassis Plug - Socket 5.24
100-245 3 Pin XLR Bulkhead Chassis Socket - Plug 5.24

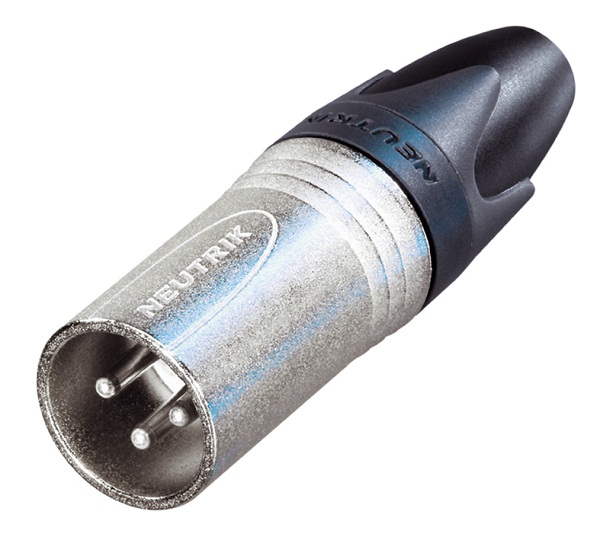

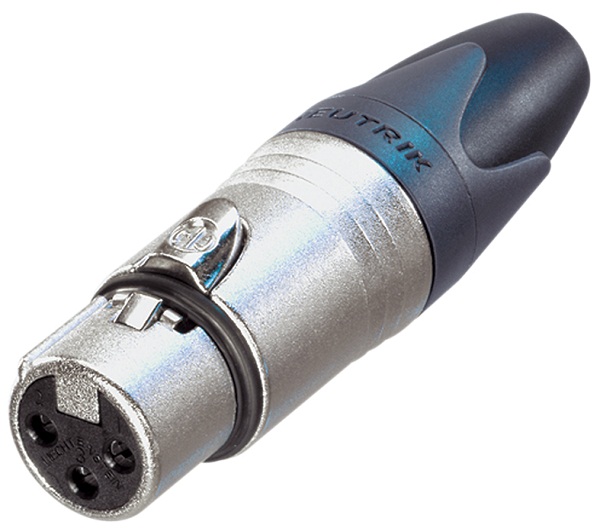

NC3MX 3 Pin XLR Line Plug NC3FX 3 Pin XLR Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 7mmØ

Subject to technical modifications.

Neutrik Connecting the World

Professional 3 pole XLR Plug and Socket with collet cable grip and soft black plastic boot. Manufactured by Neutrik.
Order Code   1 10+
100-513 Neutrik NC3MXX 3 Pin XLR Line Plug 1.81 1.68
100-523 Neutrik NC3FXX 3 Pin XLR Line Socket 2.16 1.99

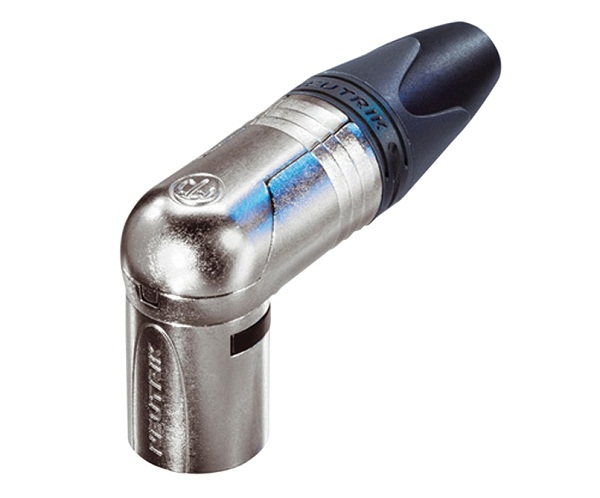

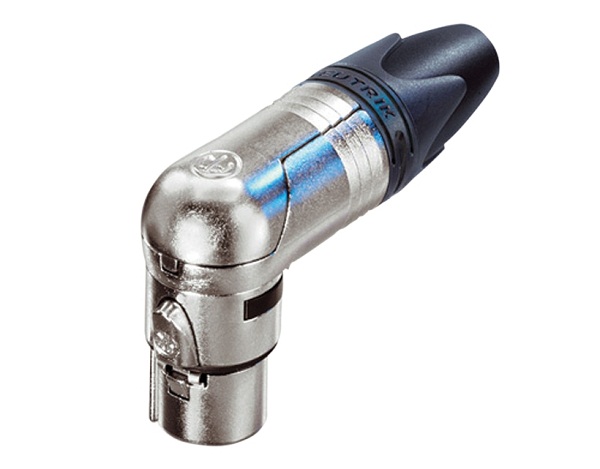

NC3MRC 3 Pin XLR Line Plug NC3FRC 3 Pin XLR Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 7mmØ
Subject to technical modifications.

Neutrik Connecting the World

Professional 3 pole right angled XLR Plug and Socket with cable grip and soft black plastic boot. Manufactured by Neutrik.
Order Code   1 10+
100-553 Neutrik NC3MRC 3 Pin XLR Line Plug - 90° 5.73 4.87
100-563 Neutrik NC3FRC 3 Pin XLR Line Socket - 90° 6.38 5.42

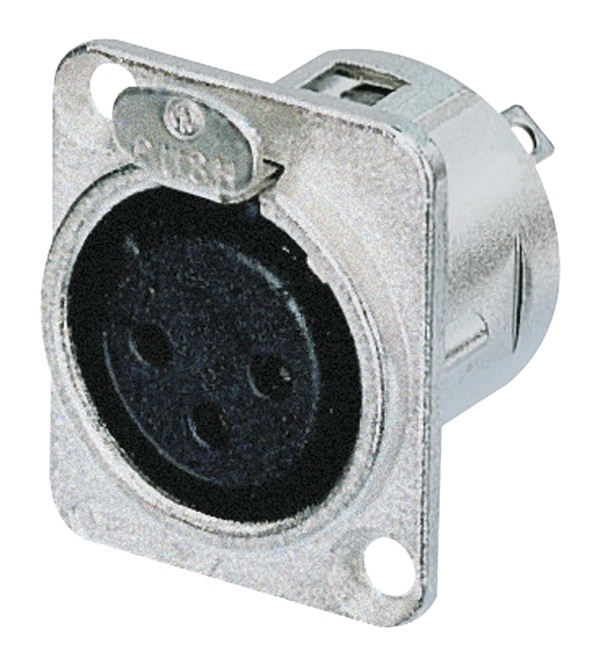

NC3MDL 3 Pin XLR Chassis Plug NC3FDL 3 Pin XLR Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out 23mmØ
Subject to technical modifications.

Neutrik Connecting the World

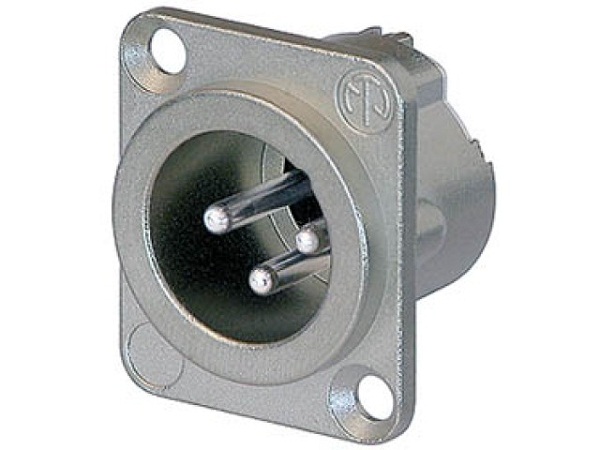

Neutrik professional type 'D' chassis mounting XLR plug and socket.
Order Code   1 10+ 25+
100-533 Neutrik NC3MDL 3 Pin XLR Chassis Plug 1.73 1.47 1.29
100-543 Neutrik NC3FDL 3 Pin XLR Chassis Socket 2.66 2.26 1.99



Neutrik NCJ6FIH 6.35mm Socket Combined Chassis XLR Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Neutrik combined 3-pole XLR & 6.35mm stereo jack for balanced signals. Independent inputs, PCB mounting.
Order Code   1 10+
075-589 Neutrik NCJ6FIH Combined XLR Jack Chassis Socket 1.65 1.49



4 Way Metal XLR Line Plug 4 Way Metal XLR Line Socket
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal
Maximum Cable 8mmØ

Subject to technical modifications.
4-pin XLR connectors in standard metal version with strain relief and flexible rubber cable protector.
Order Code   1 10+ 25+
100-114 4 Way Metal XLR Line Plug 1.29 0.86 0.77
100-124 4 Way Metal XLR Line Socket 1.32 0.88 0.79



4 Way XLR Chassis Plug Metal 4 Way XLR Chassis Socket Metal
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out
Plug 18mmØ
Socket 24mmØ
Subject to technical modifications.
4 pole XLR Chassis Plug and Socket. Type 'P' with two hole fixing.
Order Code   1 10+ 25+
100-134 4 Way XLR Chassis Plug Metal 1.31 0.94 0.75
100-144 4 Way XLR Chassis Socket Metal 1.52 1.09 0.87



NC4MX 4 Pin XLR Line Plug NC4FX 4 Pin XLR Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Professional 4 pole XLR Plug and Socket with collet cable grip and soft black plastic boot. Manufactured by Neutrik.
Order Code   1 10+
100-514 Neutrik NC4MX 4 Pin XLR Line Plug 3.05 2.83
100-524 Neutrik NC4FX 4 Pin XLR Line Socket 4.90 4.56



5 Way Metal XLR Line Plug 5 Way Metal XLR Line Socket
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal
Maximum Cable 8mmØ

Subject to technical modifications.
5-pin XLR connectors in standard metal version with strain relief and flexible rubber cable protector.
Order Code   1 10+ 25+
100-115 5 Way Metal XLR Line Plug 1.33 0.95 0.76
100-125 5 Way Metal XLR Line Socket 1.42 1.18 0.95
