Two Part ABS Boxes

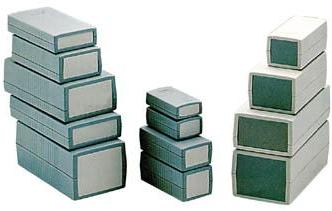

G400 Series ABS Enclosures (Fire Retardant)

Specifications:
Material	ABS
Colour	Dark Grey
G401	90 x 50 x 16mm
G403	90 x 50 x 24mm
G404	90 x 50 x 32mm
G407	120 x 60 x 30mm
G410	120 x 60 x 40mm
G412	120 x 60 x 50mm
G413	150 x 80 x 30mm
G416	150 x 80 x 45mm
G418	150 x 80 x 60mm
G421	190 x 100 x 40mm
G422	190 x 100 x 60mm
G425	190 x 100 x 80mm

Ideally suited for instrumentation and telecommunication equipment, from hand held applications to lab and desktop sizes. Moulded in a high impact fire retardant dark grey ABS (UL94-VO). The G400 range of cases are moulded in plastic and have a two piece design. The tongue and groove joint between the top and bottom half offers environmental sealing to IP54 rating. The top and bottom case are lightly relived, creating a non scratch surface with a high quality finish. Guide slots are provided for vertical PCB mounting and internal bosses make horizontal PCB mounting possible.

Order Code		1	10+	25+
400-701	G401 Dark Grey Moulded Plastic Enclosure	1.50	1.35	1.28
400-703	G403 Dark Grey Moulded Plastic Enclosure	1.70	1.53	1.45
400-704	G404 Dark Grey Moulded Plastic Enclosure	1.62	1.46	1.38
400-707	G407 Dark Grey Moulded Plastic Enclosure	3.02	2.72	2.57
400-710	G410 Dark Grey Moulded Plastic Enclosure	3.08	2.77	2.62
400-712	G412 Dark Grey Moulded Plastic Enclosure	3.33	3.00	2.83
400-713	G413 Dark Grey Moulded Plastic Enclosure	4.55	4.10	3.87
400-716	G416* Dark Grey Moulded Plastic Enclosure	4.49	4.04	3.82
400-718	G418 Dark Grey Moulded Plastic Enclosure	4.49	4.04	3.82
400-721	G421 Dark Grey Moulded Plastic Enclosure	7.34	6.61	6.61
400-722	G422 Dark Grey Moulded Plastic Enclosure	7.46	6.71	6.34
400-725	G425 Dark Grey Moulded Plastic Enclosure	6.93	6.24	5.89
