ABS Boxes with Mounting Flange

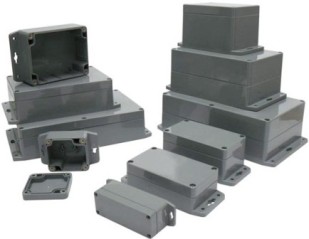

Sealed ABS Boxes with mounting flange
Specifications:
Material ABS
Colour Dark Grey
G302MF 64 x 58 x 35mm

G304MF

 115 x 65 x 40mm

G308MF

 115 x 65 x 55mm

G311MF

 115 x 90 x 55mm

G313MF

 171 x 121 x 55mm

G317MF

 222 x 146 x 55mm

G340MF

 171 x 121 x 80mm

G353MF

 222 x 145 x 75mm
These enclosures consist of high-impact ABS, the lid and the base are equipped with mounting flange and groove sealing system with a neoprene gasket. The flanged wall mounting holes are designed for M3 self-taping screws. The bosses inside of the base are designed for M2.6 self-taping screws. Designed to meet IP65 of IEC529 and NEMA4 (dust- and hose proof). Internal guide slots for mounting PCB assemblies vertically.
Order Code   1 10+ 25+

400-603

 G302MF Dark Grey ABS Enclosure 3.05 2.59 2.44

400-605

G304MF Dark Grey ABS Enclosure

 4.32 3.67 3.46

400-609

G308MF Dark Grey ABS Enclosure

 4.72 4.01 3.78

400-612

G311MF Dark Grey ABS Enclosure

 5.38 4.57 4.30

400-614

G313MF Dark Grey ABS Enclosure

 8.56 7.28 6.86

400-618

G317MF Dark Grey ABS Enclosure

 11.12 9.46 8.90

400-641

G340MF Dark Grey ABS Enclosure

 9.39 7.99 7.52

400-654

G353MF Dark Grey ABS Enclosure

 11.81 10.06 9.46
