20mm Panel Fuse Holder
Specifications:
Material Plastic
Rating 10A
Connection Solder
Panel Cut Out mm
Dimensions mm
Subject to technical modifications.
20mm fuse holder panel mounting with finger release. Suitable for low voltage applications. Supplied with fixing nut and washer.
Order Code   1 25+ 50+
187-110 20mm 10A Panel Fuse Holder 0.40 0.35 0.30



20mm Panel Fuse Holder
Specifications:
Material Plastic
Rating 10A
Connection Solder
Panel Cut Out 13mm
Dimensions mm
Subject to technical modifications.
20mm fuse holder panel mounting with screw driver release. Suitable for low voltage applications. Supplied with fixing nut and washer.
Order Code   1 25+ 50+
187-115 20mm Panel Fuse Holder 0.56 0.47 0.38



In-Line Fuse Holder 20mm
Specifications:
Material Plastic
Rating 6A
Connection Wire

Dimensions mm
Subject to technical modifications.
In line holder for 20mm fuses, supplied pre-crimped on approximately 200mm wire
Order Code   1 25+ 50+
187-285 In-Line Fuse Holder 20mm 0.20 0.17 0.15



20mm Vertical PCB Fuse Holder
Specifications:
Material Plastic
Rating
Connection Solder

Dimensions 33 x 10.5mmØ
Subject to technical modifications.
20mm fuse holder for vertical mounting on to printed circuit board, screw driver release. Suitable for low voltage applications.
Order Code   1 10+ 25+
187-120 20mm Vertical PCB Fuse Holder 0.95 0.76 0.68



20mm Horizontal PCB Fuse Holder
Specifications:
Material Plastic
Rating
Connection Solder

Dimensions 33 x 13mmØ
Subject to technical modifications.
20mm fuse holder for horizontal mounting on to printed circuit board, screw driver release. Suitable for low voltage applications.
Order Code   1 10+ 25+
187-125 20mm Horizontal PCB Fuse Holder 0.93 0.74 0.67



20mm PCB Mounting Fuse Holder Fuse Holder Clear Cover
Specifications:
Material Plastic
Rating


Dimensions mm
Subject to technical modifications.
Printed circuit board mounting 20mm fuse holder and clear plastic safety cover.
Order Code   1 25+ 50+
187-160 20mm PCB Mounting Fuse Holder 0.14 0.11 0.07
187-165 Open Fuse Holder Clear Cover 0.12 0.07 0.06

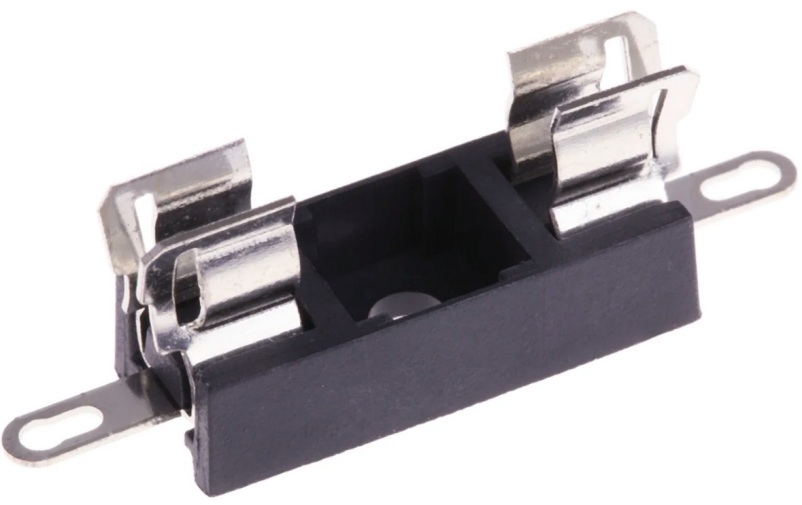

20mm Chassis Mounting Fuse Holder
Specifications:
Material Plastic

Connection Solder
Fixing Hole 3mmØ
Dimensions mm
Subject to technical modifications.
Chassis mounting holder, suitable for 20mm ceramic or glass fuses.
Order Code   1 25+ 50+
187-180 20mm Chassis Mounting Fuse Holder 0.15 0.14 0.12



PCB Fuse ClipsPCB Fuse Clips
Specifications:
Material Nickel Plated

Connection Solder

Dimensions mm
Subject to technical modifications.
Printed circuit board clips for 5mmØ fuses. (Sold in packets of 50)
Order Code   1 5+ 10+
187-190 5mmØ Individual PCB Fuse Clips 1.46 1.24 1.09



32mm Panel Fuse Holder
Specifications:
Material Plastic
Rating
Connection Solder
Panel Cut Out mm
Dimensions mm
Subject to technical modifications.
32mm fuse holder panel mounting with finger (Screw) release. Suitable for low voltage applications. Supplied with fixing nut and washer.
Order Code   1 10+ 25+
187-210 32mm Panel Fuse Holder - Finger Release cap 0.52 0.46 0.39



32mm Panel Fuse Holder
Specifications:
Material Plastic

Connection Solder
Panel Cut Out mm
Dimensions mm
Subject to technical modifications.
32mm fuse holder panel mounting with finger Push-Turn) release. Suitable for low voltage applications. Supplied with fixing nut and washer.
Order Code   1 10+ 25+
187-212 32mm Panel Fuse Holder - Finger Release Cap 0.69 0.58 0.46



In-Line Fuse Holder 32mm
Specifications:
Material Plastic
Rating 10A
Connection Wire

Dimensions mm
Subject to technical modifications.
In line holder for 32mm fuses, supplied pre-crimped on approximately 200mm wire
Order Code   1 25+ 50+
178-280 In-Line Fuse Holder 32mm 0.26 0.17 0.15



Car Fuse Holder Panel Mounting
Specifications:
Material Plastic
Contacts Nickel Plated Brass
Connection Solder Tags
Fixing Centres 27.5mm
Dimensions mm
Subject to technical modifications.
Standard automotive fuse holder for panel mounting. Suitable fuses are available
Order Code   1 10+ 25+
187-300 Car Fuse Holder Panel Mounting 0.60 0.50 0.40

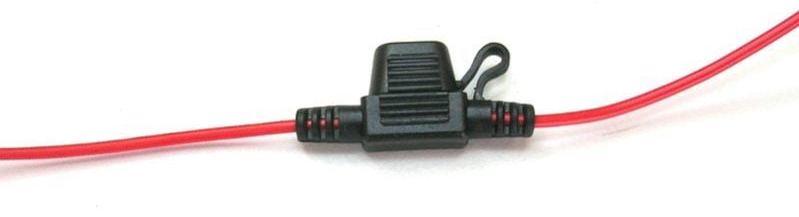

In-Line Car Fuse Holder
Specifications:
Material Plastic

Connection Solder
Panel Cut Out mm
Dimensions mm
Subject to technical modifications.
Standard automotive fuse holder with protective waterproof cover, supplied with approximately 250mm wire.
Order Code   1 25+ 50+
187-290 In-Line Car Fuse Holder 1.05 0.84 0.76



Car Fuse Holder PCB Mounting
Specifications:
Material Plastic

Connection Solder
Panel Cut Out mm
Dimensions mm
Subject to technical modifications.
Standard automotive fuse holder for direct mounting on to printed circuit board.
Order Code   1 10+ 25+
187-295 Car Fuse Holder PCB Mounting 1.70 1.36 1.22
