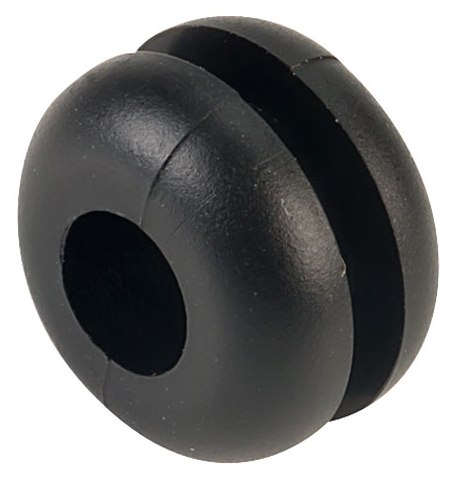

Rubber Cable Grommet Rubber Cable Grommet with Sleeve
Specifications:
Material Moulded Rubber
Colour Black
Panel-Cut out
6.3mmØ 9.6mmØ
9.6mmØ 13mmØ
15.5mmØ 20mmØ
Subject to technical modifications.
These small rubber grommets come in sizes to perfectly fit your application and they will prevent your wires and cables from being damaged. 040-114 has a integral cable strain relief, length 14mm.
Order Code   1 50+ 100+
040-112 6.3mmØ Rubber Cable Grommet 0.07 0.05 0.04
040-114 6.3mmØ Rubber Cable Grommet with relief sleeve 0.10 0.08 0.06
040-116 9.6mmØ Rubber Cable Grommet 0.12 0.09 0.06
040-118 15.5mmØ Rubber Cable Grommet 0.09 0.07 0.05



Strain Relief Bush
Specifications:
Material Moulded from Nylon 6/6
Colour Black
Panel Thickness
6.0mmØ 2.5mm
7.4mmØ 1.6mm
9.2mmØ 1.6mm
Subject to technical modifications.
A range of nylon bushes used to protect and secure cables at the point of entry or exit anchors and protects the cable from excessive stress.
Order Code   1 50+ 100+
040-120 3.0 - 6.0mm Strain Relief Bush 0.05 0.04 0.03
040-122 6.2 - 7.4mm Strain Relief Bush 0.07 0.04 0.03
040-124 8.2 - 9.2mm Strain Relief Bush 0.08 0.05 0.04



Blanking Grommet for D-Type Connectors
Specifications:
Material Plastic
Colour Black

Dimensions mm
Weight kg
Subject to technical modifications.
A Black plastic grommet, with the same dimensions as a D-Type connector. Suitable for use with our range of pre-drilled 19" rack panels.
Order Code   1 10+ 25+
406-881 Blanking Grommet for D-Type Connectors 0.76 0.69 0.61



M13 Cable Gland M16 Cable Gland M20 Cable Gland
Specifications:
Material Moulded from Nylon 6/6
Colour Black
Panel Cut out
M13 13mmØ
M16 16mmØ
M20 20mmØ
Subject to technical modifications.
Black Nylon cable glands available in several sizes to suit cables from 4.0 - 13.0mmØ. Available with either M13, 16 or 20 mounting thread.
Order Code   1 25+ 50+
040-150 M13 5.0 - 7.0mmØ Cable Gland 0.58 0.52 0.49
040-154 M16 7.0 - 10.5mmØ Cable Gland 0.54 0.49 0.46
040-152 M20 4.0 - 7.0mmØ Cable Gland 0.56 0.50 0.48
040-156 M20 7.0 - 10.5mmØ Cable Gland 0.48 0.43 0.41
040-158 M20 8.0 - 13.0mmØ Cable Gland 0.66 0.59 0.56



Spiral Cable Gland
Specifications:
Material Moulded from Nylon 6/6
Colour Grey
Panel Cut out 20.5mmØ



Subject to technical modifications.
A range of anti-kinking cable glands with an integral flexible cable protector to prevent excessive bending at the cable entry point
Order Code   1 25+ 50+
040-184 Spiral Cable Gland 5.0 - 10.0mmØ 0.96 0.86 0.82
040-186 Spiral Cable Gland 6.0 - 13.0mmØ 1.26 1.14 1.08
