Cold Cathode Tubes

White Cold Cathode Tube
Specifications:
Tube Voltage 180 ~ 800V
Colour White (7800K)
Average Brightness 15000cd/m²
Average Life (Hours) 15,000
Dimensions

100 x 4mmØ

300 x 4mmØ
White Cold Cathode Tube, available in 100mm and 300mm sizes. Requires separate power supply unit.
Order Code   Each
708-019 100mm White Cold Cathode Tube 2.63
708-039 300mm White Cold Cathode Tube 3.36



Pink Cold Cathode Tube
Specifications:
Tube Voltage 180 ~ 800V
Colour Pink
Average Brightness 15000cd/m²
Average Life (Hours) 15,000
Dimensions

100 x 4mmØ

300 x 4mmØ
Pink Cold Cathode Tube, available in 100mm and 300mm sizes. Requires separate power supply unit.
Order Code   Each
708-012 100mm Pink Cold Cathode Tube 2.92
708-032 300mm Pink Cold Cathode Tube 3.65



Green Cold Cathode Tube
Specifications:
Tube Voltage 180 ~ 800V
Colour Green
Average Brightness 15000cd/m²
Average Life (Hours) 15,000
Dimensions

100 x 4mmØ

300 x 4mmØ
Green Cold Cathode Tube, available in 100mm and 300mm sizes. Requires separate power supply unit.
Order Code   Each
708-015 100mm Green Cold Cathode Tube 2.77
708-035 300mm Green Cold Cathode Tube 3.79



Blue Cold Cathode Tube
Specifications:
Tube Voltage 180 ~ 800V
Colour Blue
Average Brightness 15000cd/m²
Average Life (Hours) 15,000
Dimensions

100 x 4mmØ

300 x 4mmØ
Blue Cold Cathode Tube, available in 100mm and 300mm sizes. Requires separate power supply unit.
Order Code   Each
708-016 100mm Blue Cold Cathode Tube 3.07
708-036 300mm Blue Cold Cathode Tube 3.80

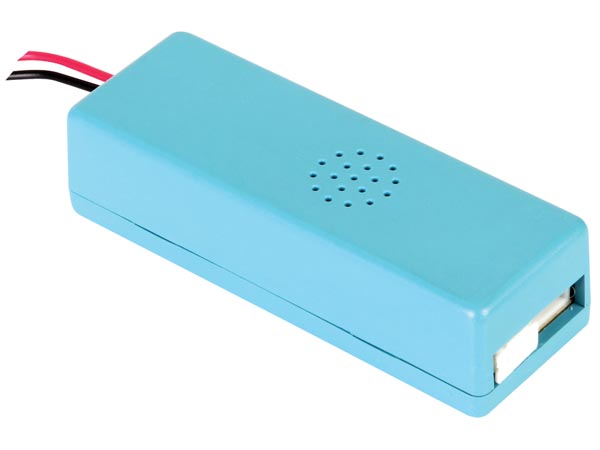

Power Supply for Cold Cathode Tubes
Specifications:
Supply Voltage 12Vdc
Output Voltage 180-800V
Power Consumption 375mA
Dimensions 61 x 21 x 15mm
Weight kg
A small power supply for use with our range of cold-cathode fluorescent lamps.
Order Code   Each
708-010 Power Supply for 100mm Cold Cathode Tubes 3.91
708-030 Power Supply for 300mm Cold Cathode Tubes 4.15
