LCD and Plasma Brackets

LCD Small Wall Mounting Slide Bracket
Specifications:
Screen Sizes 10" - 24"
Maximum Load 25kg
Distance to Wall 15mm
Tilting Adjustment -
Vesa 50, 75 and 100mm
Dimensions 95 x 95mm
Weight 374g
A small wall mount for LCD screens. Suitable for 10" - 24" screen sizes. Constructed from heavy duty powder coated steel in a grey finish, supplied with a selection of fixings.
Order Code   each
202-108 LCD Small Wall Mounting Slide Bracket 4.38



Universal adapter plate for LCD screens
Specifications:
Screen Sizes 10" - 24"
Maximum Load 25kg
Distance to Wall 18.5mm
Vesa 75mm, 100mm & 200mm
Dimensions 215 x 18.5 x 115mm
Weight 410g

A universal mounting bracket for LCD screens. Allows non standard monitors to be connected to VESA brackets. Suitable for 10" - 24" screen sizes. Constructed from heavy duty 2.0mm powder coated steel in a light grey finish.
Order Code   each
202-119 Universal LCD adapter plate 4.88



A wall mounting bracket for LCD/TFT screens
Specifications:
Screen Sizes 10" - 24"
Maximum Load 10kg
Length Adjustment 305mm
Tilting Adjustment 360º
Vesa 75mm and 100mm
Dimensions mm
Weight 2.1kg
A standard wall mount for LCD/TFT monitors with adjustable tilt and length. Suitable for 10" - 24" screen sizes. Constructed from a steel and plastic construction, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-053 Wall mounted LCD monitor bracket 15.95

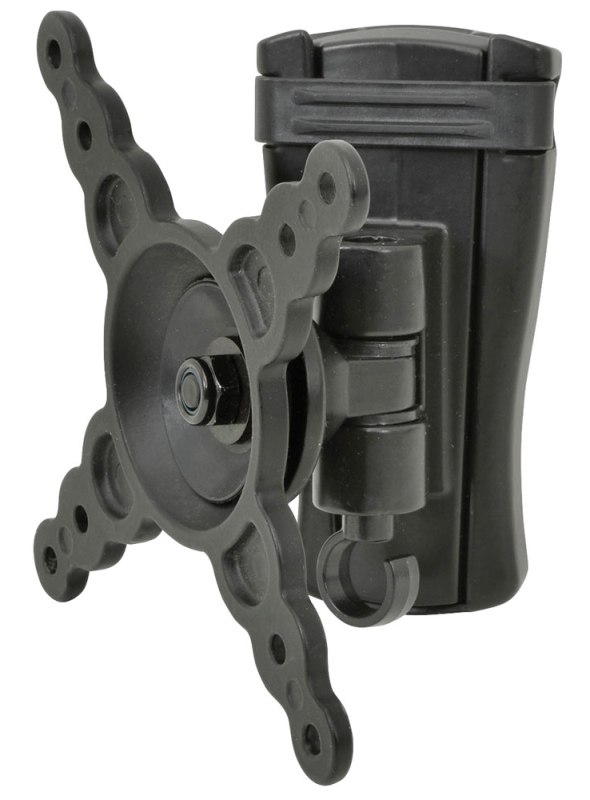

Single Arm Bracket
Specifications:
Screen Sizes 10" - 24"
Maximum Load 25kg
Distance to Wall 90mm
Tilting Adjustment -5º to 20º
Swivel 180º
Vesa 50, 75 and 100mm
Dimensions 155 x 37mm
Weight 750g
A short wall mount for LCD screens with adjustable tilt action. Suitable for 10" - 24" screen sizes. Constructed from heavy duty powder coated steel in a black finish, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-318 Single Arm Television Bracket 14.64



Dual Arm Bracket
Specifications:
Screen Sizes 10" - 24"
Maximum Load 25kg
Distance to Wall 90 - 250mm
Tilting Adjustment -5º to 20º
Swivel 180º
Vesa 100mm
Dimensions (Wall Plate) 155 x 37mm
Weight 1.05kg
A dual arm mount for LCD screens with adjustable tilt action. Suitable for 10" -32" screen sizes. Constructed from heavy duty powder coated steel in a silver finish, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-110 Dual Arm Television Bracket 19.64

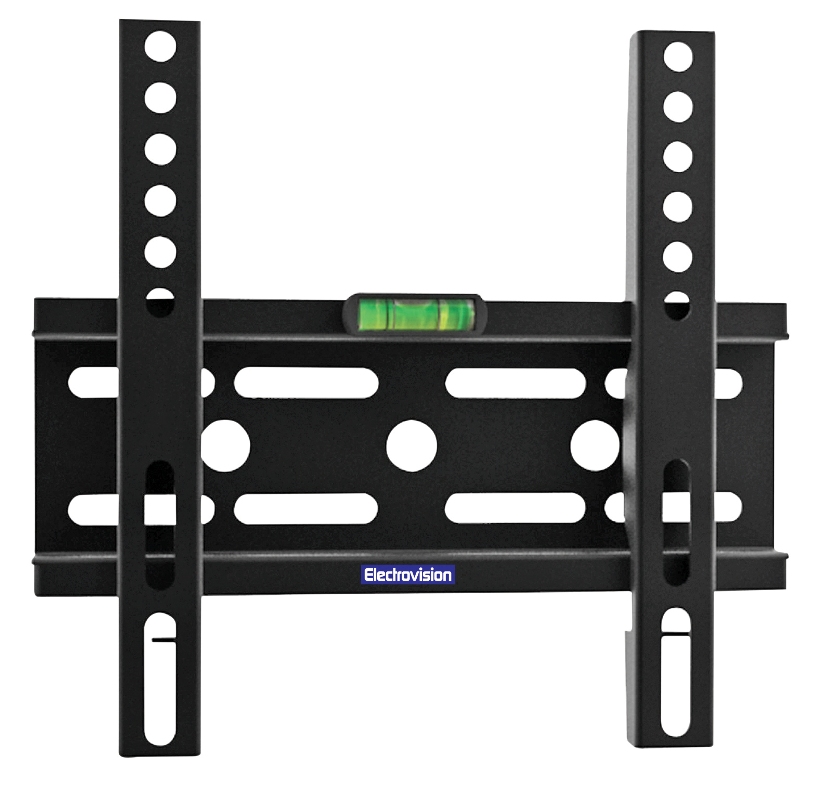

LCD / Plasma Screen Wall Mounting Bracket
Specifications:
Screen Sizes 23" - 42"
Maximum Load 40kg
Distance to Wall 30mm
Tilting Adjustment None
Vesa All hole patterns
Dimensions

530 x 46mm Plate
Weight 1.38kg
A standard wall mount for LCD/Plasma screens. Suitable for 23" - 42" screen sizes. Constructed from heavy duty 2.0mm powder coated steel in a dark grey finish.
Order Code   each
202-353 LCD / Plasma Screen Wall Mounting Bracket 15.40



LCD Wall Bracket
Specifications:
Screen Sizes 23" - 42"
Maximum Load 40kg
Distance to Wall 53mm
Tilting Adjustment -5º - 15º
Vesa 200mm
Dimensions 445 x 335 x 53mm
Weight 1.5kg
A standard wall mount for LCD/Plasma screens with adjustable tilt action. Suitable for 23" - 42" screen sizes. Constructed from heavy duty 2.0mm powder coated steel in a light grey finish, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-347 LCD/Plasma Screen Wall Mounting Bracket 21.00

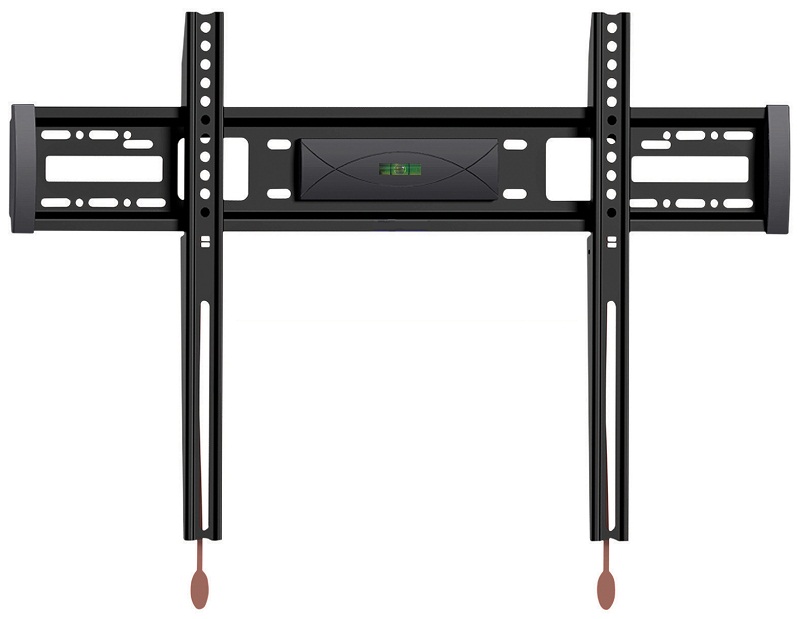

Fixed wall mounted bracket for large Plasma and LCD screens
Specifications:
Screen Sizes 36" - 55"
Maximum Load 75kg
Distance to Wall 30mm
Tilting Adjustment -
Vesa 400mm and 600mm
Dimensions

650 x 430mm Bracket

670 x 230mm Wall Plate
Weight 2.6kg
A standard wall mount for LCD/Plasma screens. Suitable for 36" - 55" screen sizes. Constructed from heavy duty powder coated 2.0mm steel in a silver finish, supplied with a selection of fixings, integral spirit level and locking bar for secure installation.
Order Code   each
202-153 Fixed wall mounted bracket for large Plasma and LCD screens 29.00



Metal flat panel wall support for large screena
Specifications:
Screen Sizes 36" - 55"
Maximum Load 75kg
Distance to Wall 80mm
Tilting Adjustment -15º to +15º
Vesa 400mm and 600mm
Dimensions

704 x 248mm Plate

705 x 498mm Arms
Weight 3.9kg
A standard wall mount for LCD/Plasma screens. Suitable for 36" - 55" screen sizes. Constructed from heavy duty powder coated steel in a silver finish, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-197 Adjustable wall mounting bracket for large Plasma and LCD screens 33.00


A wall mounting bracket for LCD/TFT screens
Specifications:
Screen Sizes 10" - 24"
Maximum Load 10kg
Length Adjustment 385mm
Tilting Adjustment 360º
Vesa 75mm and 100mm
Dimensions mm
Weight 2.1kg
A standard ceiling mount for LCD/TFT monitors with adjustable tilt and length. Suitable for 10" - 24" screen sizes. Constructed from a steel and plastic construction, supplied with a selection of fixings and locking bolts for secure installation.
Order Code   each
202-056 Wall mounted LCD monitor bracket 20.30
