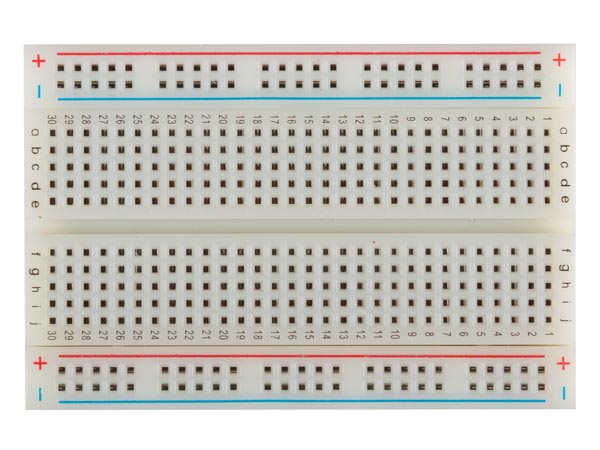

390 Tie Point Breadboard
Specifications:
Contacts Silver Plated
Nº of Contacts 390
Max Nº of 16 Pin Ic's 3
Pitch 0.1"
Dimensions 81 x 60 x 10mm


Subject to technical modifications.
A total of 390 contact points arranged in two groups of 29 rows of 5 interconnected sockets & four power rails of 25 interconnected sockets. All contacts are Silver plated nickel silver on a 0.1” pitch. Supplied with a self adhesive foam base, and can easily be interlocked with boards of the same type to make a larger working area.
Order Code   1 5+ 10+
336-039 390 Tie Point Breadboard 2.75 2.34 2.06

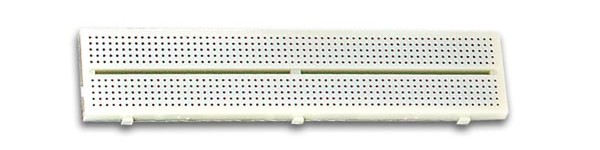

640 Tie Point Breadboard
Specifications:
Contacts Silver Plated
Nº of Contacts 640
Max Nº of 16 Pin Ic's 7
Pitch 0.1"
Dimensions 170 x 40 x 10mm


Subject to technical modifications.
A total of 640 contact points arranged in two groups of 64 rows of 5 interconnected sockets. All contacts are Silver plated nickel silver on a 0.1” pitch. Supplied with a self adhesive foam base.
Order Code   1 5+ 10+
336-031 640 Tie point Breadboard 3.08 2.62 2.31



840 Tie Point Breadboard
Specifications:
Contacts Silver Plated
Nº of Contacts 840
Max Nº of 16 Pin Ic's 7
Pitch 0.1"
Dimensions 170 x 60 10mm


Subject to technical modifications.
A total of 840 contact points arranged in two groups of 64 rows of 5 interconnected sockets & four power rails of 50 connected sockets. All contacts are Silver plated nickel silver on a 0.1” pitch. Supplied with a self adhesive foam base.
Order Code   1 5+ 10+
336-033 840 Tie Point Breadboard 4.86 4.13 3.65



1580 Tie Point Breadboard with base plate
Specifications:
Contacts Silver Plated
Nº of Contacts 1580
Max Nº of 16 Pin Ic's 14
Pitch 0.1"
Dimensions 190 x 170 x19mm


Subject to technical modifications.
A total of 1580 contact points arranged in four groups of 64 rows of 5 interconnected sockets & six power rails of 50 interconnected sockets. All contacts are Silver plated nickel silver on a 0.1” pitch. Supplied mounted on a base plate with three 4mm binding posts & an edge plate for mounting switch, pots etc.
Order Code   1 5+ 10+
336-035 1580 Tie Point Breadboard with base plate 16.71 14.20 12.53

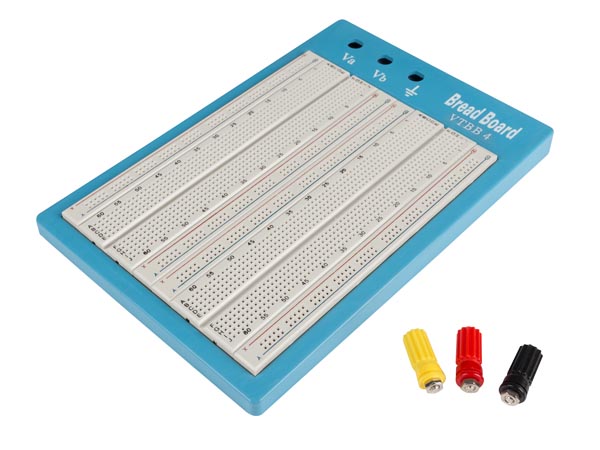

1680 Tie Point Breadboard with base plate
Specifications:
Contacts Silver Plated
Nº of Contacts 1680
Max Nº of 16 Pin Ic's 14
Pitch 0.1"
Dimensions 224 x 150 x 20mm


Subject to technical modifications.
A total of 1680 contact points arranged in four groups of 64 rows of 5 interconnected sockets & eight power rails of 50 interconnected sockets. Silver plated nickel silver contacts on a 0.1” pitch. Supplied mounted on a base plate with three 4mm binding posts.
Order Code   1 5+ 10+
336-036 1680 Tie Point Breadboard with base plate 12.46 10.59 9.35

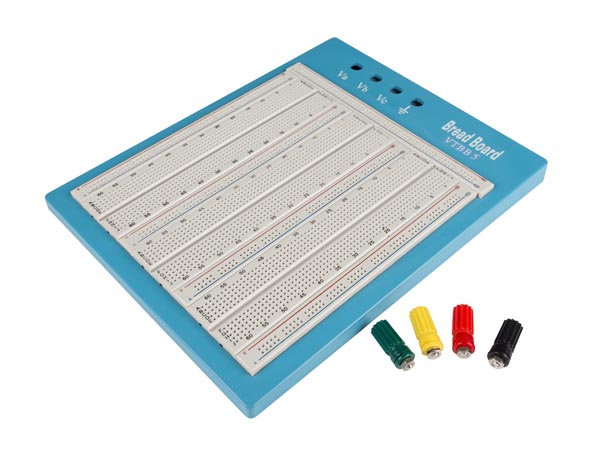

2420 Tie Point Breadboard with base plate
Specifications:
Contacts Silver Plated
Nº of Contacts 2420
Max Nº of 16 Pin Ic's 21
Pitch 0.1"
Dimensions 243 x 195 x 20mm


Subject to technical modifications.
A total of 2420 contact points arranged in six groups of 64 rows of 5 interconnected sockets & ten power rails of 50 interconnected sockets. All contacts are Silver plated
nickel silver on a 0.1” pitch. Supplied mounted on a base plate with four 4mm binding posts.
Order Code   1 5+ 10+
336-037 2420 Tie point Breadboard with base plate 15.81 13.44 11.86



840 Tie Point Breadboard with base plate
Specifications:
Contacts Silver Plated
Nº of Contacts 840
Max Nº of 16 Pin Ic's 7
Pitch 0.1"
Dimensions 203 x 75 x 17mm


Subject to technical modifications.
A total of 840 contact points arranged in two groups of 64 rows of 5 interconnected sockets & four power rails of 50 interconnected sockets. All contacts are Silver plated nickel silver on a 0.1” pitch. Supplied mounted on a base plate with two 4mm binding posts.
Order Code   1 5+ 10+
336-040 840 Tie Point Breadboard with base plate 5.74 5.17 4.59

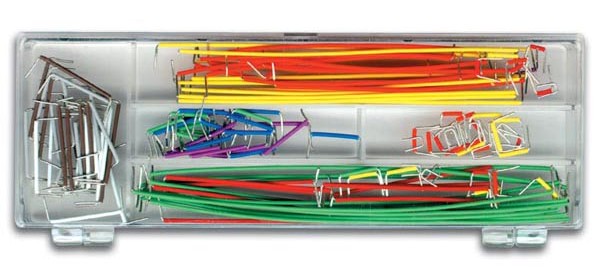

140 Piece Jumper Wire kit
Specifications:
Total No of Wires 140



Dimensions mm
Subject to technical modifications.
Kit containing suitable interconnecting wires for use with all of our solderless breadboards. The leads are colour coded with PVC insulation and have preformed ends ready for use. There are 14 different lengths: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1, 2, 3, 4 & 5 inch. and this kit has 10 of each. Supplied in a handy plastic reusable case.
Order Code   1 5+ 10+
336-210 140 Piece Jumper Wire kit 2.99 2.84 2.69

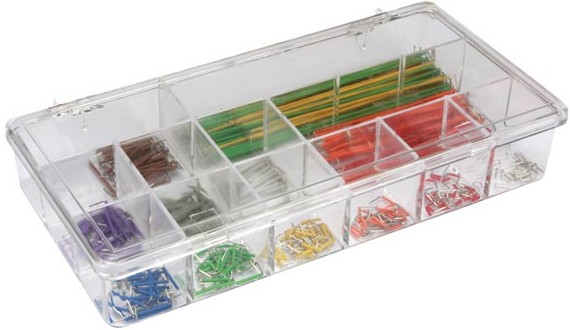

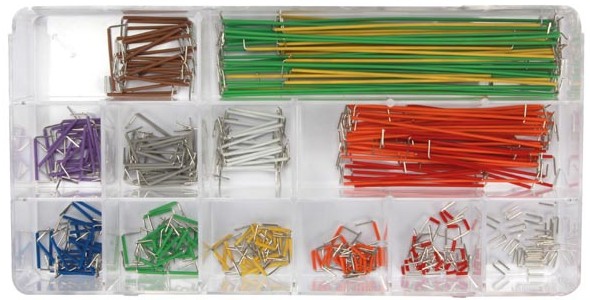

350 Piece Jumper Wire kit
Specifications:
Total No of Wires 350



Dimensions mm
Subject to technical modifications.
Kit containing suitable interconnecting wires for use with all of our solderless breadboards. The leads are colour coded with PVC insulation and have preformed ends ready for use. There are 14 different lengths: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1, 2, 3, 4 & 5 inch. and this kit has 25 of each. Supplied in a handy plastic reusable case.
Order Code   1 5+ 10+
336-215 350 Piece Jumper Wire kit 5.99 5.69 5.09

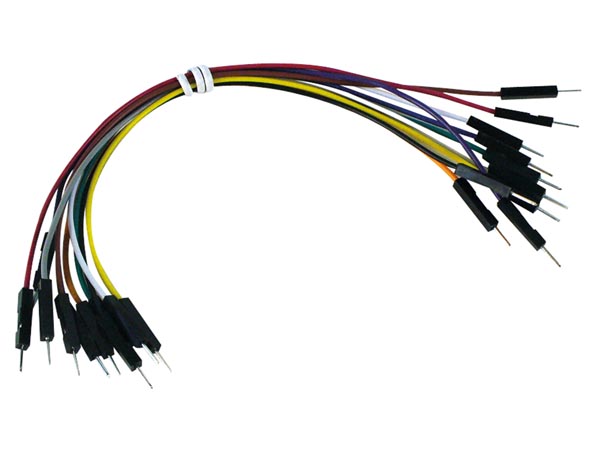

High Quality Jump wires
Specifications:
Length 50mm
  70mm
  100mm
  150mm

Subject to technical modifications.
A selection of differing lengths of jumper links with specially designed plugs at each end. High quality links, lasting much longer than solid core equipment wire, available in four different lengths and colour coded for easy identification. Suitable for use with all of our solderless breadboards. (10 per Pack)
Order Code   1 5+ 10+
336-310 50mm High Quality Jump wire (Pack of 10) 2.00 1.80 1.70
336-315 70mm High Quality Jump wire (Pack of 10) 2.08 1.87 1.77
336-320 100mm High Quality Jump wire (Pack of 10) 2.24 2.02 1.90
336-325 150mm High Quality Jump wire (Pack of 10) 2.48 2.23 2.11
