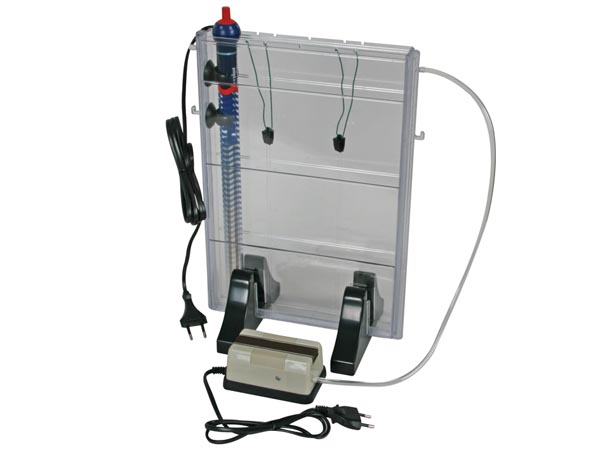

ET20 Etching Tank with Heater and Agitator
Specifications:
Model ET20

Heater 300W 240Vac
Dimensions 360 x 280 x 40mm
Weight kg
Subject to technical modifications.

A small in expensive tank for etching PCB's, included is a small heater, air pump and clips to support printed circuit board. Switch on, raise temperature up to 42ºC, place circuit board in tank and switch on air pump. The board should be ready in 4 minutes. Suitable for boards no larger than 345 x 225mm
Order Code   each
333-000 ET20 Etching Tank with Heater and Agitator 42.84



PCB PROCESSING TANKS
A range of process tanks allowing PCBs to be produced safely. All chemicals are held in a leak proof design high density polypropylene moulded tank. The tanks will accommodate boards up to 320 × 260mm (12.6 × 10.23”), each tank has a lid with integral board holder with side clips to ensure small boards no not fall out into the chemicals during processing. All splash proof electrical controls are located in a recessed panel on the front of the unit. All units are supplied with a siphon and an IEC mains lead with moulded 13A plug.



Spray Wash Processing Tank
Specifications:
Model PA103


Dimensions 180 x 525 x 380mm
Weight kg
Subject to technical modifications.

A simple tank containing two spray wash bars at the top. Used to rinse boards between developing, etching, stripping or tinning. Driven direct from the water mains (No electrical connection necessary), a bottom outlet tube permits used water to be drained to the waste.
Order Code   each
333-003 PA103 Spray Wash Processing Tank 127.50



Bubble Etch Processing Tank
Specifications:
Model PA104

Heater 500W 240Vac
Dimensions 180 x 525 x 380mm
Weight kg
Subject to technical modifications.
This process tank has a built in heater with a thermostat and a pump which forces air through two bubble bars at the bottom of the tank to provide efficient and even etching. The control panel has mains and pump On/Off switches with neon’s, a thermostat temperature control (10 - 65°C) and a heater indicator neon. Supplied with syphon pump for assisting with emptying of tank.
Order Code   each
333-004 PA104 Bubble Etch Processing Tank 196.00



Universal Heated Processing Tank
Specifications:
Model PA107

Heater 500W 240Vac
Dimensions 180 x 525 x 380mm
Weight kg
Subject to technical modifications.
With a built in thermostatically controlled heater (10 - 65°C) this tank is ideal for most PCB production processors including: Developing (25°C), Photoresist Strip (45°C) or Immerse Tin (21°C). The control panel has a mains On/Off switch with neon, a thermostat temperature control and a heater indicator neon. Supplied with syphon pump for assisting with emptying of tank.
Order Code   each
333-007 PA107 Universal Heated Processing Tank 167.81



Twin Universal Processing Tank Heater/Spray
Specifications:
Model PA207

Heater 500W 240Vac
Dimensions 275 x 525 x 380mm
Weight kg
Subject to technical modifications.
This unit includes a universal process tank (PA107) as well as a spray wash unit. This unit forms a very cost effective improvement over the universal tank. The spray wash process is controlled by an electrically operated solenoid with all controls located on the front panel. Connection at the rear are provided for water supply and drain. The control panel has a mains, heater & spray wash On/Off switch with neon, a thermostat temperature control and a heater indicator neon. Supplied with syphon pump for assisting with emptying of tank.
Order Code   each
333-010 PA207 Twin Universal Processing Tank Heater/Spray 225.00



Twin Processing Tank, Bubble / Spray
Specifications:
Model PA210

Heater 500W 240Vac
Dimensions 275 x 525 x 380mm
Weight kg
Subject to technical modifications.
An improvement over a standard bubble etch tank. This unit includes a bubble etch tank (PA207) as well as a spray wash unit. This offers safer and cleaner production of PCBs especially as the working area over which boards are carried is reduced. The spray wash process is controlled by an electrically operated solenoid with all controls located on the front panel. Connection at the rear are provided for water supply and drain. The control panel has a mains, heater, pump & spray wash On/Off switch with neon, a thermostat temperature control and a heater indicator neon. Supplied with syphon pump for assisting with emptying of tank.
Order Code   each
333-021 PA210 Twin Processing Tank, Bubble / Spray 253.13



Triple Processing Tank, Heater / Spray / Bubble
Specifications:
Model PA310

Heater 500W 240Vac
Dimensions 400 x 525 380mm
Weight kg
Subject to technical modifications.
A complete self contained triple process tank unit combining a universal, spray wash and bubble etch tank enabling the production of PCBs in a small convenient area without the need to transfer materials over a wide working area. This unit has all the features of the two twin tank units combined and is particularly suited to a Develop / Wash / Bubble Etch / Wash process, although can also be used additionally as a Resist Strip / Wash / Immerse Tin / Wash combination to form a Full PCB processing system. The function of the tanks and controls are standard, with all controls on a recessed front panel, and water supply & drain at the rear. Supplied with syphon pump for assisting with emptying of tank.
Order Code   each
333-031 PA 310 Twin Processing Tank, Bubble / Spray 416.99
