Peltier Thermoelectric

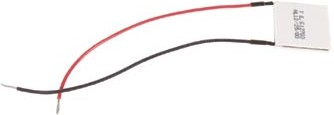

Peltier Thermoelectric Cell 3A
Specifications:
Model CP1.0-127-06L
I max 3A
Delta T max 65°C
Voltage 15.4Vdc
Q max 25.7W
Number of couples 127
Dimensions 30 x 30 x 3.6mm
Weight 12g
Peltier thermoelectric module can be used to generate electricity, measure temperature or change the temperature of objects. Because the direction of heating and cooling is determined by the polarity of the applied voltage, thermoelectric devices are efficient temperature controllers.
Order Code   each
241-180 Peltier Thermoelectric Cell 3A 15.48



Peltier Thermoelectric Cell 6A
Specifications:
Model CP1.4-127-06L
I max 6A
Delta T max 67°C
Voltage 15.4Vdc
Q max 51.4W
Number of couples 127
Dimensions 40 x 40 x 3.8mm
Weight 21.8g
Peltier thermoelectric module can be used to generate electricity, measure temperature or change the temperature of objects. Because the direction of heating and cooling is determined by the polarity of the applied voltage, thermoelectric devices are efficient temperature controllers.
Order Code   each
241-181 Peltier Thermoelectric Cell 6A 12.84
