Float Switch

Vertical Float Switch
Specifications:
Model C-7235
Voltage 230Vac
Current 500mA

Mounting Hole 9.5mm
Dimensions 72 x 23mmØ
Weight g
This vertical mounting float switch is manufactured from polypropylene. When the magnetic float reach the required level, the sensor will open or close its contacts depending on assembly position. Supplied with nylon lock nut and sealing washer, complete with 500mm cable.
Order Code   Each
241-125 Vertical Mounting Float Switch 8.70

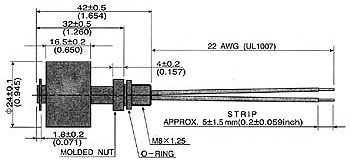

Float Switch NO Contacts Line Drawing
Specifications:
Model
Voltage 100Vdc
Current 1A

Mounting Hole mm
Dimensions mmØ
Weight g
This vertical mounting float switch manufactured from polypropylene. When the float reach the required level, the sensor will close its contacts. Off state from 9.0 to 13.7mm, On state 4.0 to 12.0mm. Operating release time 0.6ms/0.1ms max. Supplied with nylon lock nut and sealing washer, complete with 70mm cable.
Order Code   1 10+ 25+
241-127 Vertical Mounting Float Switch, NO Contacts 6.69 4.46 4.01



Line Drawing
Specifications:
Model
Voltage 100Vdc
Current 1A

Mounting Hole mm
Dimensions mmØ
Weight g
This vertical mounting float switch manufactured from polypropylene. When the float reach the required level, the sensor will open its contacts. On state from 9.0 to 13.7mm, off state 4.0 to 12.0mm. Operating release time 0.6ms/0.1ms max. Supplied with nylon lock nut and sealing washer, complete with 70mm cable.
Order Code   1 10+ 25+
241-129 Vertical Mounting Float Switch, NC Contacts 6.93 4.62 4.16



Horizontal Float Switch
Specifications:
Model C-7236
Voltage 230Vac
Current 500mA

Mounting Hole 16mm
Dimensions 81 x 27mmØ
Weight g
This horizontal mounting float switch is manufactured from polypropylene. When the magnetic float reach the required level, the sensor will open or close its contacts depending on assembly position. Supplied with nylon lock nut and sealing washer, complete with 500mm cable.
Order Code   Each
241-130 Horizontal Mounting Float Switch 9.78
