A 12 pad keyboard on a 3 x 4 matrix with 0 - 9 digits # and ж.
Connection is made via a 14 pin soldered board connection (0.1" Pitch).
Order Code
1
10+
212-910
12 Key Keyboard (Common)
5.55
4.44
Specifications:
Model
C-5235
Contact Arrangement
Matrix Output
Connection
Solder
Rating
24Vdc / 20mA
Contact resistance
200Ω (Max)
Panel Cut-out
57 x 46mm
Dimensions
64 x 51 x 11mm
Download Handbook
>
A 12 pad keyboard on a 3 x 4 matrix with 0 - 9 digits # and ж.
Mechanical keyboard like a "telephone" connection matrix. The connector
consists of a 7-pin strip on the side, with 2.54 mm step. and a length
of 8mm. Suitable for professional applications, such as access control,
control panels and regulatory machinery and
processes, etc ...
Order Code
1
10+
212-912

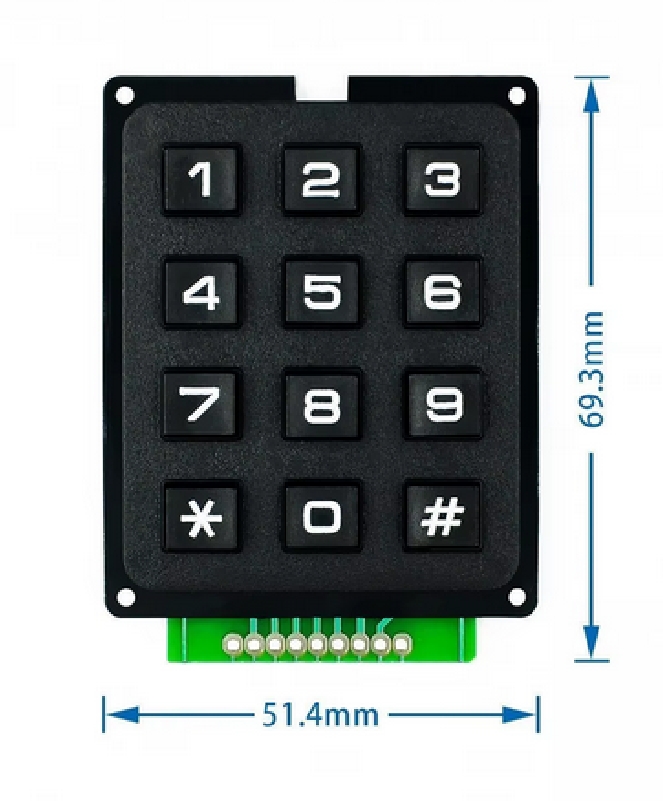

12 Key Keyboard (Matrix)
5.30
4.24
Specifications:
Model
Contact Arrangement
Matrix
Connection
Solder
Rating
24Vdc / 20mA
Contact resistance
200Ω (Max)
Panel Cut-out
56 x 57mm
Dimensions
65 x 62 x 11mm
A 16 pad keyboard on a 4 x 4 matrix with 0 - 9 digits, A, B, C, D, # and
ж. Connection is made via an 8 pin soldered board connector (0.1"
Pitch).
Order Code
1
10+
212-915
16 Key Keyboard
5.71
4.57
Specifications:
Model
C-5236
Contact Arrangement
Common Output
Connection
Solder
Rating
24Vdc / 20mA
Contact resistance
200Ω (Max)
Dimensions
78 x 58 x 17mm
Weight
148g
A Heavy duty telephone type 3 x 4 matrix keypad. Mounted an a metal frame
with plastic keys, ideal for industrial applications. Separate
pre-punched aluminium mounting plate
available to provide vandal proof keypad.
