Latching Action Illuminated Push Switches

Latching Push SwitchLatching Action Push SwitchGreen LED SwitchBlue Latching Push Button SwitchLatching Action Switch
Specifications:
Switch ActionLatching
Contact ArrangementSPDT
ConnectionSolder
Rating0.5A/230VAC
IP RatingIP40/IP65
Panel Cut out16mmØ
LED Supply12VDC
MaterialNickel Plated Brass
Dimensions

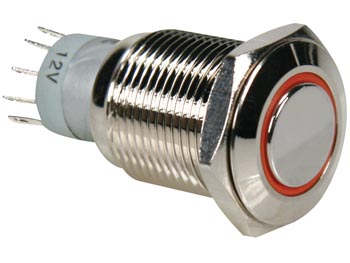

Singlee pole switch with change over contacts. The switch has a latching action and is fitted with a 12VDC LED which illuminates a coloured ring around the bezel. These switches are available in five colours.
Order Code 110+

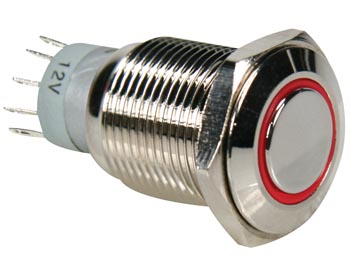

212-662SPDT Latching Push Switch - Red6.946.25
212-663SPDT Latching Push Switch - Orange6.115.50

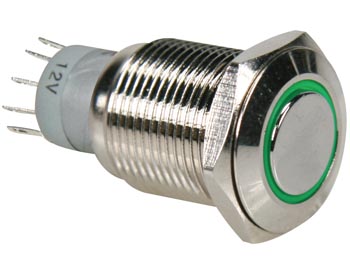

212-665SPDT Latching Push Switch - Green7.446.70

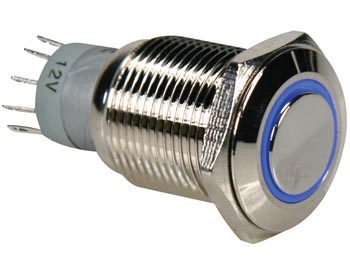

212-666SPDT Latching Push Switch - Blue6.836.15
212-669SPDT Latching Push Switch - White7.346.61



Single Pole Change Over Push SwitchOrange Push Button SwitchGreen Illuminated SwitchBlue LED Push Button SwitchSPDT Latching Switch
Specifications:
Switch ActionLatching
Contact ArrangementSPDT
ConnectionSolder
Rating0.5A/230VAC
IP RatingIP40/IP65
Panel Cut out16mmØ
LED Supply12VDC
MaterialNickel Plated Brass
Dimensions

Single pole switch with change over contacts, the button is slightly raised from the switch body even when fully depressed. The switch has a latching action and is fitted with a 12VDC LED which illuminates a coloured ring around the bezel. These switches are available in five colours.
Order Code 110+

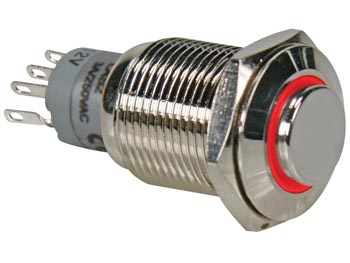

212-672SPDT Latching Push Switch - Raised Button Red6.806.12

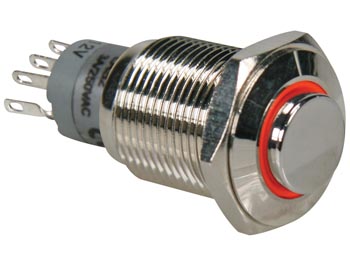

212-673SPDT Latching Push Switch - Raised Button Orange6.265.63

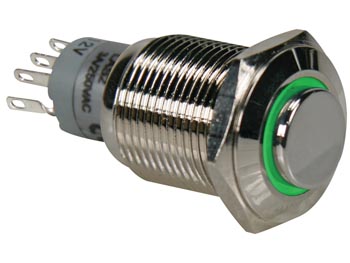

212-675SPDT Latching Push Switch - Raised Button Green6.786.11
212-676SPDT Latching Push Switch - Raised Button Blue7.346.61

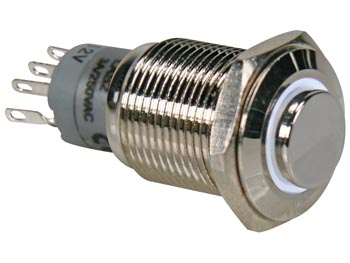

212-679SPDT Latching Push Switch - Raised Button White7.546.78
