Temperature Controlled Soldering Station
Specifications:
Model VTSS4
Soldering Iron 240Vac
Bit Size 1.2mm
Temperature 150 - 450ºC
Supply 240Vac
Dimensions mm
Weight 590g
Subject to technical modifications.
VTSS4 is a general purpose temperature controlled soldering, which has adjustable temperature range from 150 - 450ºC. Adjustment is made by means of a rotary potentiometer located on the front of the soldering irons base. Supplied with sponge and stand.
Rotary Control for Temperature Setting with coloured Scale
Order Code   each
167-520 Mains Temperature Controlled Soldering Station 15.95

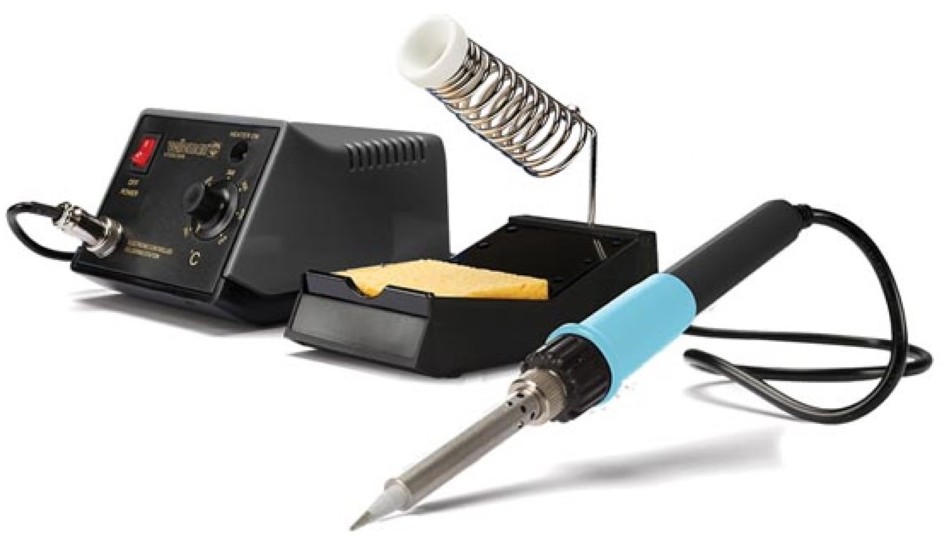

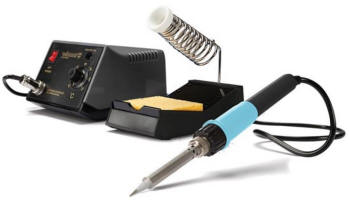

48W Soldering Iron Station with Rotary Temperature Setting Control
Specifications:
Model VTSSC50N
Soldering Iron  24V
Bit Size 1.0mm
Temperature 150 - 450ºC
Supply 240Vac
Dimensions 160 x 120 x 95mm
Weight 1.85g
Subject to technical modifications.
VTSSC50N Temperature controlled 48W soldering station, which has adjustable temperature range from 150 - 450ºC. The adjustment is made by means of a rotary potentiometer with graduated scale. Supplied with sponge and separate stand.
Order Code   each
167-510 48W Soldering Iron Station with Rotary Temperature Setting Control 29.99



48W Soldering Iron Station with Slide Temperature Setting Control
Specifications:
Model VTSSC10N
Soldering Iron  24V
Bit Size 1.6mm
Temperature 150 - 420ºC
Supply 240Vac
Dimensions 120 x 170 x 90mm
Weight 1.75kg
Subject to technical modifications.
VTSSC10N Temperature controlled 48W soldering station, temperature range from 150 - 450ºC. The adjustment is made by means of a slider potentiometer with graduated scale. Supplied with sponge and integral stand.
Order Code   each
167-522 48W Soldering Iron Station with Slide Temperature Setting Control 33.86



48W Soldering Iron Station with LED Temperature Indication
Specifications:
Model VTSSC20N
Soldering Iron  24V
Bit Size 1.6mm
Temperature 150 - 420ºC
Supply 240Vac
Dimensions 120 x 170 x 90mm
Weight 1.75g
Subject to technical modifications.
VTSSC20N is a 48W temperature controlled soldering station with ceramic heating element. Adjustable temperature range from 150 - 450ºC. The adjustment is made by means of a rotary potentiometer with LED bar-graph indicator. Supplied with sponge and stand.
Order Code   each
167-524 48W Soldering Iron Station with LED Temperature Indication 35.70

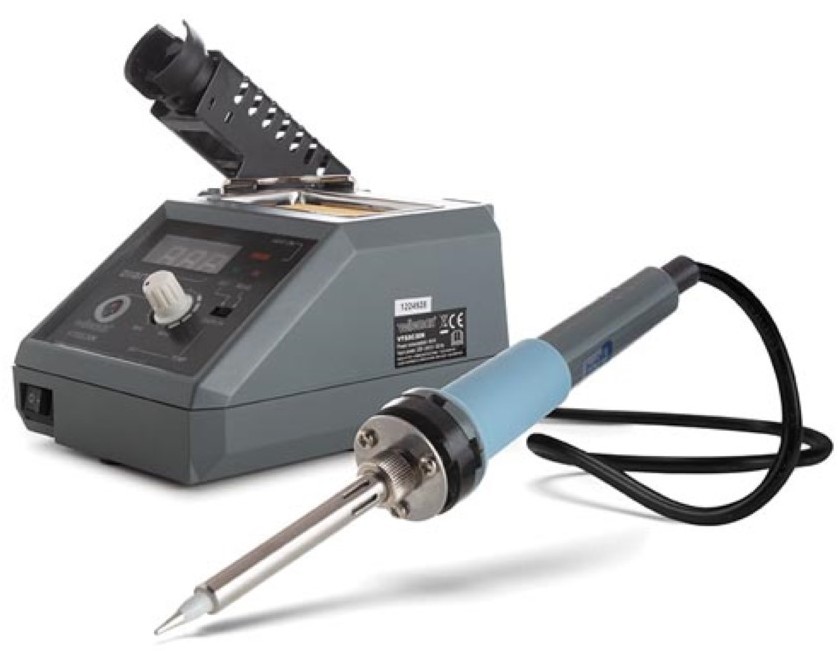

48W Soldering Iron Station with LED Display
Specifications:
Model VTSSC30N
Soldering Iron  24V
Bit Size 1.6mm
Temperature 050 - 420ºC
Supply 240Vac
Dimensions 120 x 170 x 90mm
Weight 1.75kg
Subject to technical modifications.
VTSSC30N is a 48W temperature controlled soldering station with ceramic heating element. Adjustable temperature range from 150 - 450ºC. The adjustment is made by means of a rotary potentiometer with LED temperature display. Supplied with sponge and stand.
Order Code   each
167-526 48W Soldering Iron Station with LED Display 42.46



48W Soldering Iron Station with LCD Display
Specifications:
Model VTSSC40N
Soldering Iron  24V AC
Bit Size 1.6mm
Temperature 150 - 450ºC
Supply 240Vac
Dimensions 185 x 100 x 170mm
Weight 1.58kg
Subject to technical modifications.
VTSSC40N is a 48W temperature controlled soldering station with ceramic heating element. Adjustable temperature range from 150 - 450ºC. The adjustment is made by means of two push switches, temperature displayed on a liquid crystal display. Supplied with sponge and stand.
Order Code   each
167-528 48W Soldering Iron Station with LCD Display 49.32

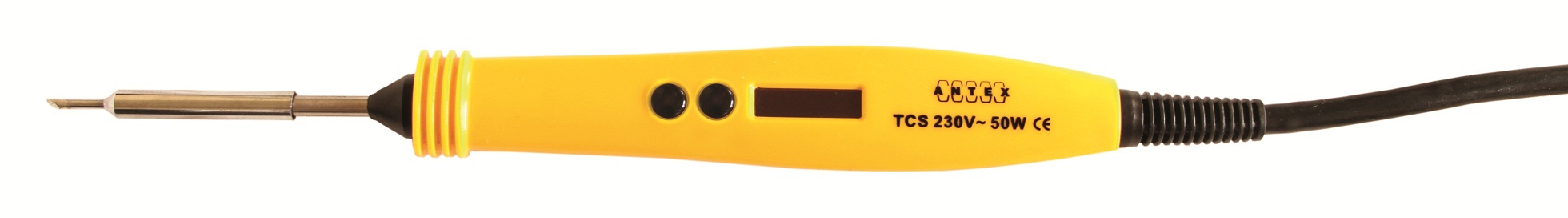

Antex TCS Soldering Iron
Specifications:
Model TCS50
Bit Size 2.3mm
Temperature 200 - 450ºC
Leakage Current 5.0µA
Power 50 Watts
Supply 240Vac
Subject to technical modifications.
The Antex TCS50 temperature controlled soldering iron, adjustment is made by using a small screwdriver in the side of the handle. The range is adjustable from 200-450°C. There are several sizes of replacement Bits available and a choice of PVC or Silicon cable.
Order Code   each
164-130 Antex TCS 50W 240v Temperature Controlled Soldering Iron PVC cable 42.81
164-135 Antex TCS 50W 240v Temperature Controlled Soldering Iron Silicon Cable 44.58



Professional Temperature Soldering Station with Bar-graph Indication
Specifications:
Model VTSS20
Soldering Iron 24Vdc 48W
Bit Size 3.0mm
Temperature 150 - 420ºC
Supply 240Vac 54VA
Dimensions 120 x 95 x 180mm
Subject to technical modifications.
The VTSS20 is a professional temperature controlled soldering station. It features electronic temperature control selected by a rotary control and indicated with a LED Bar graph. The Temperature range is adjustable from 150 - 420°C and are several sizes of replacement Bits available. The soldering iron station is housed in a robust plastic case and supplied with stand and sponge.
Rotary Control for Temperature Setting with Bar-Graph Display
Order Code   each
167-540 Professional Temperature Soldering Station with Bar-graph Indication 49.00



Professional Soldering Station with Digital Display
Specifications:
Model VTSS30
Soldering Iron 24Vdc 48W
Bit Size 3.0mm
Temperature 170 - 480ºC
Supply 240Vac 54VA
Dimensions 120 x 95 x 180mm
Subject to technical modifications.
The VTSS30 is a professional temperature controlled soldering iron. With electronic temperature control selected by a rotary control and indicated on a digital display LED display. The range is adjustable from 170 - 480°C. There are several sizes of replacement Bits available. The VTSS30 soldering iron station is housed in a robust plastic case.
Rotary Control for Temperature Setting with LED Indication
Order Code   each
167-570 Professional Soldering Station with Digital Display 52.23



Antex 660TC Soldering Station
Specifications:
Model 660TC
Soldering Iron 24Vdc 50W
Bit Size 2.3mm
Temperature 65 - 450ºC
Supply 240Vac
Dimensions mm
Subject to technical modifications.
Antex 660TC Temperature controlled soldering station features electronic temperature control selected by a thumb wheel control. The selected temperature is indicated when the LED changes from continuous to flashing. The range is adjustable from 65-450°C. There are several sizes of replacement Bits available. The soldering iron station is housed in a robust plastic case and comes with separate stand and sponge.
Thumbwheel Temperature Adjustment
Order Code   each
164-300 Antex 660TC Temperature Controlled Soldering Station 102.46
