Speaker Cabinets

Speakon (Type) connectors
Rigid steel grille and easy-carry handle
Multiple mounting points

Titanium compression driver
Lightweight moulded enclosure
35mm internal pole-mounting

Specifications:
Tweeter	25mm
Woofer	10"
Impedance	8Ω
Power (RMS)	150 Watts
Frequency Response	50Hz - 20kHz
Sound Pressure Level (SPL)	95dB

Connection	2 x Speakon
Dimensions	320/180 x 470 x 260mm
Weight	6.4kg

Compact & lightweight speaker cabinet designed for multi-purpose sound reinforcement. These shockproof moulded enclosures feature M8/M6 fixing points, allowing them to be arrayed in various combinations to suit most applications from small halls to large nightclubs.

Order Code		Each

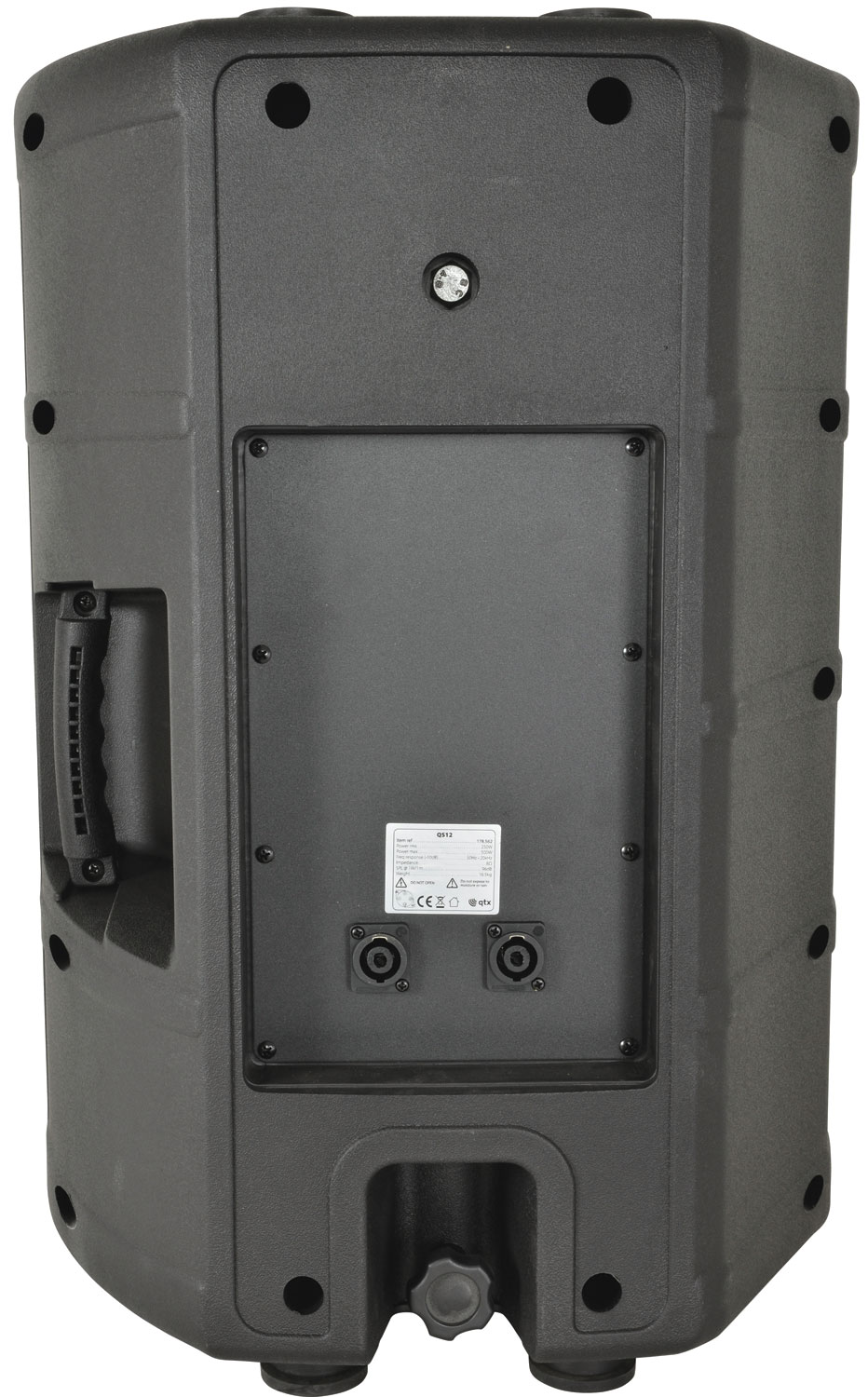

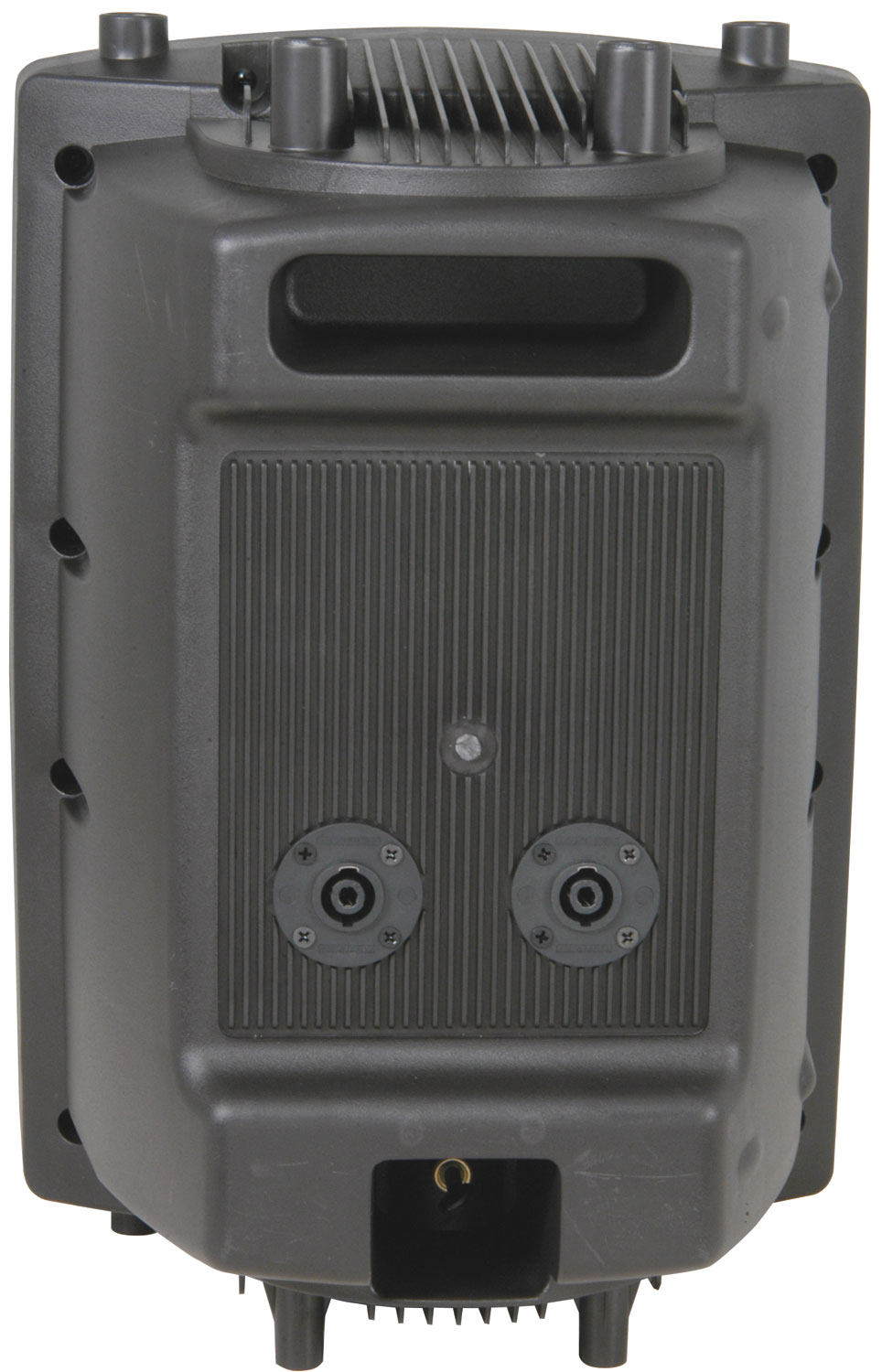

442-750	QTX QR 10" 150W Speaker Cabinet	73.11

2 x Speakon® NL4 sockets
Lightweight ABS enclosure
Crossover frequency 3kHz
Low impedance compression horn driver
M8 rigging points
Dispersion 105 x 55°

35mmØ top hat with locking screw
Trapezoidal design

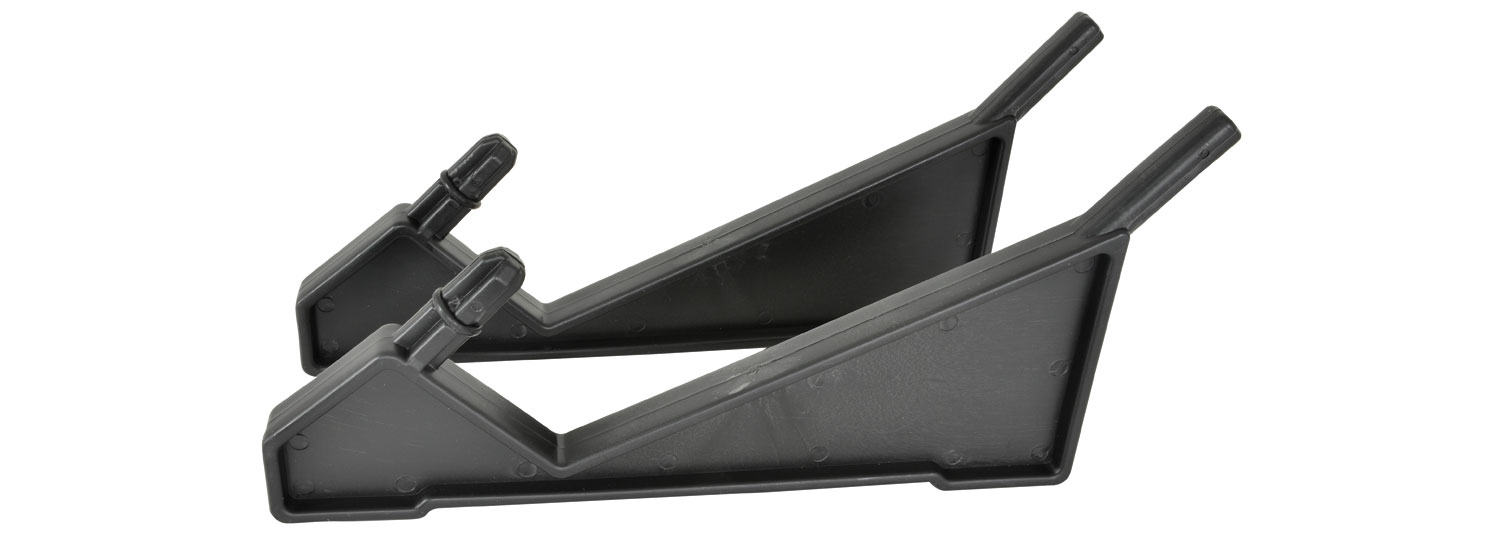

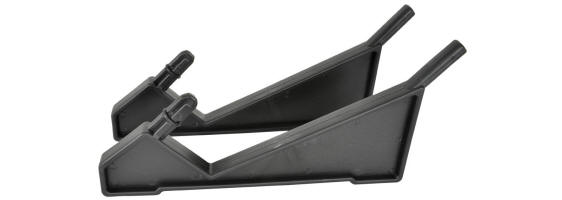

Supplied with stands for use as wedge monitor
Rigid steel grille
Easy-carry handle

Specifications:
Tweeter	25mm
Woofer	12"
Impedance	8Ω
Power (RMS)	250 Watts
Frequency Response	55Hz - 18kHz
Sound Pressure Level (SPL)	96dB

Connection	2 x Speakon NL4
Dimensions	595 x 420 x 320mm
Weight	16.5kg

Passive speaker cabinets with tough yet lightweight ABS enclosures, designed to satisfy the demands of the modern DJ or musician. Each enclosure has a trapezoidal design with easy-carry handle and 35mmØ top hat for stand mounting.

Order Code		Each
445-245	QTX QS 12" 250W Speaker Cabinet	118.30
