Active Speaker Cabinets

Active Speakers

Stylish and rugged design with IPX4 splash resistance
Connect to your smart device via Bluetooth
Wired microphone included
LED multicoloured light effect in grille
Media player with inbuilt FM radio, USB, Micro SD (TF) and AUX ports
6.3mm Microphone and Guitar jack sockets
Integrated smartphone/tablet holder
Internal rechargeable battery with up to 6 hours playback
Ideal for outdoor events, karaoke, house parties, kids' rooms and more

Specifications:
Input Channels
Microphone	¼" Jack
Line Input	3.5mm
USB
Guitar	¼" Jack
Bluetooth	Ver 5.0 +EDR
Main Output	8" Driver 20W RMS
FM Radio	87.5MHz~108MHz
Frequency Response	50Hz~18KHz
Charge Time	3 Hours
Battery Life	6 Hours
Power Supply	DC 5V/2A
Dimensions	400 x 290 x 203mm
Weight	3.08kg

Download Handbook >

Watch a Movie Clip >

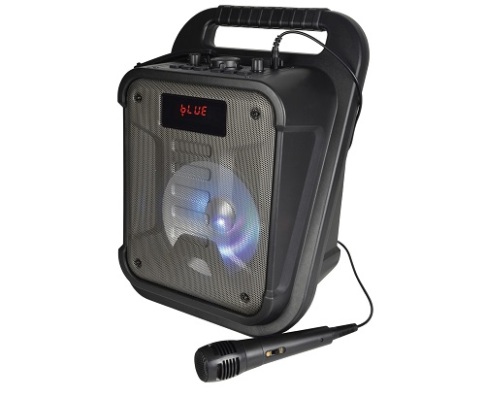

Make waves with the Effect Aqua, the splash resistant party speaker with multicolour LED light show. Perfect for karaoke kings and queens, simply connect the included microphone to showcase your talents and sing-along with your favourite tracks. Play your tunes wirelessly via Bluetooth from your smart device, use the inbuilt media ports or even FM radio. This speaker is light enough to be taken anywhere, even outdoors thanks to the internal rechargeable battery with up to 6 hours play time from a single charge.

Order Code		Each
442-614	QTX Effect Aqua: 20W Splashproof Bluetooth Party Speaker	71.25

2 x VHF handheld microphones included
Echo effect for microphones
Integral USB/SD/FM media player
Bluetooth receiver
Built-in trolley facility with retractable handle
Switchable Microphone 'voice-over' Function

Specifications:
Input Channels
Microphone ¼" Jack	1.5mV
Line Input RCA & 3.5mm	50mV
Guitar ¼" Jack
Equalisation
Low	± 15dB 60Hz
High	± 15dB 15kHz
Outputs
Main Output	80WRMS @4Ω
Record (Stereo) RCA	550mV/1kΩ
Main Mixer Section
Frequency Response	20Hz - 20kHz
THD	%
Signal to Nose Ratio (SNR)	dB
Digital Effects	Echo
Power Supply	230V~50Hz, 12V
Dimensions	590 x 375 x 325mm
Weight	12kg

Download Handbook >

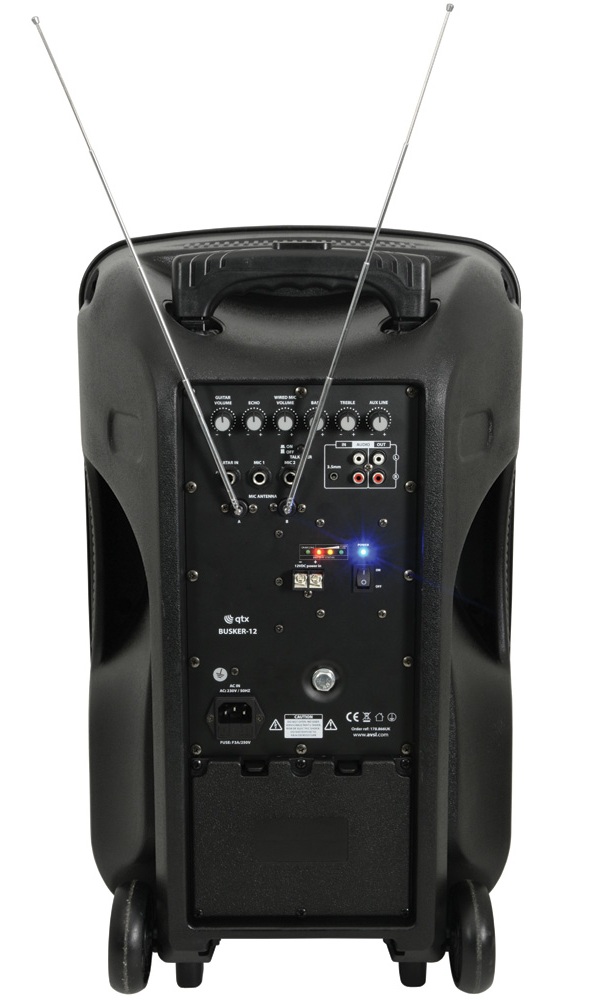

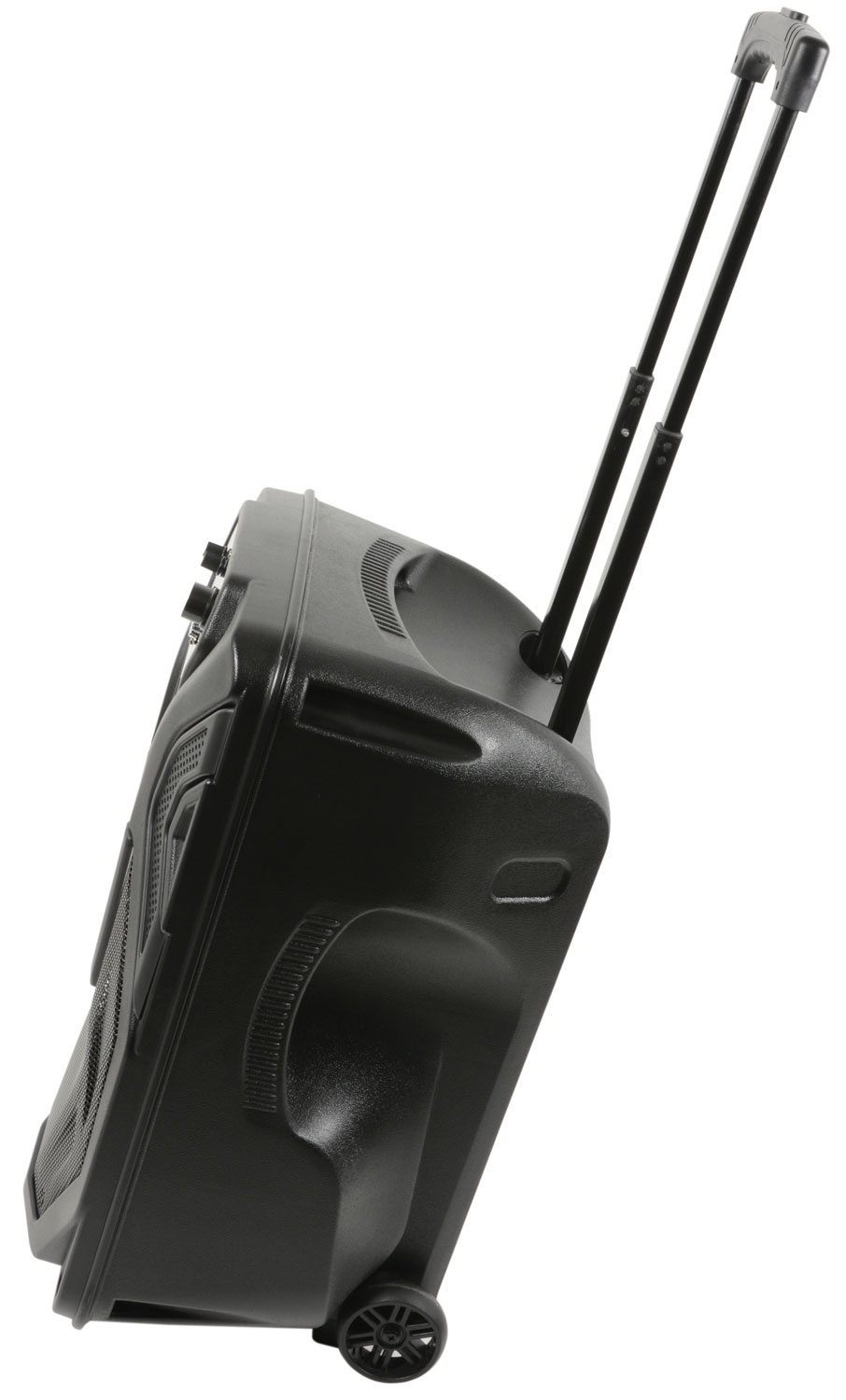

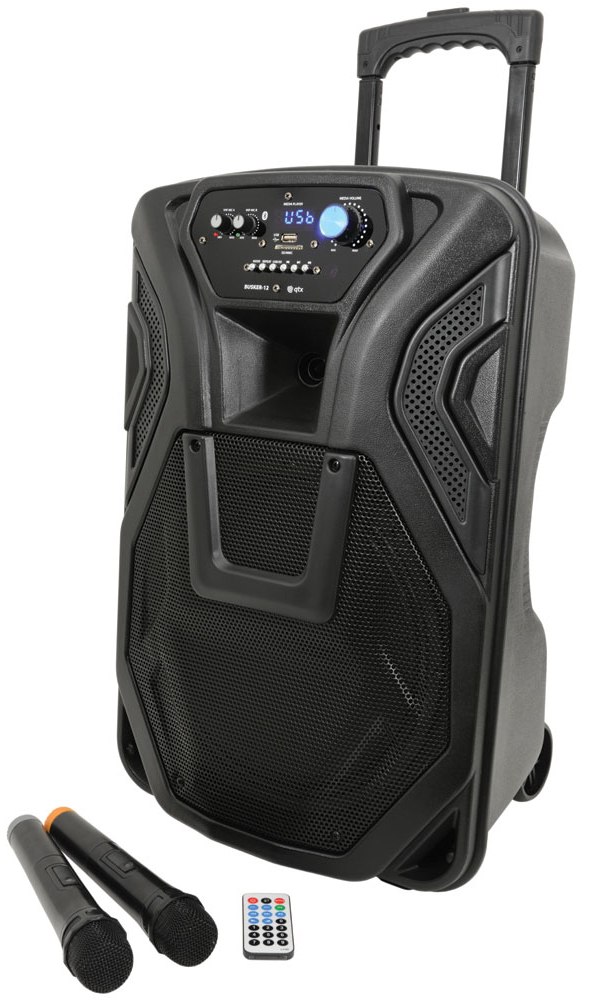

Complete portable PA unit in a sturdy cabinet with front mounted control panel. The built-in amplifier operates from mains or internal rechargeable battery to power a main driver and compression driven horn unit. Handheld VHF (174.1MHz + 175.0MHz) microphones are included with 2 further wired mic inputs at the rear, auxiliary line input, musical instrument input and Bluetooth receiver. Internal audio source is provided by an integral USB/SD/FM media player. The cabinet is fitted with a carrying handle and 35mm pole mount and a retractable trolley handle and rear wheels provide easy portability.

Order Code		Each
442-866	QTX Busker PA with VHF Mics, Media Player & Bluetooth®	200.94

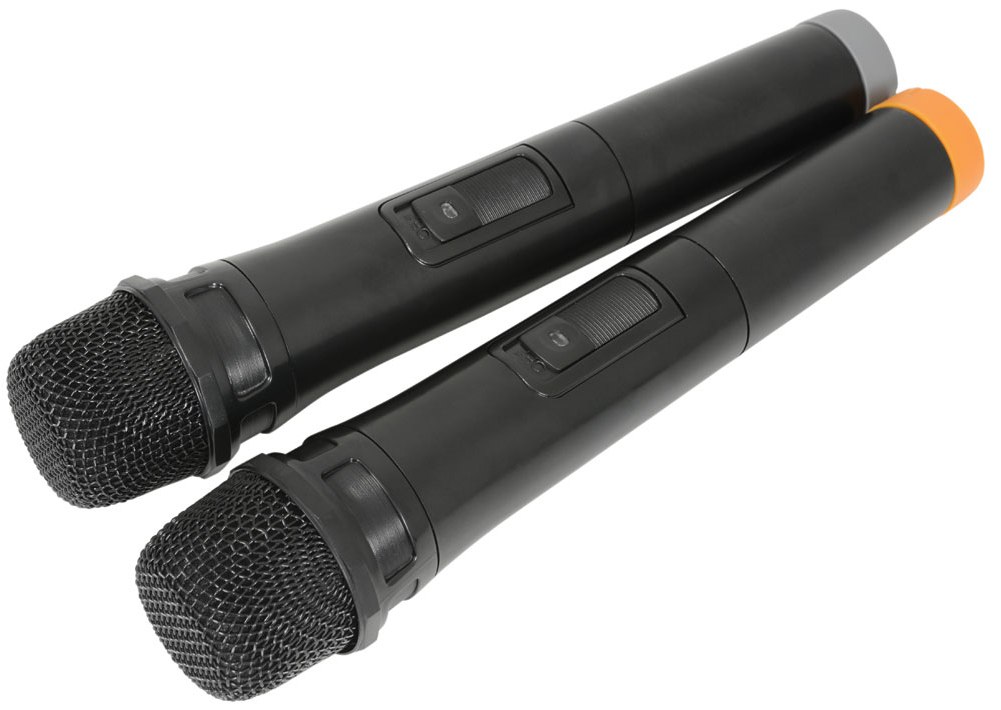

2 x VHF handheld microphones included
Echo effect for microphones
Integral USB/SD/FM media player
Bluetooth receiver
Built-in trolley facility with retractable handle
Switchable Microphone 'voice-over' Function

Specifications:
Input Channels
Microphone ¼" Jack	1.5mV
Line Input RCA & 3.5mm	50mV
Guitar ¼" Jack
Equalisation
Low	± 15dB 60Hz
High	± 15dB 15kHz
Outputs
Main Output	80WRMS @4Ω
Record (Stereo) RCA	550mV/1kΩ
Main Mixer Section
Frequency Response	50Hz - 16kHz
THD	%
Signal to Nose Ratio (SNR)	dB
Digital Effects	Echo
Power Supply	230V~50Hz, 12V
Dimensions	720 x 470 x 450mm
Weight	14.5kg

Download Handbook >

Order Code		Each

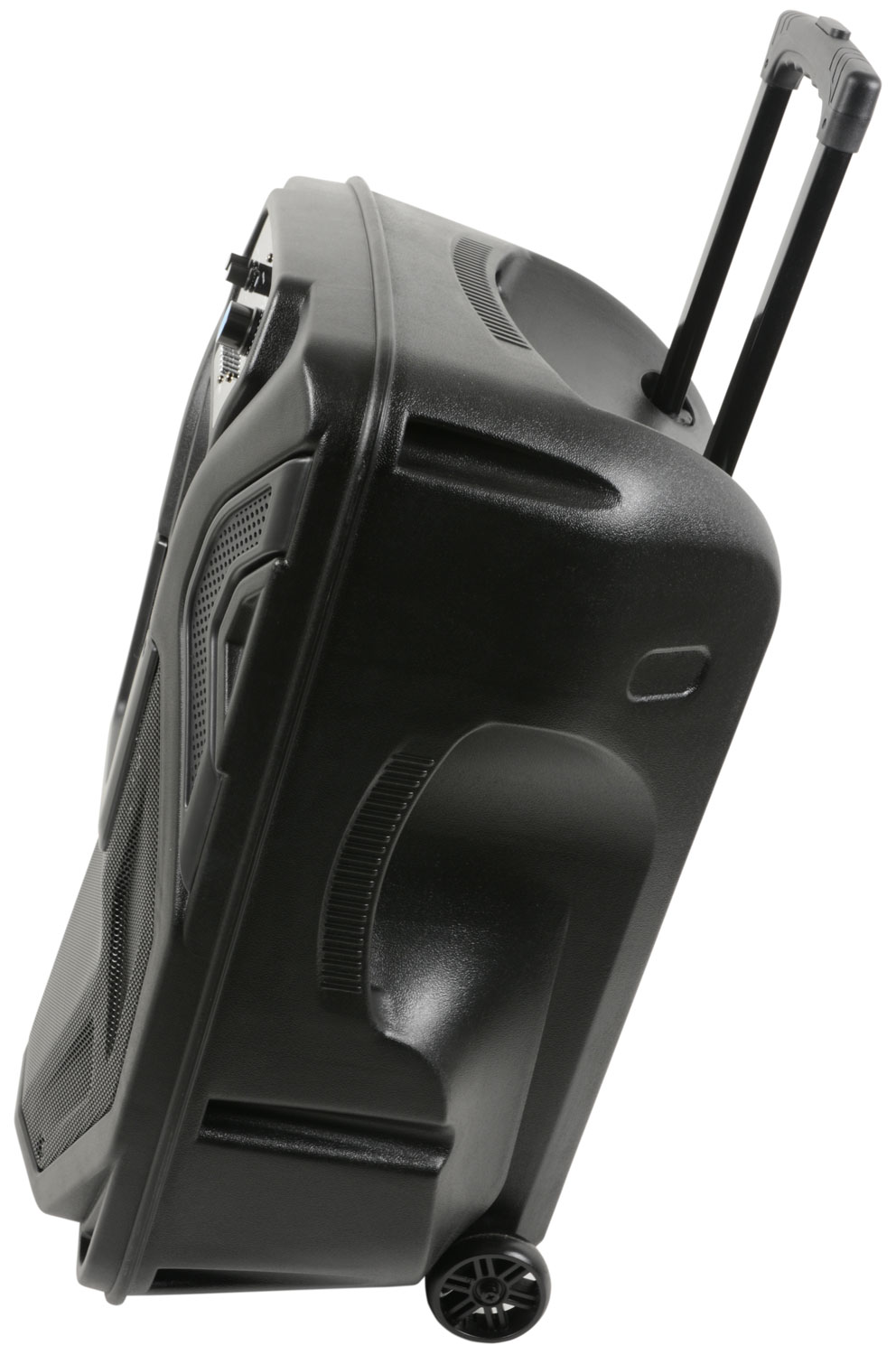

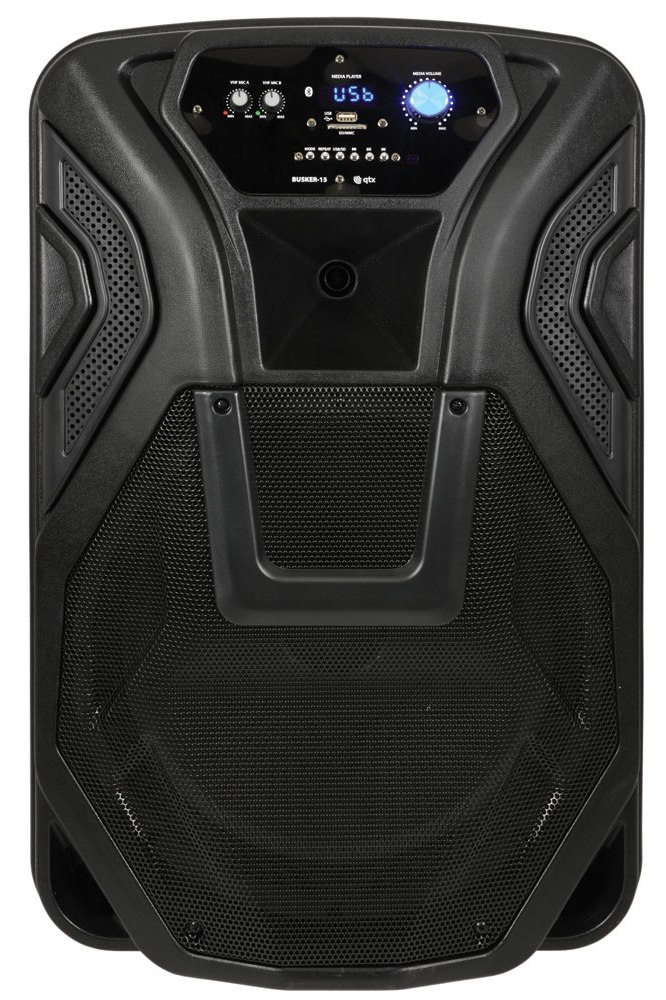

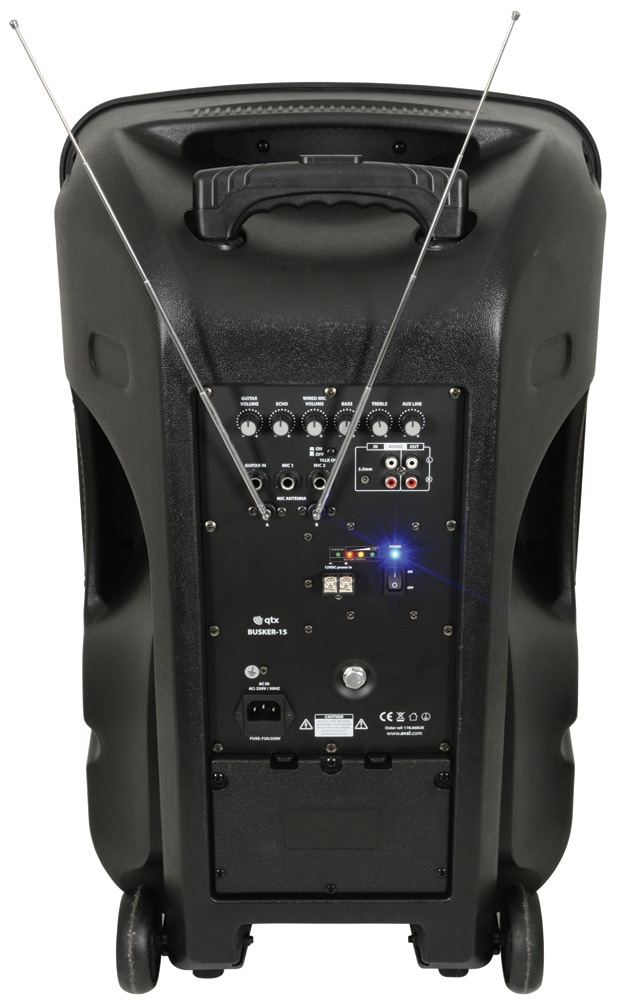

442-868	QTX Busker 15 PA with VHF Microphones, Media Player & Bluetooth®	256.78

Specifications:
System	15" Speaker

Line Input XLR Socket	600Ω Balanced
Line Output XLR Socket	1V/16kΩ Balanced
Amplifier	150WRMS
Frequency Response	40Hz - 150Hz
Sound Pressure Level	dB
Top Hat 36mmØ	Yes
Power Supply	230V~50Hz
Dimensions	515 x 420 x 615mm
Weight	22kg

Download Handbook >

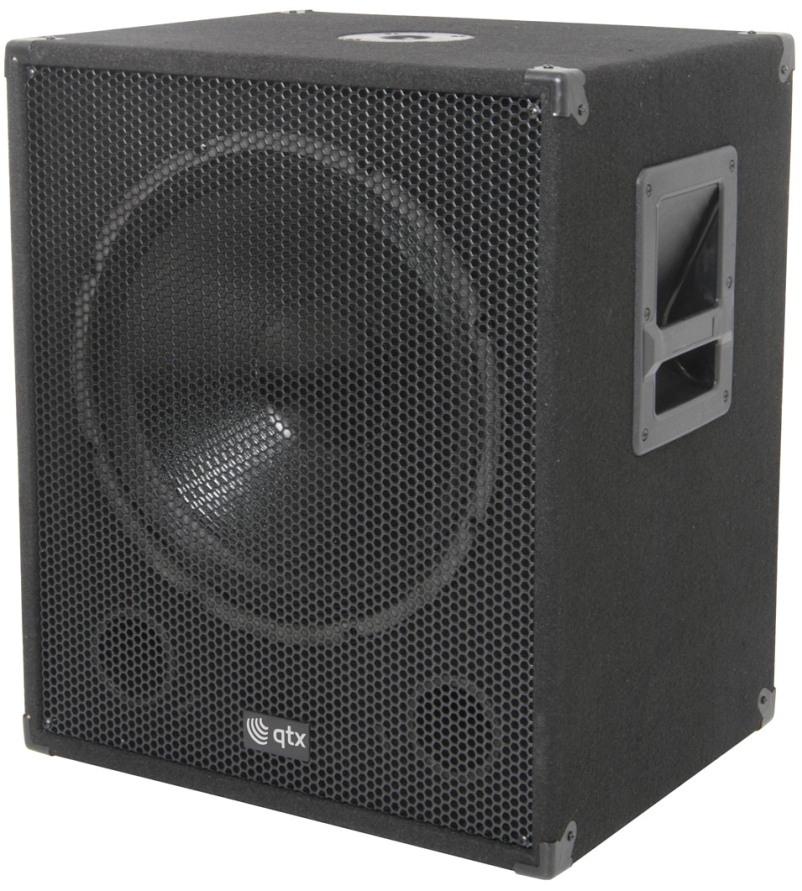

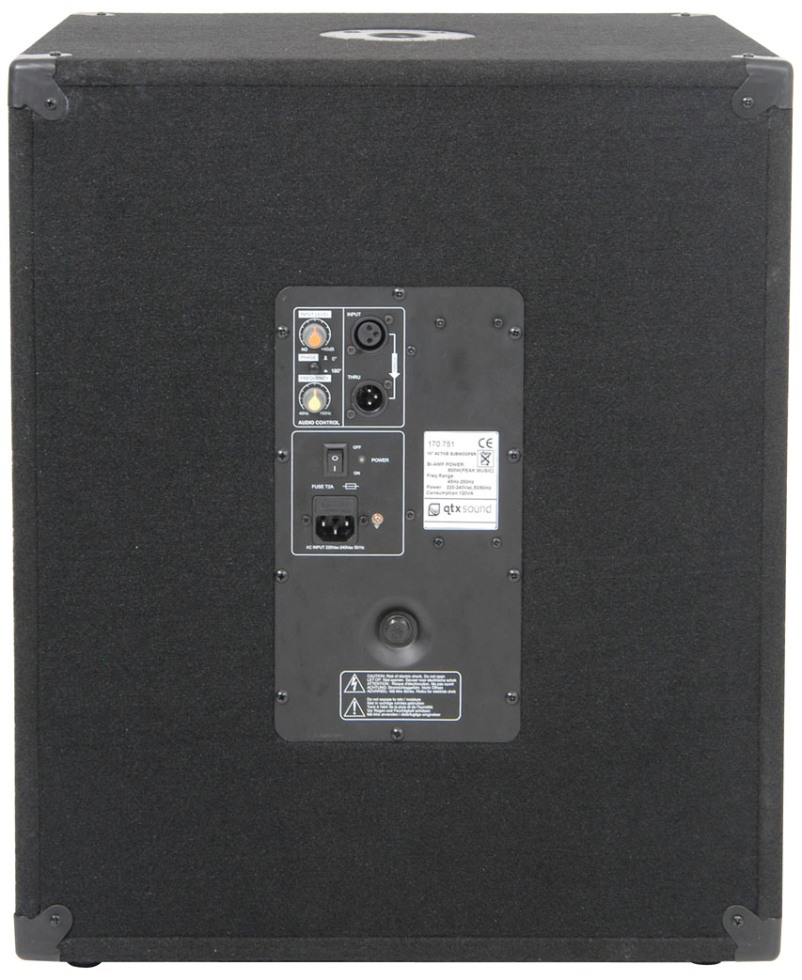

The QT15SA is an active 15" subwoofer with integral amplifier and adjustable low pass filter in a rugged, carpet covered wooden cabinet with steel grill. This ideal for use with TBX10, QS12 and QS15 full range cabinets.
