Specification Features:

• I²C controlled via K8000
• Communication address of the card (from 0 to 15) selectable via DIP-switches on the PC (connect up to 4 x K8005 cards with one K8000 card)
• Adjustable drive speed
• Programmable in Turbo Pascal for DOS, Quick Basic and Visual Basic (Win95/98/ME)
• Emergency stop can be sent to one or all cards
• Power supply: 7 to 25VDC or AC / 1.5A (maximum current depends of the motor type)

Transformer

Case

G386

Dimensions (PCB)

100 x 90mm

Weight

kg

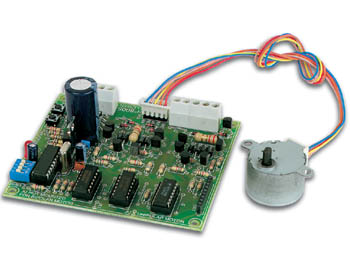

For bi- and unipolar motors (maximum 1A). Easy to connect with K8000. High precision possible (up to 0.9°, or even more when using a motor with reduction). While the motor turns you can simultaneously check the status of switches using K8000, or drive another motor. You can always give an emergency stop signal. Test program included. Manual test buttons to test the card without K8000 interface. Can be used in every application where positioning is needed (for example a plotter, printer). High precision motor included (12V). Alternative stepper motors are also available.

Additional software to up grade and improve this product is available from our download section on this website.
