Velleman 2-Channel IR Remote Receiver Mini kit Velleman Kits

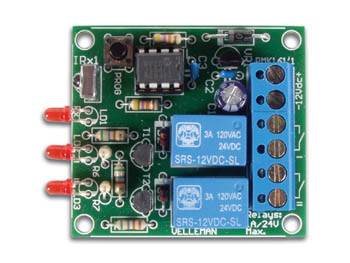

2-Channel IR Remote Receiver Mini kit

Specification Features:

  • Two channels with relay output (24VAC/DC 1A max.)
  • Ultra compact
  • Channel and reception indication through LED's
  • Toggle / pulse selection for each channel
  • Learn mode for channel ID
  • All settings are stored in EEPROM
  • Compatible with most Velleman Kit IR remotes: MK162, K8051, K8049, VM121 and VM191
  • Power supply: 12VDC
  • Power consumption: 75mA max.

Read the fully Illustrated Assembly Manual for WSRC161

PDF Download

Transformer



Case



Dimensions

45 x 50 x 15mm

Weight

kg



Order Code   Each
WSRC161 Whadda 2-Channel IR Remote Receiver Mini kit 9.82
