Velleman RGB LED Strip Colour Dimmer Module Velleman Kits

Velleman RGB Colour Dimmer with Remote

Velleman RGB Colour Dimmer Case

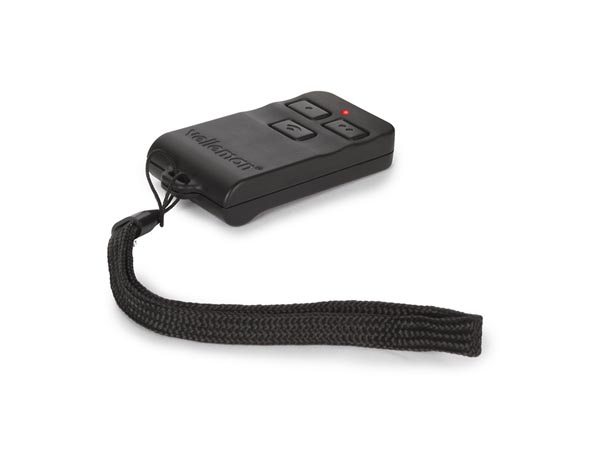

VM130T RF Transmitter

Specification Features:
  • Easy remote control operation
  • Hi power MOSFET outputs
  • Ideal for use with common anode LED RGB strips
  • 8 Transmitters auto-learning function
  • 7 colour tones
  • 10 dimming steps
  • TX/RX 433MHz operation
  • LED PWM freq: 300Hz
  • Power Supply 10 - 15Vdc 9A Max
  • Transmitter included
  • Additional RF Transmitter VM130T or VM166T
  • Optional USB to RF Transmitter K8074

Read the fully Illustrated Manual for VM162

 PDF Download

Power Supply

460-610

Case



Dimensions

80 x 70 x 23mm

Weight

kg

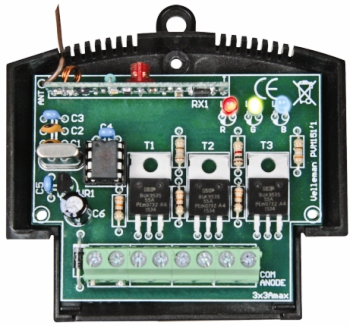

This module is designed to control LED's for display advertising and light effects. The three outputs drive high power Mosfet's which can each sink about 3A. Many colours and dimming combinations can be selected. Supplied with one VM130T key fob style transmitter

Order Code   1+
VM162 Velleman RGB LED Strip Colour Dimmer Module 30.86
