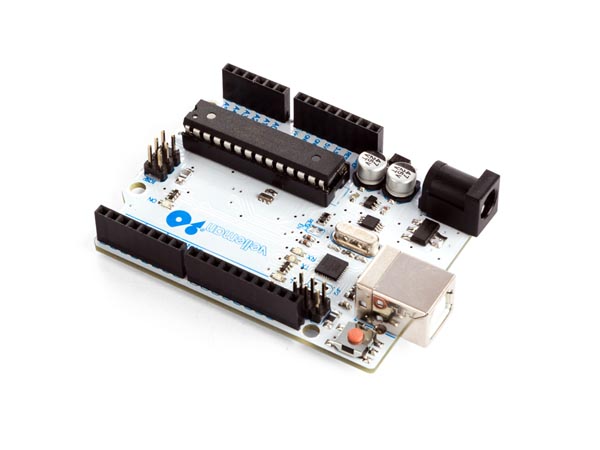

Velleman ATmega328 UNO Development Board

Specification Features:
  • microcontroller: ATmega328
  • operating voltage: 5 VDC
  • input voltage (recommended): 7-12 VDC
  • input voltage (limits): 6-20 VDC
  • digital I/O pins: 14 (of which 6 provide PWM output)
  • analogue input pins: 6
  • DC current per I/O pin: 40 mA
  • DC current for 3.3 V pin: 50 mA
  • flash memory: 32 kB (ATmega328) of which 0.5 kB used by bootloader
  • SRAM: 2 kB (ATmega328)
  • EEPROM: 1 kB (ATmega328)
  • clock speed: 16 MHz

Read the fully Illustrated Assembly Manual for VMA100

PDF Download Enclosure VMA506


Dimensions (PCB)

69 x 54mm

Weight

25g

The VMA100 (Arduino® Uno compatible) is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Order Code   Each
VMA100 Velleman ATmega328 UNO Development Board 12.50
