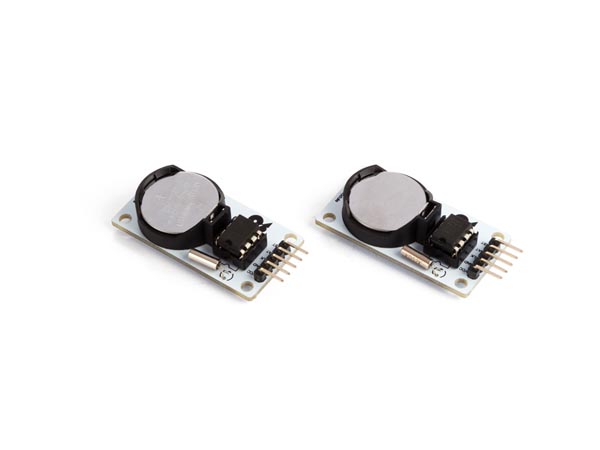

Velleman DS1302 RTC Module with BatteryVelleman Kits

Velleman DS1302 RTC Module with Battery

Specification Features:

  • manages all timekeeping functions: real-time clock counts seconds, minutes, hours, date of the month, month, day of the week, and year with leap year
  • 31 x 8 battery-backed general-purpose RAM
  • simple serial port interfaces to most microcontrollers: simple 3-wire interface
  • TTL compatible: VCC = 5 V
  • single-byte or multiple-byte (burst mode) data transfer for read or write of clock or RAM data
  • low power operation extends battery backup run time: 2.0 V to 5.5 V full operation
  • uses less than 300 nA at 2.0 V
  • temperature range: 0C to +70C

Read the fully Illustrated Assembly Manual for VMA301

PDF Download


Dimensions (PCB)

mm

Weight

g


The DS1302 trickle-charge timekeeping chip contains a real-time clock/calendar and 31 bytes of static RAM. It communicates with a microprocessor via a simple serial interface. The real-time clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator.
Order Code Each
VMA301Velleman DS1302 RTC Module with Battery (2 Pieces)4.20
