Velleman 5V Stepper Motor Driver and Motor Velleman Kits

Velleman 5V Stepper Motor Driver and Motor

Specification Features:
  • operating voltage: 5 VDC
  • steps / revolution: 64
  • controller: ULN2003
  • motor diameter: 28 mm
  • reduction ratio: 1:64
  • number of phases: 4
  • with LED step indicators
  • included: 5 V stepper motor
  • ULN2003 controller module
  • cable

Read the fully Illustrated Assembly Manual for WPI401

 PDF Download


Dimensions (PCB)

35 x 32 x 10mm

Weight

g

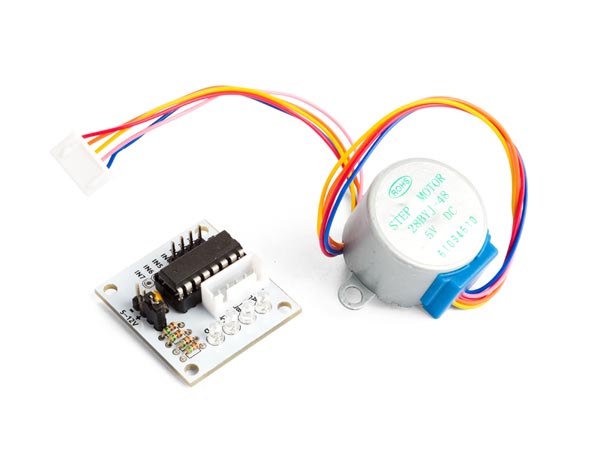

A small and versatile motor and driver set. This 5 VDC stepper motor controlled by the ULN2003 driver can be used with any Arduino® or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.
Order Code   Each
WPI401 Whadda 5V Stepper Motor Driver and Motor 5.64
