Cebek 12V Power Supply 2A



Cebek 12V Power Supply 2A

0 - 15 - 18v 36VA Open Transformer
Specifications:
Reference FE-11

Output 12VDC@2A
Ripple 7mV
Power Supply 230VAC
Dimensions
PCB 100 x 66 x 40mm
Transformer 75 x 58 x 62mm
Weight 1145g
Technical Information > Download the Handbook for full specifications and applications

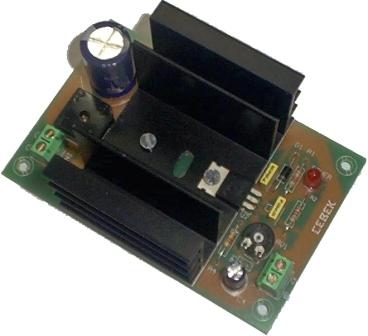

The Cebek FE-11 module is a single rail 12VDC stabilized power supply. It can deliver a maximum of 2A, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage, to allow for long cable runs and supply voltage variations. The FE-11 module includes connection terminals to facilitate assembly and LED to indicate its operating. The suitably rated transformer is also included in the price for this Cebek module.

Related Products::




Order Code   Each
FE-11 Cebek 12V Power Supply 2A 34.54
