Cebek 12V Power Supply 270mA



Cebek 12V Power Supply 270mA

Specifications:
Reference FE-113

Output 12VDC@270mA
Ripple 5mV
Power Supply 230VAC
Dimensions 75 x 65 x 35mm
Weight 266g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7564 >

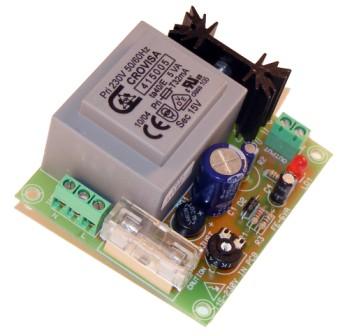

The Cebek FE-113 module is a single rail 12 Volt DC stabilized power supply. It can deliver a maximum of 270mA, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (10 - 15VDC), to allow for long cable runs and supply voltage variations. The FE-113 module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-113 Cebek 12V Power Supply 270mA 17.95
