Cebek 24V Power Supply 2A



Cebek 24V Power Supply 2A

Specifications:
Reference FE-137

Output 24VDC@2A
Ripple 5mV
Power Supply 230VAC
Dimensions 82 x 107 x 40mm
Weight 1.12kg
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7587 >

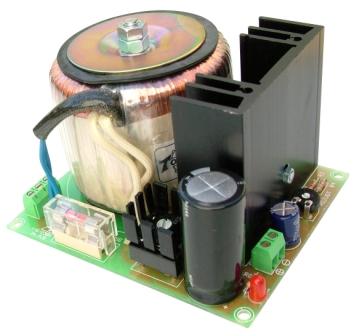

The Cebek FE-137 module is a single rail 24VDC stabilized power supply. It can deliver a maximum of 2A, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (23.3 - 27.5VDC), to allow for long cable runs and supply voltage variations. The FE-137 module has a small toroidal transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-137 Cebek 24V Power Supply 2A 40.40
