  Cebek Electronic Kits

Cebek 24V Power Supply 2A



Cebek 24V Power Supply 2A

0 - 24v 48VA Transformer
Specifications:
Reference FE-14

Output 24VDC@2A
Ripple 10mV
Power Supply 230VAC
Dimensions
PCB 100 x 66 x 40mm
Transformer 75 x 63 x 64mm
Weight 1303g
Technical Information > Download the Handbook for full specifications and applications

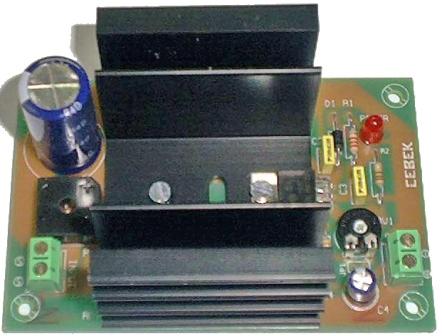

The Cebek FE-14 module is a single rail 24VDC stabilized power supply. It can deliver a maximum of 2A, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage, to allow for long cable runs and supply voltage variations. The FE-14 module includes connection terminals to facilitate assembly and LED to indicate its operating. The suitably rated transformer is also included in the price for this Cebek module.

Related Products::




Order Code   Each
FE-14 Cebek 24V Power Supply 2A 25.94
