Cebek 230VAC Delayed Start Timer 1 - 180 seconds



Cebek 230VAC Delayed Start Timer 1 - 180 seconds

Specifications:
Reference I-133
Range 1 - 180sec
Relay Output 5A
Consumption 1W
Power Supply 230VAC
Dimensions 84 x 55 x 33mm
Weight 170g
Technical Information > Download the Handbook for full specifications and applications

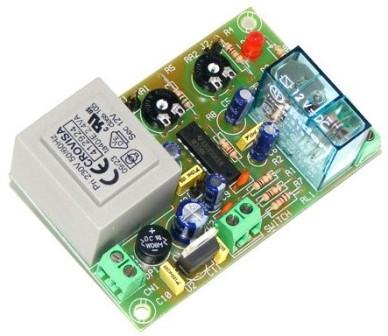

The Cebek I-133 module is a mains operated delayed start timer with relay output. The timer can be activated by the use a small push button switch. Once the timer has been started it will not switch the relay until a preset time¹ has elapsed, after this time the relay will operate and stay in this condition until the time² has elapsed. The I-133 module has two PCB mounted potentiometers to adjust the time settings. An LED gives visual indication of the condition of the relay.

Related Products::
Mains Filter C-8202



Order Code   Each
I-133 Cebek 230VAC Delayed Start Timer 1 - 180 seconds 18.93
