Cebek Digital Timer 1 - 99 seconds



Cebek Digital Timer 0.1 - 10 seconds
Specifications:
Reference I-25
Range 1 - 99sec
Relay Output 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 107 x 65 x 30mm
Weight 78g
Technical Information > Download the Handbook for full specifications and applications

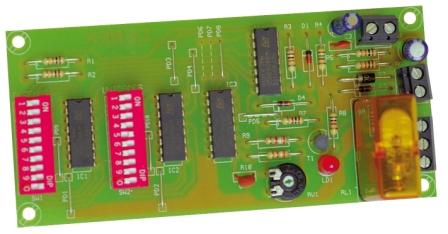

The Cebek I-25 is a very accurate timer module which uses a quartz oscillator and DIP switches to set and maintain a very stable time. It has a relay output with change over contacts. The timer is activated by the use of a push button switch. Once the timer has been started it will switch off, after the time you have set has elapsed. An LED gives visual indication of the relay.

Related Products::
Power Supply FE-103


Order Code   Each
I-25 Cebek Digital Timer 1 - 99 seconds 35.84
