 Cebek Electronic Kits

Cebek Digital Timer 0.1s - 497 days


Cebek I-301
Specifications:
ReferenceI-301
Range0.1s - 497 days
Relay OutputSPST 5A
Consumption65mA
Power Supply12 or 24VDC
Dimensions87 x 72 x 26mm
Weight54g
Technical Information >Download the Handbook for full specifications and applications
Watch a Movie Clip >

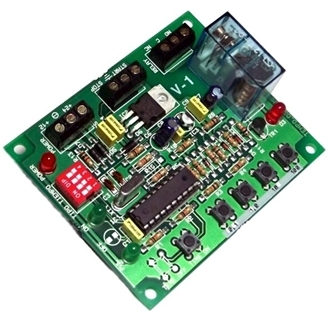

The Cebek I-301 is a digital timer which offers more accuracy and versatility over standard timers. The I-301 has 14 operating modes (See manual for full configuration). For example it can be set as a Monostable, Delayed Start and Start on Power up with each of these modes also allowing for reset and re-trigger applications

The timer settings are adjusted by the PCB mounted DIP switches and the timer is programmed via PCB mounted tactile switches. The Relay has LED to give visual indication when activated.


Related Products::
Power SupplyFE-103


Order Code Each
I-301Cebek Digital Timer 0.1s - 60 minutes25.64
