Cebek Digital Timer 0.1s - 497 days


Cebek I-303 Digital Timer Module
Specifications:
Reference I-303
Range 0.1s - 497 days
Relay Output SPST 5A
Consumption 65mA
Power Supply 12 or 24VDC
Dimensions 87 x 72 x 26mm
Weight 59g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7566 >
Watch a Movie Clip >

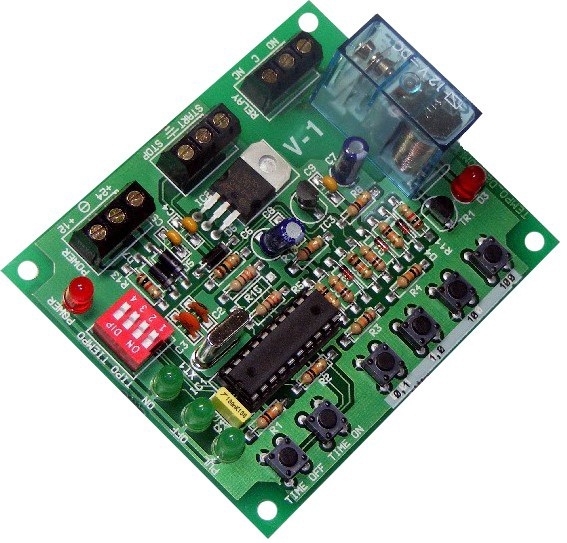

The Cebek I-303 is a digital timer which offers more accuracy and versatility over standard timers. The I-303 has 14 operating modes (See manual for full configuration). For example it can be set as a Monostable, Delayed Start and Start on Power up with each of these modes also allowing for reset and re-trigger application. The I-303 can be programmed with 2 time settings ie: Entry/Exit timer, Pause Pulse application.

The timer settings are adjusted by the PCB mounted DIP switches and the timer is programmed via PCB mounted tactile switches. The Relay has LED to give visual indication when activated.


Related Products::
Power Supply FE-103


Order Code   Each
I-303 Cebek Digital Timer 0.1s - 60 minutes 34.21
