  Cebek Electronic Kits

Cebek Delayed Start Timer 2 - 45 minutes



Cebek Delayed Start Timer 2 - 45 minutes
Specifications:
Reference I-37
Range 2 - 45min
Relay Output 5A
Consumption 70mA
Power Supply 12VDC
Dimensions 76 x 44 x 30mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

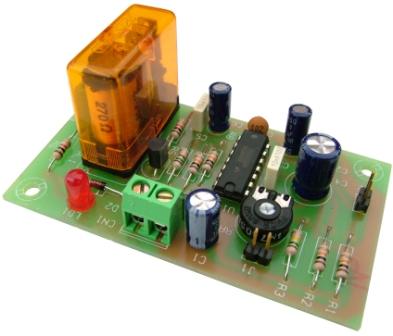

The Cebek I-37 module is a delayed start timer with relay output. The timer can be activated by 'powering up' the module or use a small push button switch. Once the timer has been started it will not switch the relay until a preset time has elapsed. The only way to de-energize the relay is to disconnect the module from the supply. An LED gives visual indication of the condition of the relay.

Related Products::
Power Supply FE-103



Order Code   Each
I-37 Cebek Delayed Start Timer 2 - 45 minutes 14.11
