Cebek Disconnection Timer 1 - 180 seconds



Cebek Disconnection Timer 1 - 180 seconds

Specifications:
ReferenceI-38
Range1 - 180sec
Relay Output5A
Consumption70mA
Power Supply12VDC
Dimensions76 x 44 x 30mm
Weight52g
Technical Information >Download the Handbook for full specifications and applications
Watch a Movie Clip >

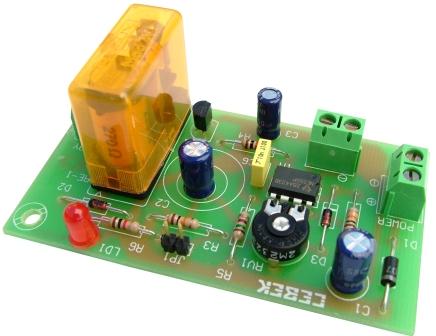

The Cebek I-38 module is a disconnection timer with a relay output. The timer is activated by the use a small push button switch. When the switch is first pressed the module will not respond. When you release 'Disconnect' the switch the module will start. Once the time has elapsed the relay will then operate. An LED gives visual indication of the condition of the relay.

Related Products::
Power SupplyFE-103



Order Code Each
I-38Cebek Disconnection Timer 1 - 180 seconds10.45
