Cebek Daily Timer 1 - 100 seconds



Cebek Daily Timer 1 - 100 seconds
Specifications:
Reference I-51
Range 1 - 100sec
Relay Output 3A
Consumption 90mA
Power Supply 12VDC
Dimensions 90 x 63 x 30mm
Weight 80g
Technical Information > Download the Handbook for full specifications and applications

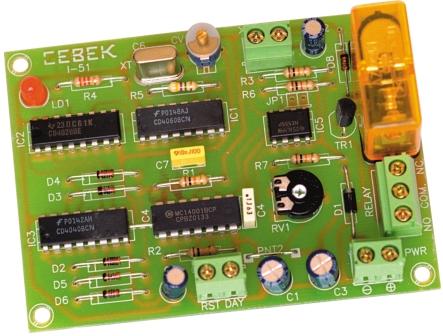

The Cebek I-51 is a daily timer module with relay output. Once the module is powered up every 24 hours the relay will be energised. The amount of time the relay is in an 'on' state can be adjusted by the on board potentiometer, this can be between 1 and 100 seconds. There is also a facility to reset the timer by connecting a push to make switch. The relay can also be reset by similar means. An LED gives visual indication of the relay.

Related Products::
Power Supply FE-103


Order Code   Each
I-51 Cebek Daily Timer 1 - 100 seconds 17.20
