Cebek 4-Way Stereo Input Selector



Cebek 4-Way Stereo Input Selector

Specifications:
Reference P-3
THD 0.03%
Gain 1
Crosstalk 70db
Maximum Input 8Vpp
Consumption 15mA
Power Supply 9 - 18VDC
Dimensions 82 x 75 x 40mm
Weight 72g
Technical Information > Download the Handbook for full specifications and applications

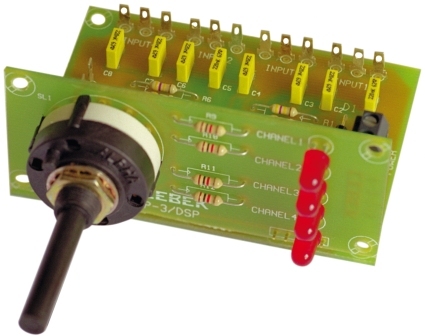

The P-3 is a stereo selector for 4 inputs - 1 output. Thanks to the incorporated rotary switch, you could select any of the 4 input signals.
Specially suited for applications requiring a small and low noise level. It includes protection against polarity inversion, LED's to indicate the channel, rotary selector switch and terminals to make for easy assembly.

Related Products::
Power Supply FE-2



Order Code   Each
P-3 Cebek 4-Way Stereo Input Selector 14.90
