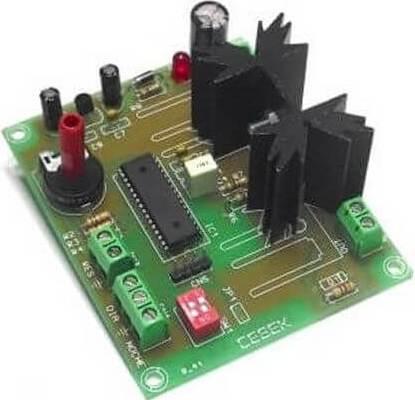

Cebek R-41 module is a
night to day and day to night dimmer for LED tape. There are four different time
settings you can select: 1 - 60 sec / 1 - 30 min / 30 - 60 min or 1 - 2 hours. The time
scale you require is achieved by a PCB mounted potentiometer and DIL switches. It has a rest function and the effect is activated by a change
over switch. When used in conjunction with
E305DIN1, it allows an automatic
switching between the day and the night, functions. When you turn the
power on or change the switch position from Day/Night or Night/Day the circuit
initiates the sequence effect. In day mode, the output starts off to
progressively increase until the maximum brightness level. In night mode, the
output begins to decrease progressively until the LED tape is off. In both
modes, after the ramp increases or decreases, the output will remain fixed in
that state. The reset switch allows ypu to restart the cycle again.
This
module will not control inductive loads or LED lamps. The Cebek R-41 dimmer module is
suitable for use in a child's bedrooms or aviaries. |
