Cebek Opto-Coupled Module with 4 Triacs


Cebek Opto-Coupled Module with 4 Triacs
Specifications:
Reference T-3
Input 3 - 24VDC
Triac Output (4) 500W@230VAC
Consumption 20mA
Power Supply 230VAC
Dimensions 107 x 122 x 20mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7589 >

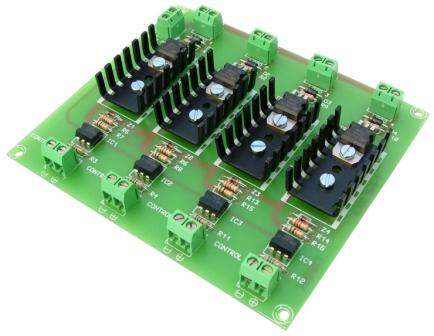

The Cebek T-3 is a an opto-coupled four-output interface with four triacs. When an voltage of between 3 and 24 is applied to the input the corresponding triac will conduct. Not suitable for inductive loads. It allows for easy interface between CMOS and TTL signals.

Related Products::




Order Code   Each
T-3 Cebek Opto-Coupled Module with 4 Triacs 22.56
