Cebek Opto Coupled 12v SPDT Relay


Cebek T-4 Relay Interface
Specifications:
Reference T-4
Input 3 - 24VDC (Minimum 5mA)
Relay Output SPDT 3A
Consumption 60mA
Power Supply 12VDC
Dimensions 31 x 72 x 30mm
Weight 58g
Technical Information > Download the Handbook for full specifications and applications

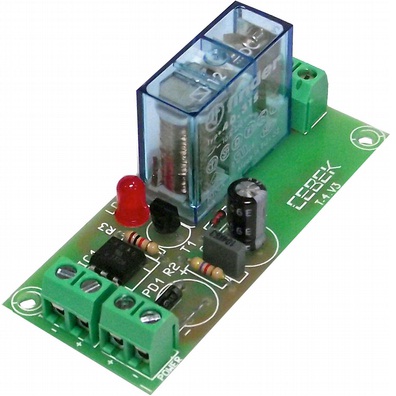

The Cebek T-4 is a an opto coupled interface with a single pole double throw relay output. The module is powered from a 12 volt supply and the relay is energised when a separate voltage of between 3 and 24 volts is applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::
Power Supply FE-2



Order Code   Each
T-4 Cebek Opto Coupled 12v Module with SPDT Relay Output 11.69
