Cebek Opto Coupled 24v Interface with 4 x SPDT Relays



Opto-Coupled 24v Interface with four SPDT Relays

Specifications:
Reference T-51
Input 3 - 24VDC (Minimum 5mA)
Relay Output (4) SPDT 3A
Consumption 120mA
Power Supply 24VDC
Dimensions 98 x 72 x 30mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

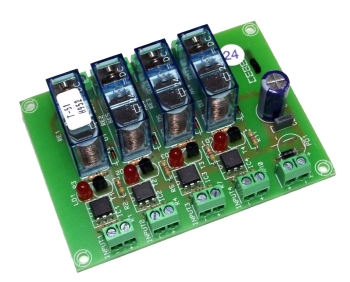

The Cebek T-51 is a an opto coupled interface which has four independent a single pole double throw relays. The module is powered from a 24 volt supply and the relays are energised when a separate voltage of between 3 and 24 volts are applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::
Power Supply FE-115


Order Code   Each
T-51 Cebek Opto-Coupled 24v Module with 4 SPDT Relays 29.22
