Cebek Opto Coupled 12v PCB with 8 x SPDT Relays

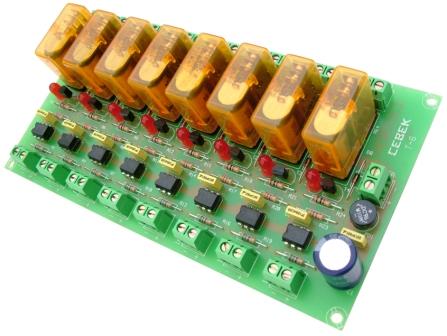

Cebek Opto-Coupled Module with 8 Relays
Specifications:
Reference T-6
Input 3 - 24VDC (Minimum 5mA)
Relay Output (8) SPDT 3A
Consumption 350mA
Power Supply 12VDC
Dimensions 155 x 72 x 30mm
Weight 270g
Technical Information > Download the Handbook for full specifications and applications
The Cebek T-6 is a an opto coupled interface which has eight independent a single pole double throw relays. The module is powered from a 12 volt supply and the relays are energised when a separate voltage of between 3 and 24 volts are applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::
Power Supply FE-2


Order Code   Each
T-6 Cebek Opto-Coupled 12v Module with 8 SPDT Relays 52.73
